SM 1963 4-00
1
Section 100-0070
REMOVAL/INSTALLATION
WARNING
To prevent personal injury and property
damage, be sure blocking materials and lifting
equipment are properly secured and of
adequate capacity to do the job safely.
The fenders and associated parts are secured by
normal hardware. Before loosening any fasteners,
secure the items with suitable lifting equipment. Care
should be exercised at all times to ensure no damage
to equipment or personnel.
MAINTENANCE
Periodically check mounting bolts and nuts and
tighten when necessary.
A check of the condition of the paint should be made
approximately twice a year. If painting is required,
thoroughly clean the areas to be painted. Apply a
primer coat of red oxide and then a finish coat of
polyurethane enamel.
To keep rust and corrosion to a minimum, periodic
painting of abrasions and other exposed metal areas
is highly recommended.
CHASSIS - Fenders and Mounting
SM - 2478
* * * *

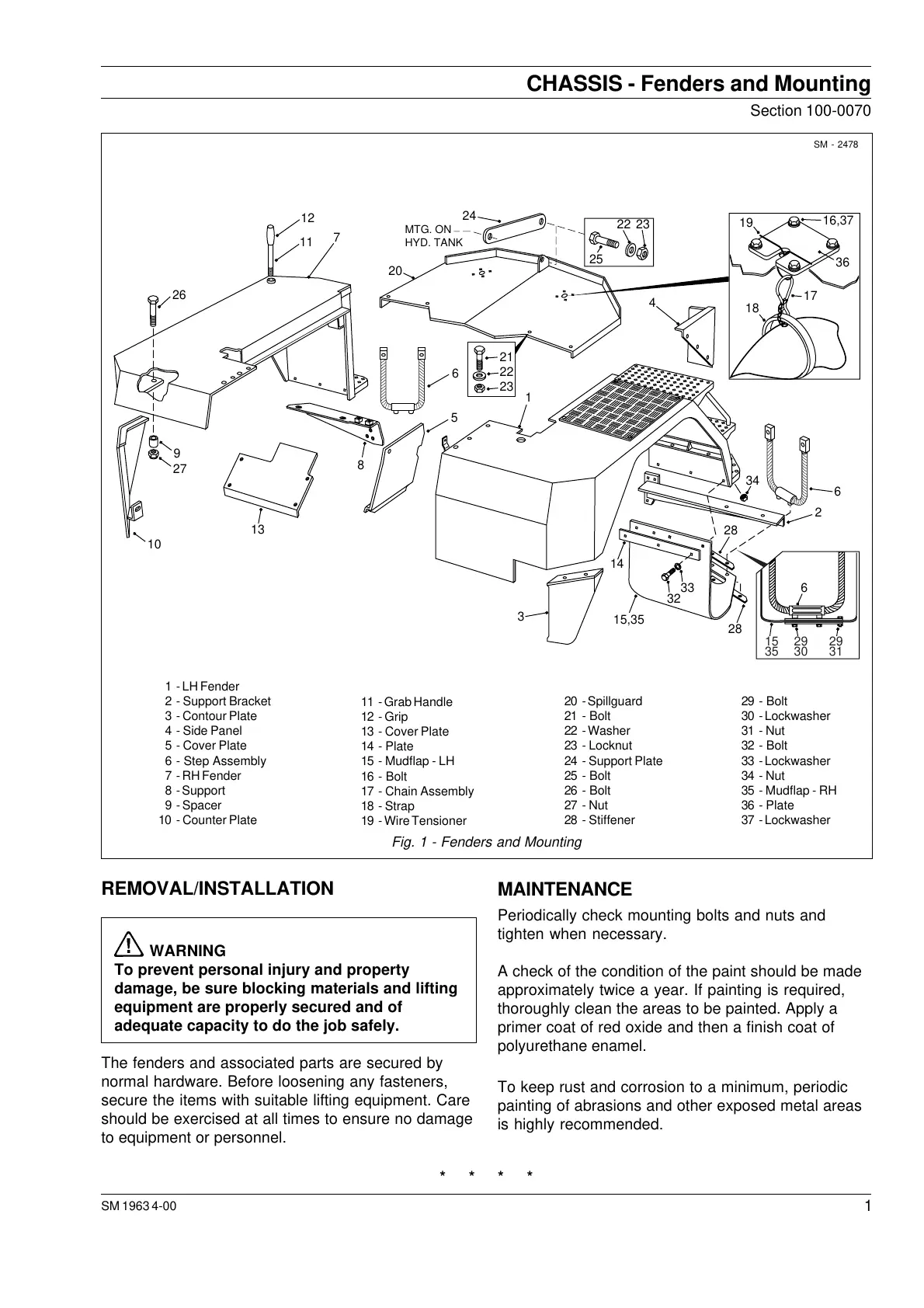

Fig. 1 - Fenders and Mounting
1 - LH Fender
2 - Support Bracket
3 - Contour Plate
4 - Side Panel
5 - Cover Plate
6 - Step Assembly
7 - RH Fender
8 - Support
9 - Spacer
10 - Counter Plate
11 - Grab Handle
12 - Grip
13 - Cover Plate
14 - Plate
15 - Mudflap - LH
16 - Bolt
17 - Chain Assembly
18 - Strap
19 - Wire Tensioner
20 - Spillguard
21 - Bolt
22 - Washer
23 - Locknut
24 - Support Plate
25 - Bolt
26 - Bolt
27 - Nut
28 - Stiffener
29 - Bolt
30 - Lockwasher
31 - Nut
32 - Bolt
33 - Lockwasher
34 - Nut
35 - Mudflap - RH
36 - Plate
37 - Lockwasher
19
17
18
36
16,37
7
1
11
12
3
6
14
2
6
6
21
22
23
5
8
13
25
22 23
4
26
10
27
9
15,35
32
33
28
28
34
24
20
MTG. ON
HYD. TANK
29
30
15
35
29
31
