Engine - Air Cleaner
Section 110-0050
SM - 2472
protection of the engine from airborne dirt. It protects
the engine from dirt admitted by a damaged primary
element (2), or dirt that might be dropped into air
cleaner assembly while changing primary element (2).
AIR CLEANER
Removal
Numbers in parentheses refer to Fig. 2.
1. Position the vehicle in a level work area, apply the
parking brake and switch off the engine.
2. Block all road wheels, place the steering lock bar in
the 'Locked' position and the battery master switch in
the 'Off' position.
3. Pull on handle to release hood catch and lift up the
hood.
4. Slacken clamps (8 & 9) and slide hose (7) clear of
the air cleaner assembly.
5. Using suitable lifting equipment, support the air
cleaner assembly and remove bolts (3) and nuts (4).
Remove air cleaner assembly from brackets (2).
6. Blank off air cleaner outlet and hose (7) end with
tape or cardboard to prevent entry of dirt.
7. If required, remove bolts (3), nuts (4) and
lockwashers (5) securing brackets (2) to the right hand
fender. Remove brackets (2).

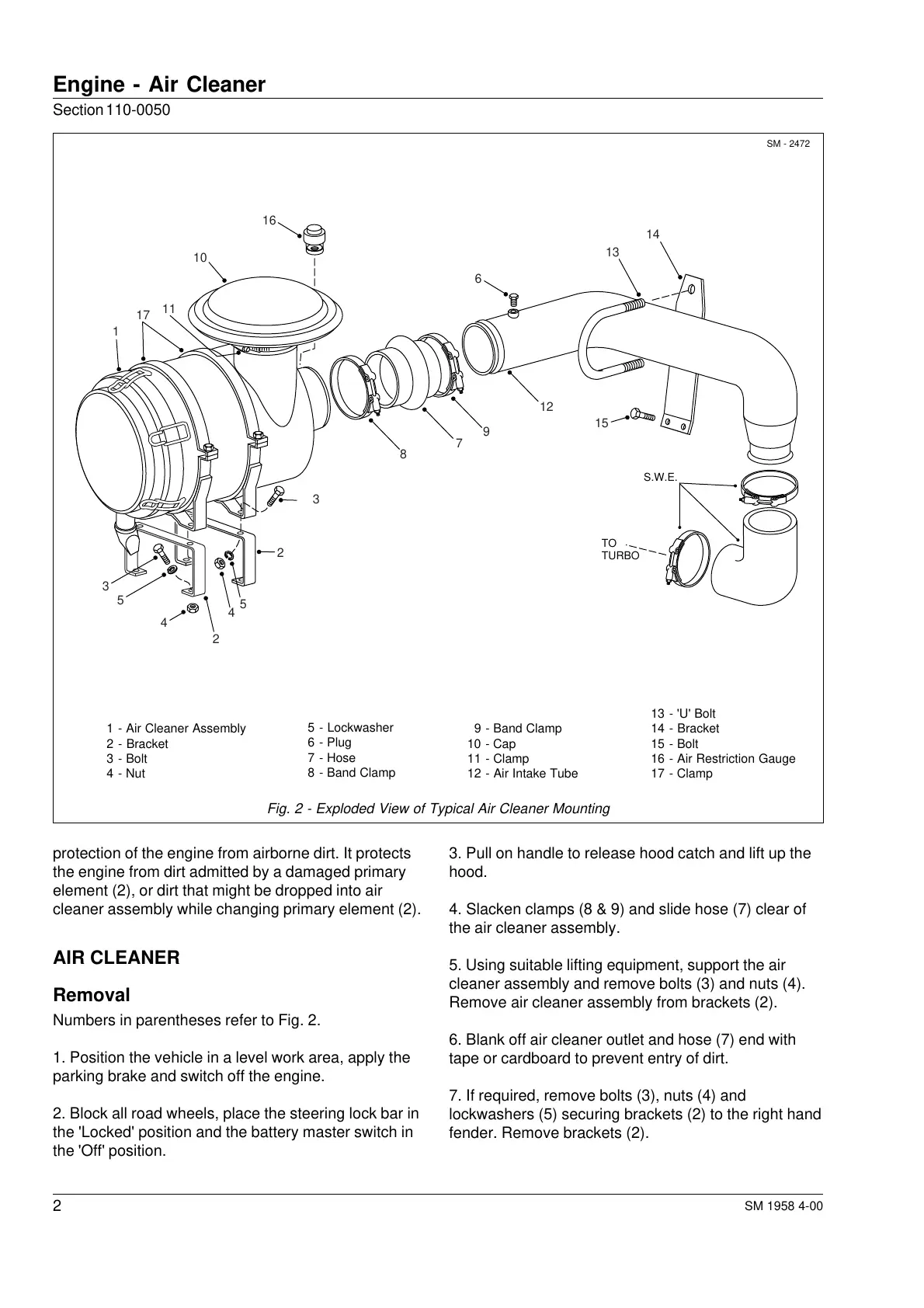

Fig. 2 - Exploded View of Typical Air Cleaner Mounting
1 - Air Cleaner Assembly
2 - Bracket
3 - Bolt
4 - Nut
5 - Lockwasher
6 - Plug
7 - Hose
8 - Band Clamp
13 - 'U' Bolt
14 - Bracket
15 - Bolt
16 - Air Restriction Gauge
17 - Clamp
9 - Band Clamp
10 - Cap
11 - Clamp
12 - Air Intake Tube
S.W.E.
TO
TURBO
16
6
10
17
11
1
3
5
4
2
2
4
5
3
8
7
9
12
13
14
15
