Section 000-0000
SM 1937 Rev 1 11-00
1
SM - 2476
ENGINE
Make/Model .....................................Cummins MTA11-C300
Type .......... Four cycle, low emission, direct injection diesel,
water-cooled, turbocharged and aftercooled.
Gross power at 2 100 rev/min....... 224 kW (300 hp, 304 PS)
Net power at 2 100 rev/min........... 214 kW (287 hp, 291 PS)
Note: Gross power rated to SAE J1995 Jun 90. Engine
emission meets USA EPA/CARB MOH 40 CFR 89 and
EU NRMM (non-road mobile machinery) directive.
Maximum Torque ... 1 376 Nm (1 015 lbf ft) at 1 300 rev/min
Number of cylinders/configuration ........................... 6, in line
Bore x Stroke ........................ 125 x 147 mm (4.92 x 5.79 in)
Total Displacement ................................. 10.8 litres (660 in³)
Air cleaner ..................................... Dry type, double element
Starting...................................................................... Electric
Maximum Speed (No load) ............................. 2 450 rev/min
Maximum Speed (Full load) ............................ 2 100 rev/min
Idle Speed ................................................... 675/750 rev/min
Safe Operating Angle ...................................43°/94% Grade
TRANSMISSION
Make/Model ..................................ZF 6WG 260 II Automatic
with manual override. The transmission assembly consists
of a torque converter close-coupled to a countershaft-type
gearbox with integral output transfer gearing. Automatic
shifting throughout the range, with kickdown feature. Lockup
action in all forward gears. A torque proportioning output
differential transmits drive permanently to front and rear
axles. This differential may be locked by the driver for use in
difficult traction conditions. Standard integral hydraulic
retarder which is automatically operated should the engine

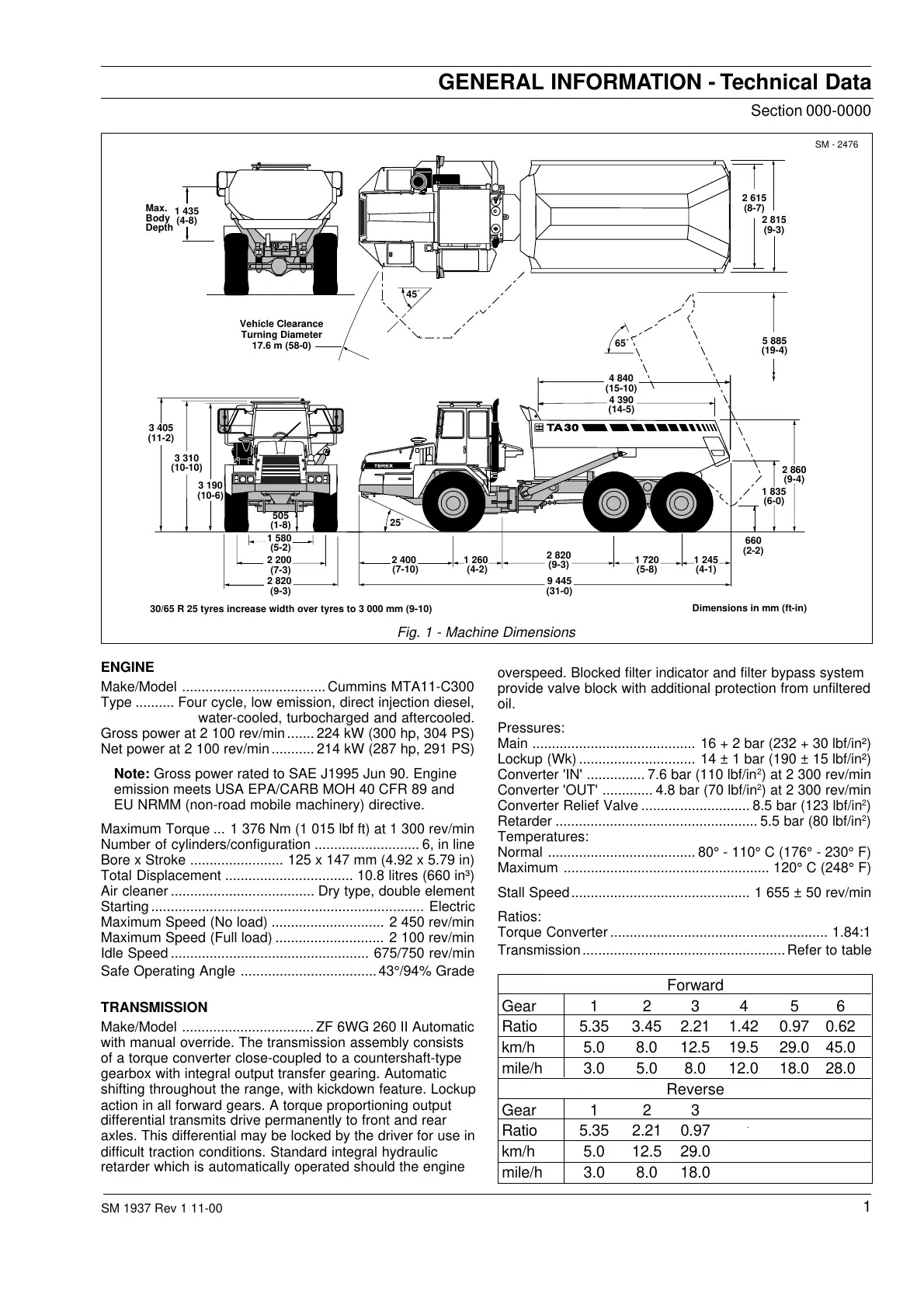

Fig. 1 - Machine Dimensions
overspeed. Blocked filter indicator and filter bypass system
provide valve block with additional protection from unfiltered
oil.
Pressures:
Main .......................................... 16 + 2 bar (232 + 30 lbf/in²)
Lockup (Wk) .............................. 14 ± 1 bar (190 ± 15 lbf/in²)
Converter 'IN' ............... 7.6 bar (110 lbf/in
2
) at 2 300 rev/min
Converter 'OUT' ............. 4.8 bar (70 lbf/in
2
) at 2 300 rev/min
Converter Relief Valve ............................ 8.5 bar (123 lbf/in
2
)
Retarder .................................................... 5.5 bar (80 lbf/in
2
)
Temperatures:
Normal ...................................... 80° - 110° C (176° - 230° F)
Maximum ..................................................... 120° C (248° F)
Stall Speed.............................................. 1 655 ± 50 rev/min
Ratios:
Torque Converter ........................................................ 1.84:1
Transmission....................................................Refer to table
Forward
Gear 1 2 3 4 5 6
Ratio 5.35 3.45 2.21 1.42 0.97 0.62
km/h 5.0 8.0 12.5 19.5 29.0 45.0
mile/h 3.0 5.0 8.0 12.0 18.0 28.0
Reverse
Gear 1 2 3
Ratio 5.35 2.21 0.97
km/h 5.0 12.5 29.0
mile/h 3.0 8.0 18.0
GENERAL INFORMATION - Technical Data
25˚
2 400
(7-10)
1 260
(4-2)
3 310
(10-10)
1 435
(4-8)
Max.
Body
Depth
3 190
(10-6)
505
(1-8)
2 200
(7-3)
2 820
(9-3)
3 405
(11-2)
45˚
65˚
2 820
(9-3)
1 720
(5-8)
1 245
(4-1)
9 445
(31-0)
660
(2-2)
1 835
(6-0)
2 860
(9-4)
5 885
(19-4)
4 390
(14-5)
4 840
(15-10)
Vehicle Clearance
Turning Diameter
17.6 m (58-0)
2 615
(8-7)
2 815
(9-3)
1 580
(5-2)
Dimensions in mm (ft-in)
30/65 R 25 tyres increase width over tyres to 3 000 mm (9-10)
