Terex TR100 Maintenance Manual

Section 210-0040
1
SM 1900 11-00
COOLING SYSTEM - Radiator, Header Tank and Mounting
DESCRIPTION
Numbers in parentheses refer to Fig. 1, unless
otherwise specified.
Radiator assembly (25) is mounted at the front of the
chassis in front of the engine cooling fan. It is fed from
radiator header tank (1, Fig. 2) mounted on the
platform to the right of the cab and air cleaners.
A fan shroud assembly comprising of shroud (22) and
ring (18) improves the engine cooling fan efficiency,
provides a more uniform distribution of air over the
radiator core and helps restrict recirculation of air
within the engine compartment.
Anti-recirculation plates (15) and rubber seals (14)
around radiator assembly (25) prevent hot air from the
engine cooling fan from being reintroduced into the
cooling air circuit.

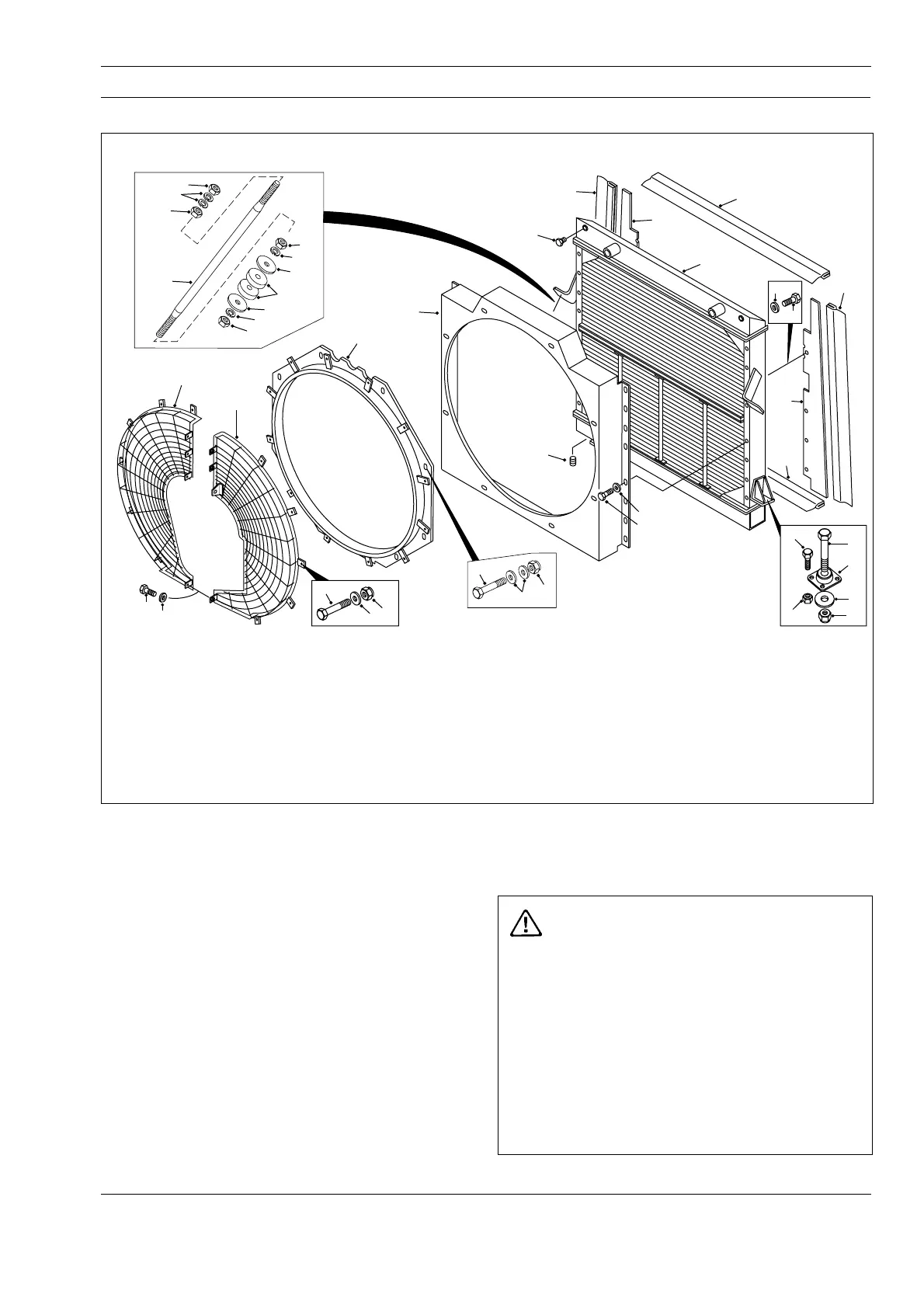

Fig. 1 - Exploded View of Radiator Mounting
REMOVAL
Numbers in parentheses refer to Fig. 1, unless
otherwise specified.
WARNING
Do not remove the pressure control cap from
the radiator header tank or attempt to drain the
coolant until the engine has cooled. Once the
engine has cooled, use extreme caution when
removing the cap. Always release pressure
from the system by depressing the pressure
relief button on the cap. Remove cap slowly as
the sudden release of pressure from a heated
cooling system can result in a loss of coolant
and possible personal injury (scalding) from
the hot liquid.
SM - 1675
1 - Lockwasher
2 - Washer
3 - Bolt
4 - Bolt
5 - Bolt
6 - Bolt
7 - Nut
8 - Plug
9 - Drain Plug
10 - Washer
11 - Flexible Mount
12 - Flexible Mount
13 - Washer
14 - Rubber Seal
15 - Anti-recirculation Plate
16 - Locknut
17 - Locknut
18 - Ring
19 - Screen
20 - Screen
21 - Support Rod
22 - Shroud
23 - Washer
24 - Bolt
25 - Radiator Assembly
7
1
7
21
7
1
13
12
13
1
7
20
19
2
3
5
2
16
2
16
4
18
22
9
8
2
3
14
15
14
14
14
15
23
24
5
16
6
11
10
17
25
