Terex TR100 Maintenance Manual

Section 000-0000
1
SM 1618 Rev 1 11-00
GENERAL INFORMATION - TR100 Mining Truck
SM - 2034
TRANSMISSION
Make/Model ........................................Allison DP-8963 CEC
Automatic electronic control with soft shift feature.
Remote mounted in the frame with integral TC 890 torque
converter and planetary gearing. Six speeds forward, one
reverse. Automatic converter lockup action in all speed
ranges. Downshift inhibitor. Hydraulic retarder.

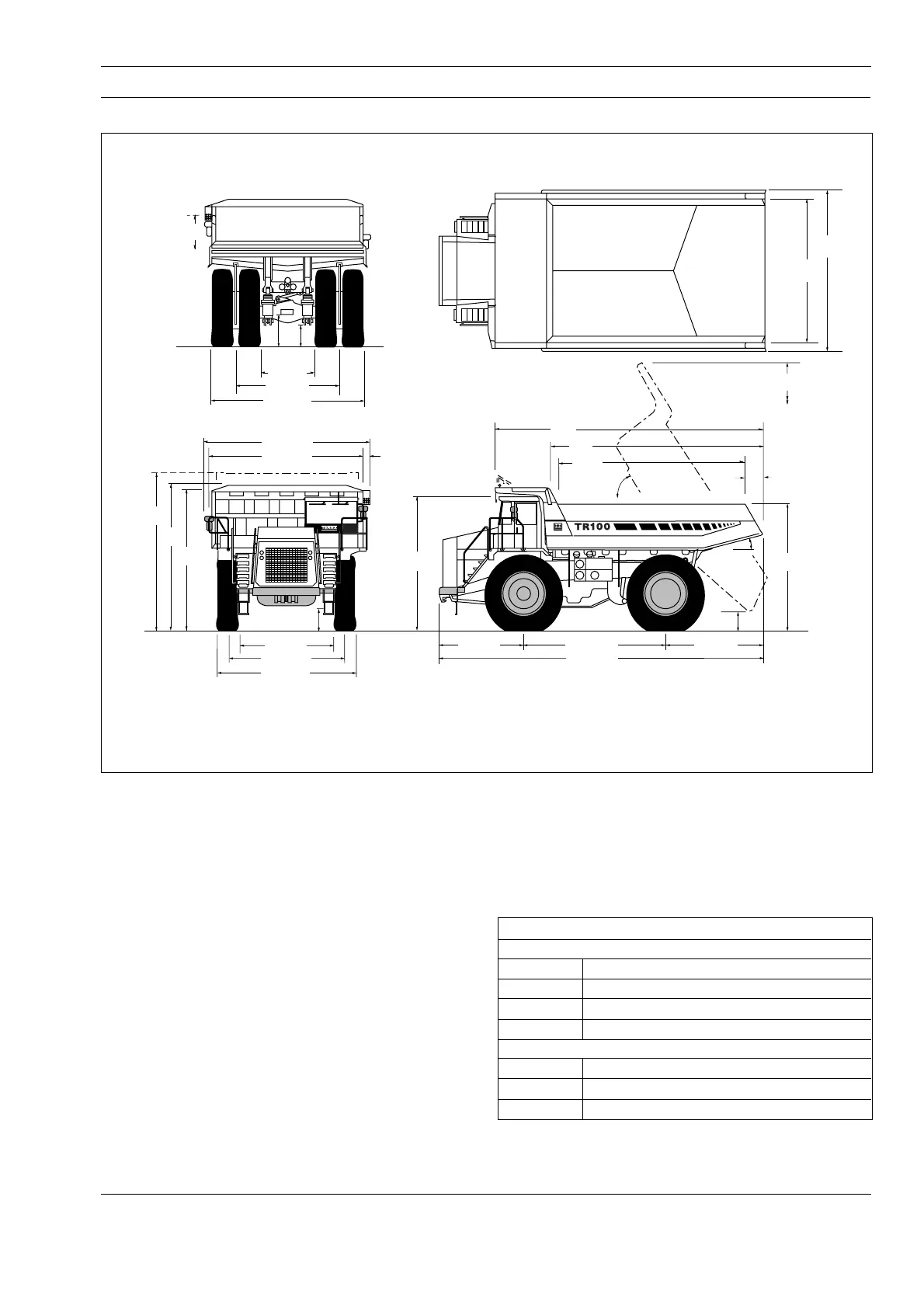

Fig. 1 - Machine Dimensions
ENGINE
Make/Model .................................. Cummins KTA-38-C1050
Type .............................. 4 Cycle, Turbocharged/Aftercooled
Gross Power
at 2 100 rev/min .................. 783 kW (1 050 hp, 1 094 PS)
Net Power at 2 100 rev/min ..........727 kW (975 hp, 988 PS)
Note: Power ratings to SAE J1995 June 1990. Net Power
is after deductions for fan and alternator. Engine requires
no derating up to 3 050 m (10 000 ft) altitude.
Maximum Torque .............................. 4 631 Nm (3 415 lbf ft)
at 1 300 rev/min
Number of Cylinders/Configuration ................................ 12V
Bore x Stroke ........................ 159 x 159 mm (6.25 x 6.25 in)
Total Displacement .............................. 37.7 litres (2 300 in³)
Starting...................................................................... Electric
Maximum Speed, Full Load ............................ 2 100 rev/min
Maximum Speed, No Load ............................. 2 400 rev/min
Idle Speed .......................................................... 750 rev/min
Safe Operating Angle .................................. 30°/60% Grade
Speeds With Standard Planetary
Forward
Gear 1 2 3 4 5 6
Ratio 4.24 2.32 1.69 1.31 1.00 0.73
km/h 8.2 15.0 20.6 26.5 34.8 47.6
mile/h 5.1 9.3 12.8 16.5 21.6 29.6
Reverse
Ratio 5.75
km/h 6.0
mile/h 3.8
4 825 (15-10)
5 935 (19-6)
Optional
Spillguard
4 850
(15-11)
5 235
(17-2)
4 700
(15-5)
2 945 (9-8)
3 760 (12-4)
4 570 (15-0)
815 (2-8)
275
(0-11)
755
(2-7)
1 635
(5-4)
1 220
(4-0)
5 080 (16-8)
1 755 (5-9)
3 420 (11-3)
Max
Body
Depth
4 575
(15-0)
Vehicle Clearance Diameter (SAE) 24.5 m (80 ft)
3 150 (10-4)
4 570 (15-0)
3 100 (10-2)
10 820 (35-6)
Dimensions in mm (ft-in)
4 445
(14-7)
6 880
(22-7)
8 640
(28-4)
6 080
(19-11)
8 960
(29-5)
660 (2-2)
510
(1-8)
15˚
58˚
4 730
(15-6)
5 150
(16-11)
