Making Connections
With Your New AM/FM
+
Radio tuners and receivers can have different connections
for your new AM/FM+ antenna. Please find the connection
that best matches your tuner or receiver and follow the
listed instructions.
FM Connections:
75 Ohm Coaxial:

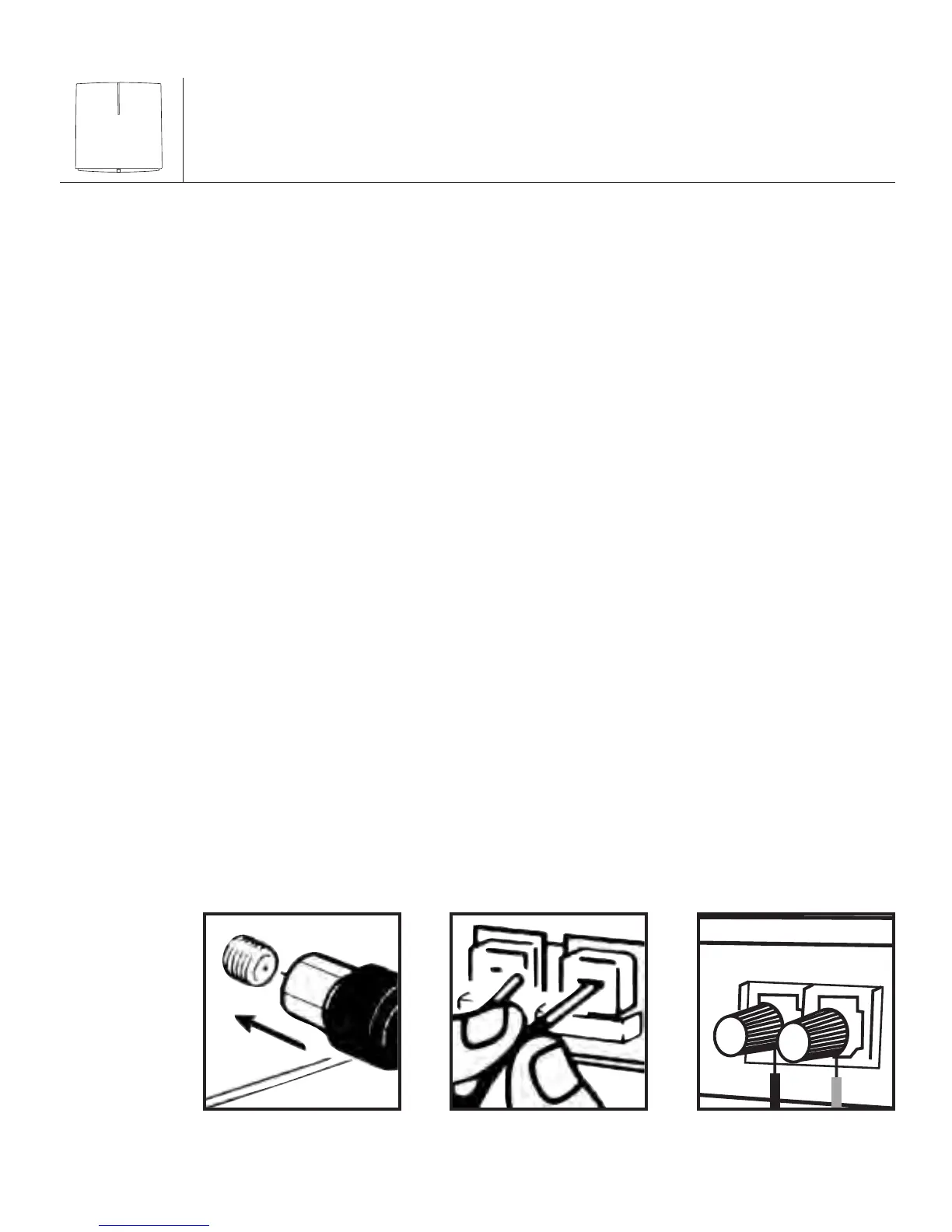

Your TERK antenna has a Slip-On Coaxial connector on
the FM lead. Simply slide the connector onto the coaxial
terminal. See Fig. 1.
75 Ohm Push-Button Connection:
If your Radio tuner or receiver has Push-Button terminals
for FM you will need to use the supplied RED 75 Ohm
matching transformer. First, slide the RED 75 Ohm
matching transformer into the connector on the FM lead
of the antenna. Next, slide the RED wire into the terminal
marked “FM 75 Ohm”. Lastly, connect the BLACK wire
into the terminal marked “FM Ground” or “GND”. See Fig. 2.
AM/FM
+
1
ANTENNA
GND
AM
Fig. 1
Fig. 2
Fig. 3
