32

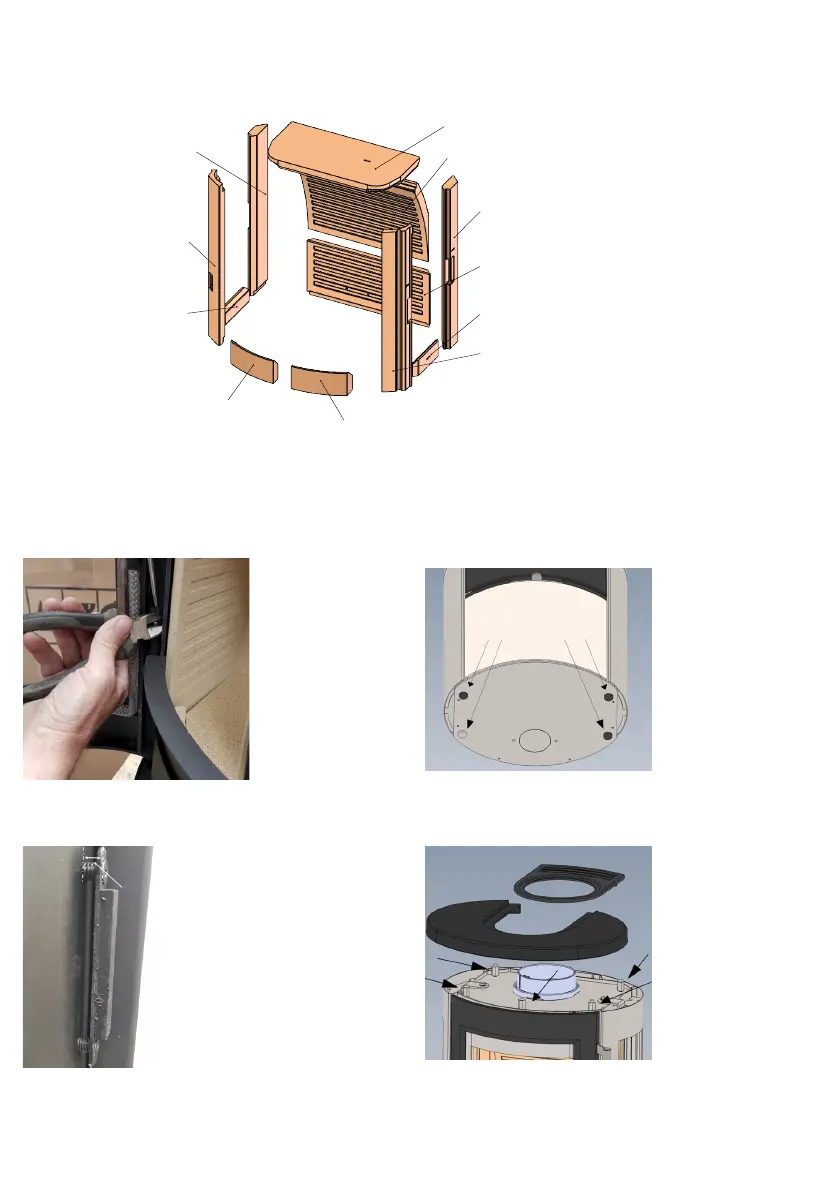

Drawings with explanations
Replacement of insulation plates
10. Art.:No. 400-575
11. Art.:No. 400-574
2. Art.:No. 400-586
7. Art.:No. 400-588
5. Art.:No. 400-587
9. Art.:No. 400-532
8. Art.:No. 400-533
3. Art.:No. 400-584
6. Art.:No. 400-588
4. Art.:No. 400-585
1. Art.:No. 400-573
Material:
Scale:
Tegningsnr. / emnenavn:
Title:
Model:
Initialer:
Revision
1:5
TT23G
PROPRIETARY AND CONFIDENTIAL. The information contained in this drawing is the sole property of TermaTech AS.
Any reproduction in part or as a whole without the written permission of TermaTech AS i prohibited.
Denne tegning er vor ejendom, den må ikke kopieres på nogen måde
og ikke gøres tilgængelig for trediemand uden vor skriftelige tilladelse
EMN
Created date
40120 Verm. assy TT23G
Gunnar Clausens Vej 36
DK-8260 Viby J.
Samlet verm. til TT23G
Assembly
07-10-2021
Rev.
C
Generel tolerance:
DS/EN22768-m
27-01-2020
Follow the numerical
order when inserting
the vermiculite -
reverse order when
removing
Adjusting the doors auto lock Adjusting the feet
Remove the split
and tighten the screw
(clockwise) depending
on how fast the door
should close.
The 4 adjustable
feet have to be adju-
sted outside with a
25mm wrench key, or
from inside with a
5mm unbraco
key.
Changing the pull in the door Adjusting the top plate
To change the pull in the door,
adjust the two magnet modu-
les.
Adjusting the top
plate is done by the
5 nuts located under
the top plate.
