TerraTec Aureon 7.1 USB User Manual

10

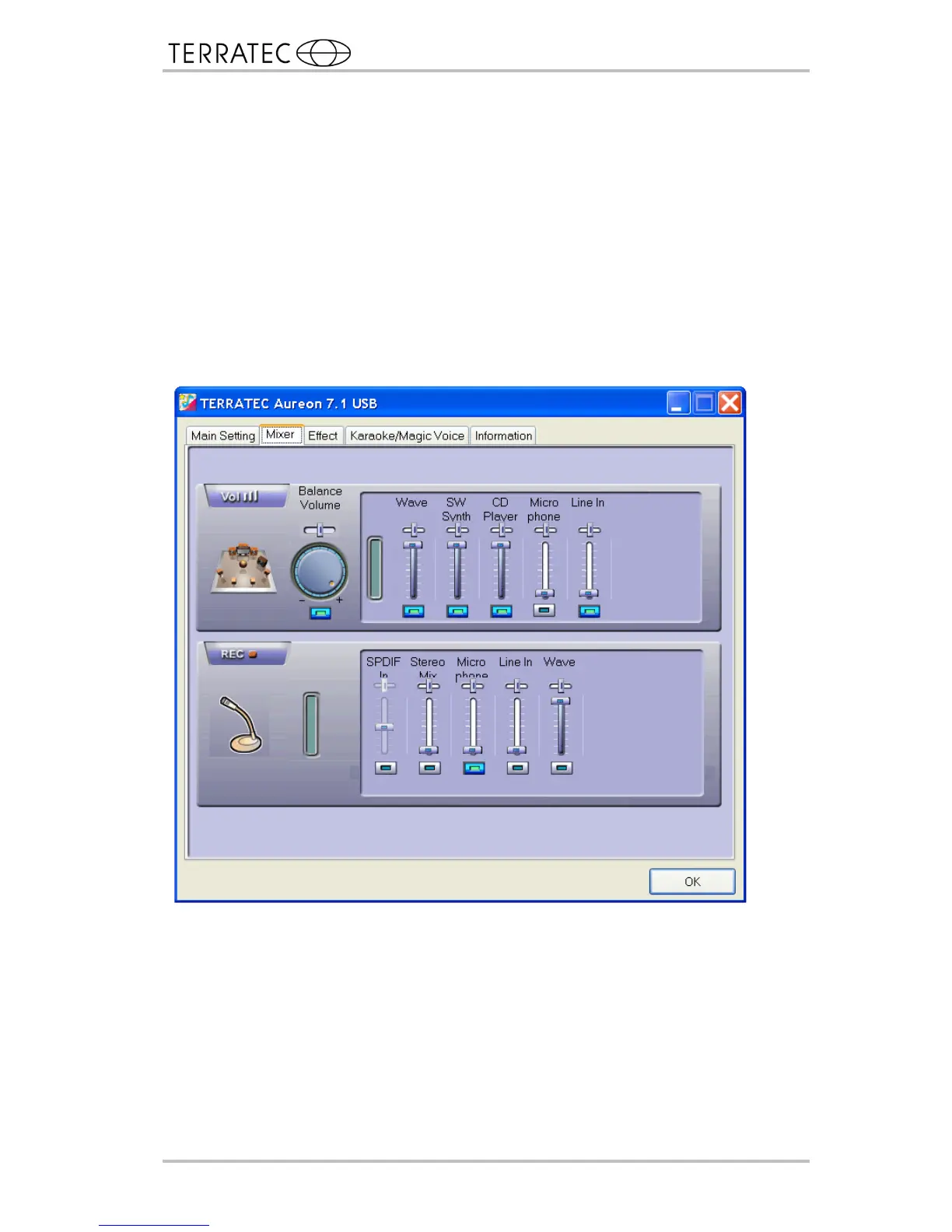

3.2 Mixer
Volume
You can adjust the volume of each individual input here. The faders controls the different
inputs and give you the ability to mute one using the MUTE button or adjust the volume of
the speakers using the faders.
Record
In the Record window you can set the signal source that you want to record and its vol-
ume.
S/PDIF is a digital signal that does not allow volume control.

TerraTec Aureon 7.1 USB Specifications

General

Internal	No
Audio quality	16 bit
Audio output channels	7.1 channels
Line-out Signal-to-Noise Ratio (SNR)	- dB
S/PDIF out port	Yes
Minimum RAM	512 MB
Minimum processor	1 GHz Intel/AMD
Minimum storage drive space	100 MB

Weight and Dimensions

Depth	22 mm
Width	120 mm
Height	60 mm
Weight	100 g
