12
WARNING: Note that the Input Neutral (N1), output Neutral (N2) and the battery mıd. Point (0) MUST
connected to the same NEUTRAL BUSBAR.

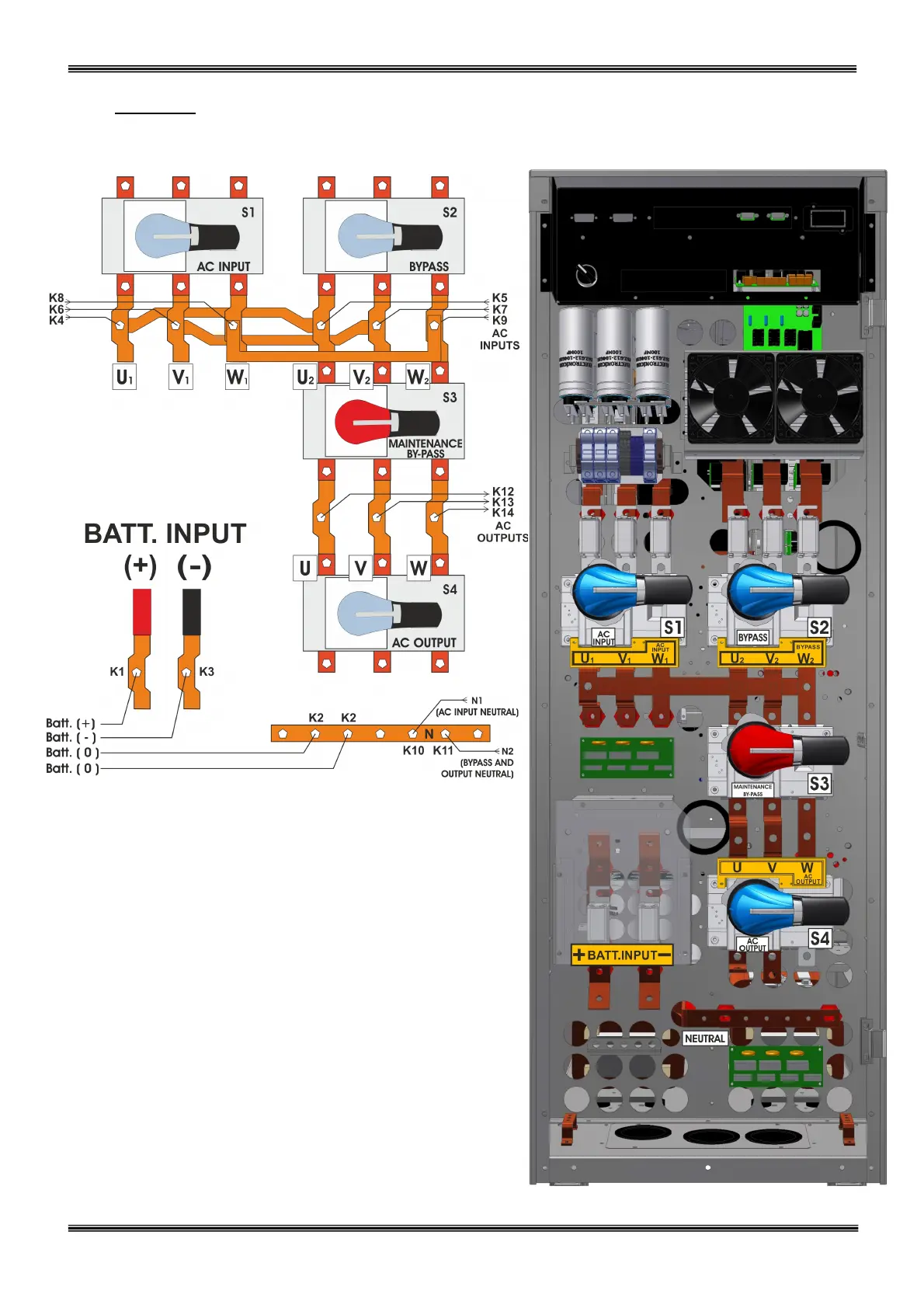

2.6.1 UPS Power Cable Connection Terminals :
Figure 2
.
2
100-120-160-200-250 kVA POWER Cable Connections
