Others
Packing list
• The connection method of the air conditioner and the power cord and the interconnection method of each
independent element shall be subject to the wiring diagram affixed to the machine.
• The model and rating value of the fuse shall be subject to the silkscreen on corresponding controller or fuse
sleeve.
Name Quantity Unit
Indoor Unit 1 Set
Remote Controller 1 PC
Batteries (7#) 2 PC
Owner’s manual 1 Set
Drain pipe 1 PC
Name Quantity Unit
Outdoor Unit 1 Set
Connecting pipe
(optional)
2 PC
Plastic Strap 1 ROLL
Pipe Protection Ring 1 PC
Luting (putty)
(optional)
1 PACKET
Packing list of the indoor unit Packing list of the outdoor unit
Note: All accessories s hall be subject to actual packaging material, and if there is any difference, please
understand.

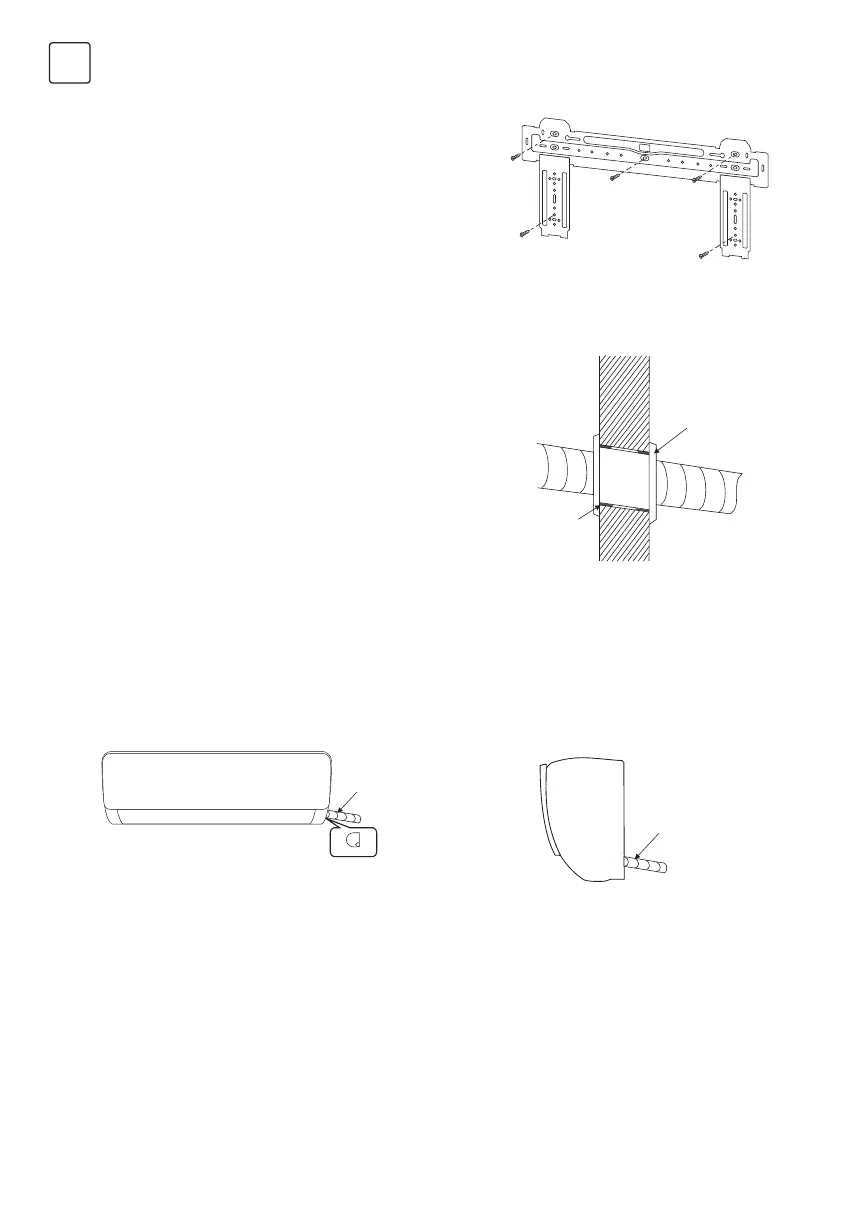

INSTALL INDOOR UNIT

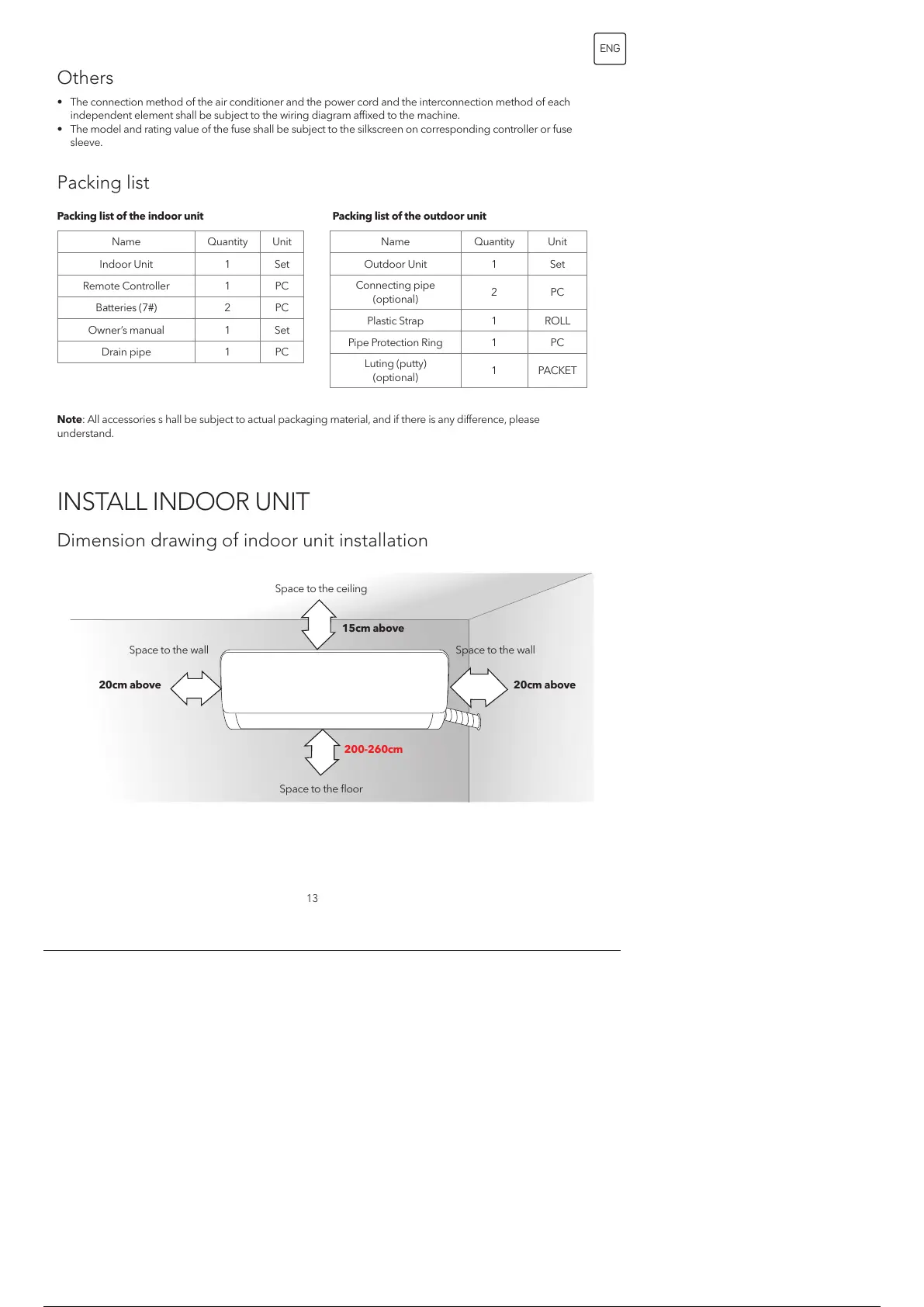

Dimension drawing of indoor unit installation
Space to the ceiling
Space to the floor
Space to the wallSpace to the wall
15cm above
20cm above20cm above
200-260cm
