19
ENG
1. Loosen the screws and remove E-parts cover from the unit.
2. Connect the cables respectively to the corresponding terminals of
the terminal board of the outdoor unit (see the wiring diagram), and if
there are signals connected to the plug, just conduct butt joint.
3. Ground wire: Remove the grounding screw out of the electric bracket,
cover the grounding wire end onto the grounding screw and screw it
into the grounding hole.
4.Fix the cable reliably with fasteners (Pressing board).
5. Put the E-parts cover back in its original place and fasten it with screws.

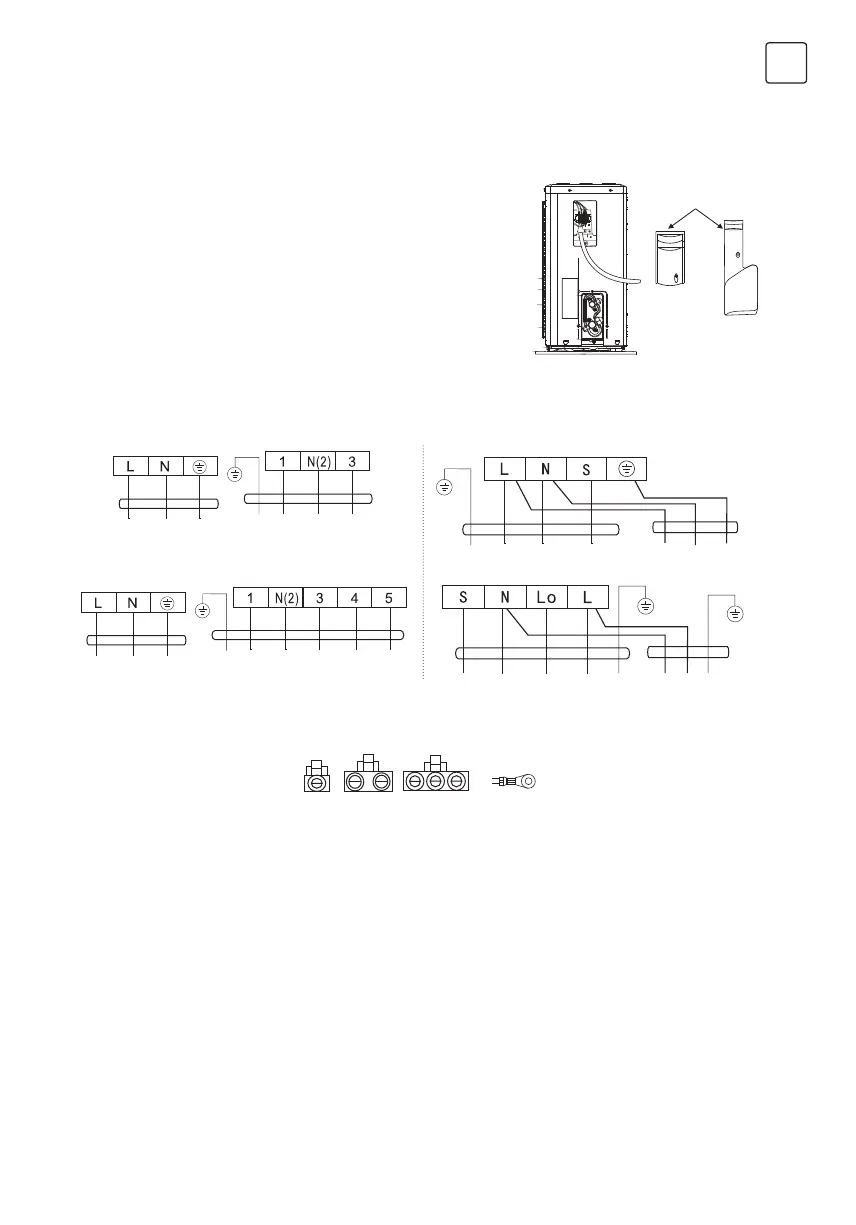

INSTALL OUTDOOR UNIT
Wiring Connection
Wiring diagram
Constant speed
Connector
If there is a connector, connect it directly.
Note:
• This manual usually includes the wiring mode for the different kind of A/C. We cannot exclude the possibility
that some speciaI type of wiring diagrams are not included.
• The diagram are for reference only. If the entity is difference with this wiring diagram, please refer to the detailed
wiring diagram adhered on the unit which you purchased.
Variable speed
To indoor unit
To indoor unit
To indoor unit
To indoor unit
To power
To power
To power
To power
E-parts cover
To Next Page
