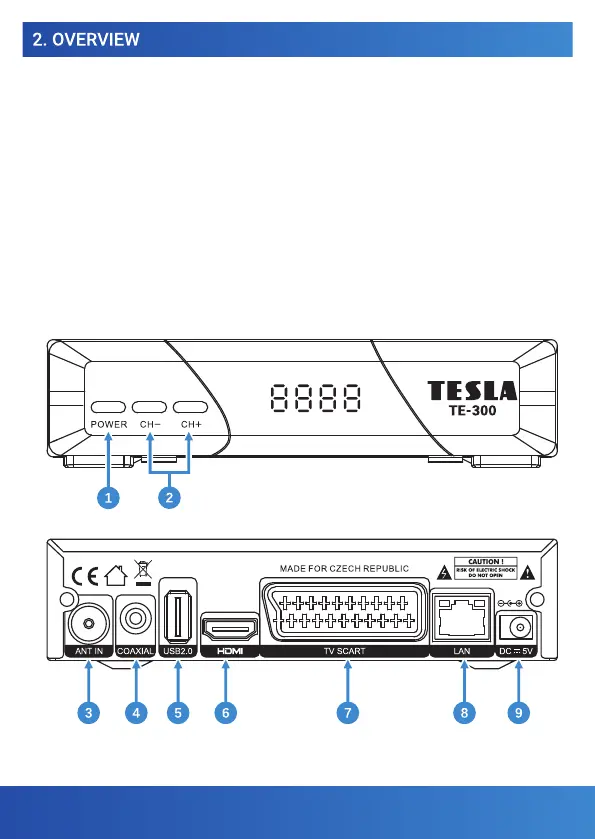

2.1 FRONT SIDE OF THE RECEIVER

1. POWER: Switch the receiver between operating and standby mode.

2. CH+/CH-: Change the station or change the item in the receiver menu.

2.2 REAR SIDE OF THE RECEIVER

3. ANT IN: Connector for connecting the antenna.

4. COAXIAL: Digital audio output.

5. USB2.0: Input for USB.

6. HDMI: Connect to TV with HDMI cable.

7. TV SCART: An analog way to connect to a TV using a SCART cable.

8. LAN: Used to connect to the Internet using an Ethernet -LAN cable.

9. DC 5V: Connect the 5V power adapter.
