PULLER-TENSIONER
Model: AFB506
Manual: MI-AFB506-149-00-GB
Date: 05.10.2016
Author: B. Ghezzi
Page: 27 of 37

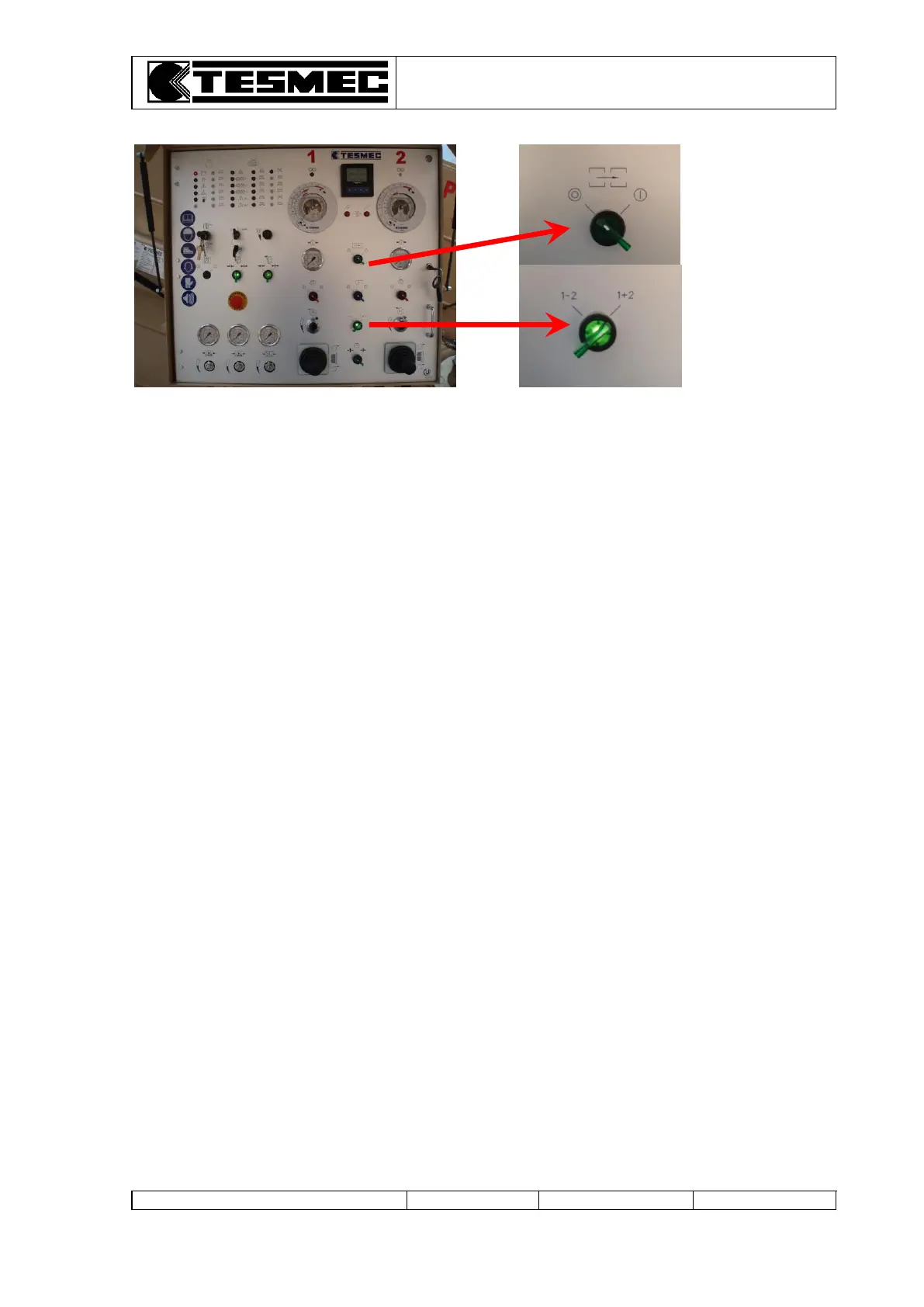

k. on the last machine the selector (table 1, pos.44) must be set leftwards (NO connection).
5.3 CONNECTED MACHINES OPERATIONS
When using connected machines, the following controls effect on all machines when operated from
the master machine:
 Speed control (joy-stick)
 Pull-adjusting control (potentiometer)
 Negative brake open – close selector
 Diesel engine accelerator
 Rope-clamp selector
When using connected machines, the following controls must be operated on each single machine:
 Reel-winder working pressure
 Hydraulic oil cooling fan pressure
 Reset of meter counter
 Pull limiting device in the dynamometers
 Main front plough position
5.4 PULL CONTROL SETTING
5.4.1 PULL LIMITING DEVICE SETTING
With the suitable pawl, connected to the dynamometers (table 1, pos. 30-36), move the red arrow in
correspondence of the max. pulling value that has not to be exceeded.
The pre-set value must be the same for all the machines connected, and must be set on each single
machine.
5.4.2 PULL PROGRAMMING DEVICE SETTING
The setting must be operated at the last circuit of the last connected machine and will effect on all the
machines.
The operation sequence is the same described on the stand alone using mode chapter 4.7.2.
