PULLER-TENSIONER
Model: AFS404
Manual: MI-AFS404-609-01-GB

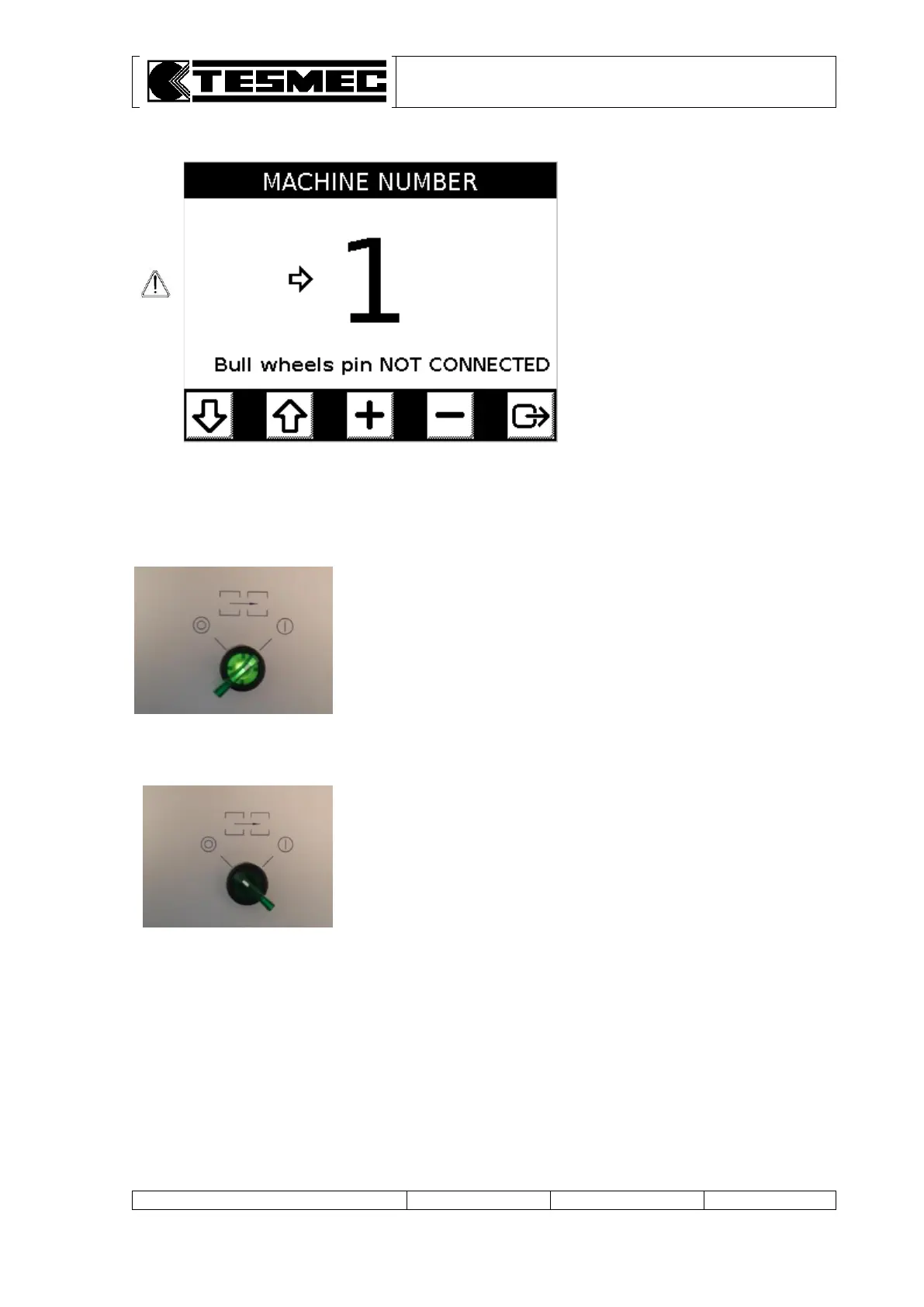

NOTE: The machine ID must be
set from 1 to the total number of
machines connected from left to
right (looking at the machines
from the back - position reel
winder)
e. on the page “BULL WHEELS PIN CONNECTION?” sett the option (see point 4.4), depending on
the configuration, using the key up () or down () push the enter key ( ) to save the settings
f. set each machine in connection configuration, except the final one, by turning the dial to the right
(table. 3)
Slave machine Configuration
g. on the last machine the selector (table. 3) must be set to the left (NO connection).
Master machine configuration
(machine with the highest ID)
