Switching light on/off
The display light is switched on by pressing the button.
The light is switched off again by pressing the button again.
Auto Off function
When switched on, the meter is in the automatic off mode (Auto
Off Function). The meter switches off automatically after 30
minutes if no button has activated during this time. This function
is symbolised by the clock in the display. You can deactivate this
function by keeping the button pressed when switching on
the meter. A clock symbol then does not appear in the display.
AC/DC output
The testo 816 meter has an AC/DC output with the following
specifications:
AC: 1 V RMS at end-scale deflection
Output impedance approx. 100 Ohm
Output signal through standard 3,5mm jack connector

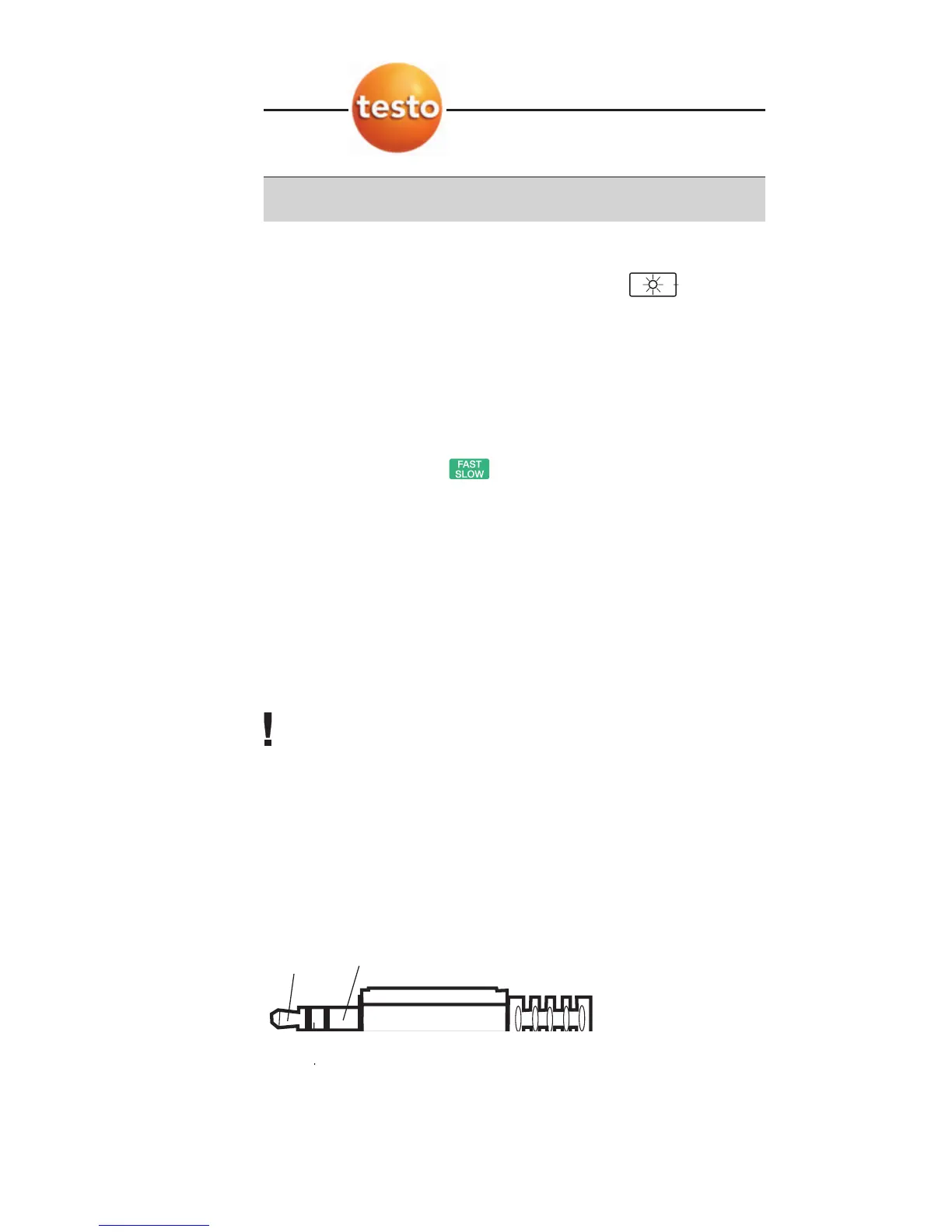

(see figure below).
Note: If the meter measures in the Auto Range function,
the output signal corresponds to the automatically
selected measurement range.
DC: Output 10mV/dB
Output impedance 1 kOhm
Output signal through standard 3.5mm jack connector
(see Figure below).
5. Operation
AC signal
Earth
DC signal
