TESTO 870 How To Operate

5/27www.testo.com,

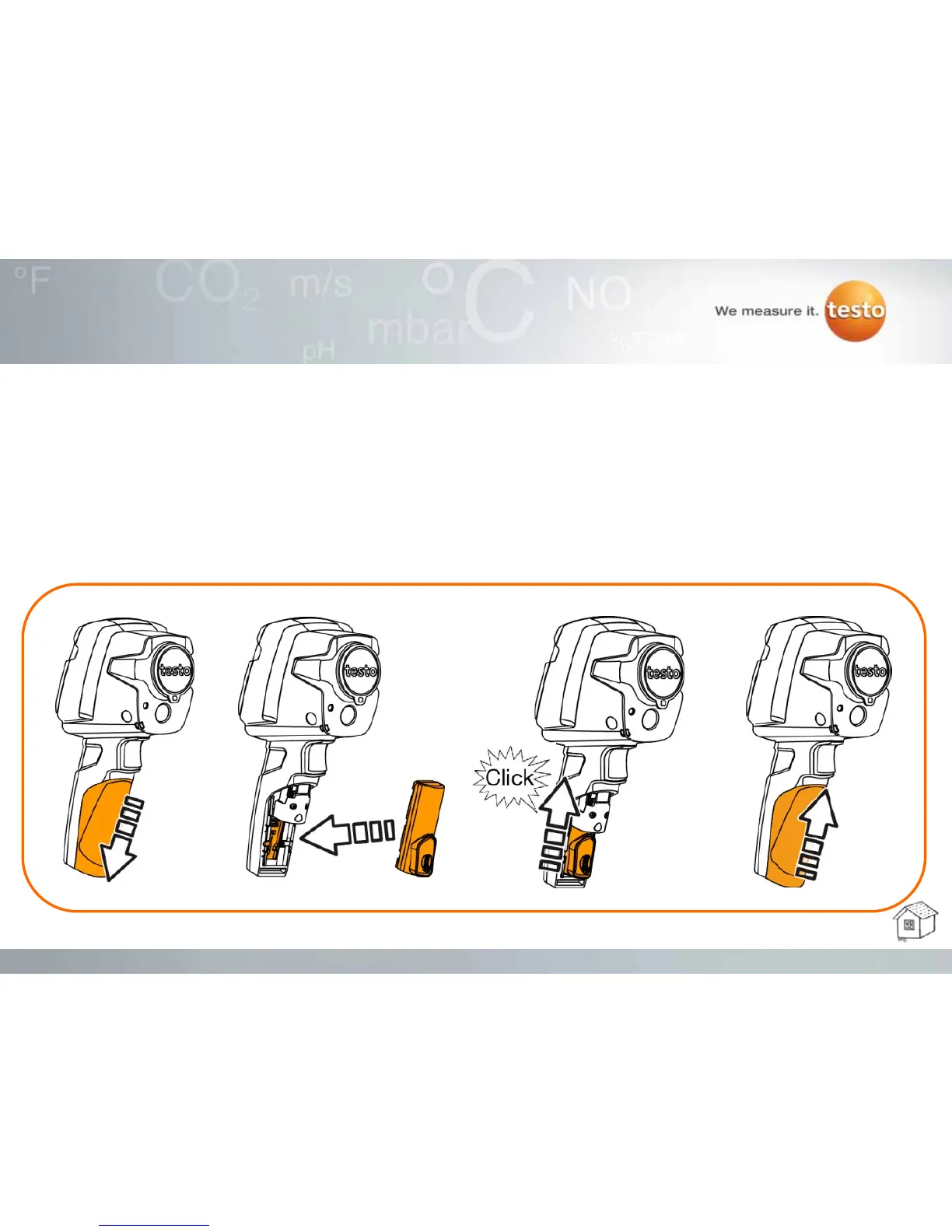

Inserting the battery
1. Remove the battery cover by sliding it down
2. Put the battery in the opening
3. Push the battery up until it clicks into place – „click“
4. Put the battery cover on and push it up
1. 2. 3. 4.

TESTO 870 Specifications

General

Resolution	160 x 120 pixels
Temperature range	-20 to +280 °C
Field of view	34° x 26°
Focus	Fixed focus
Image refresh rate	9 Hz
Minimum focus distance	0.5 m
Protection class	IP54
Dimensions	219 x 96 x 95 mm
Operating temperature	-15 to +50 °C
Storage temperature	-30 to +60 °C
Display	3.5" LCD
Battery life	4 hours
Weight	0.5 kg
Thermal sensitivity	< 0.12 K
