Teuco 122W - CONNECTIONS FOR VARIOUS MODELS

24

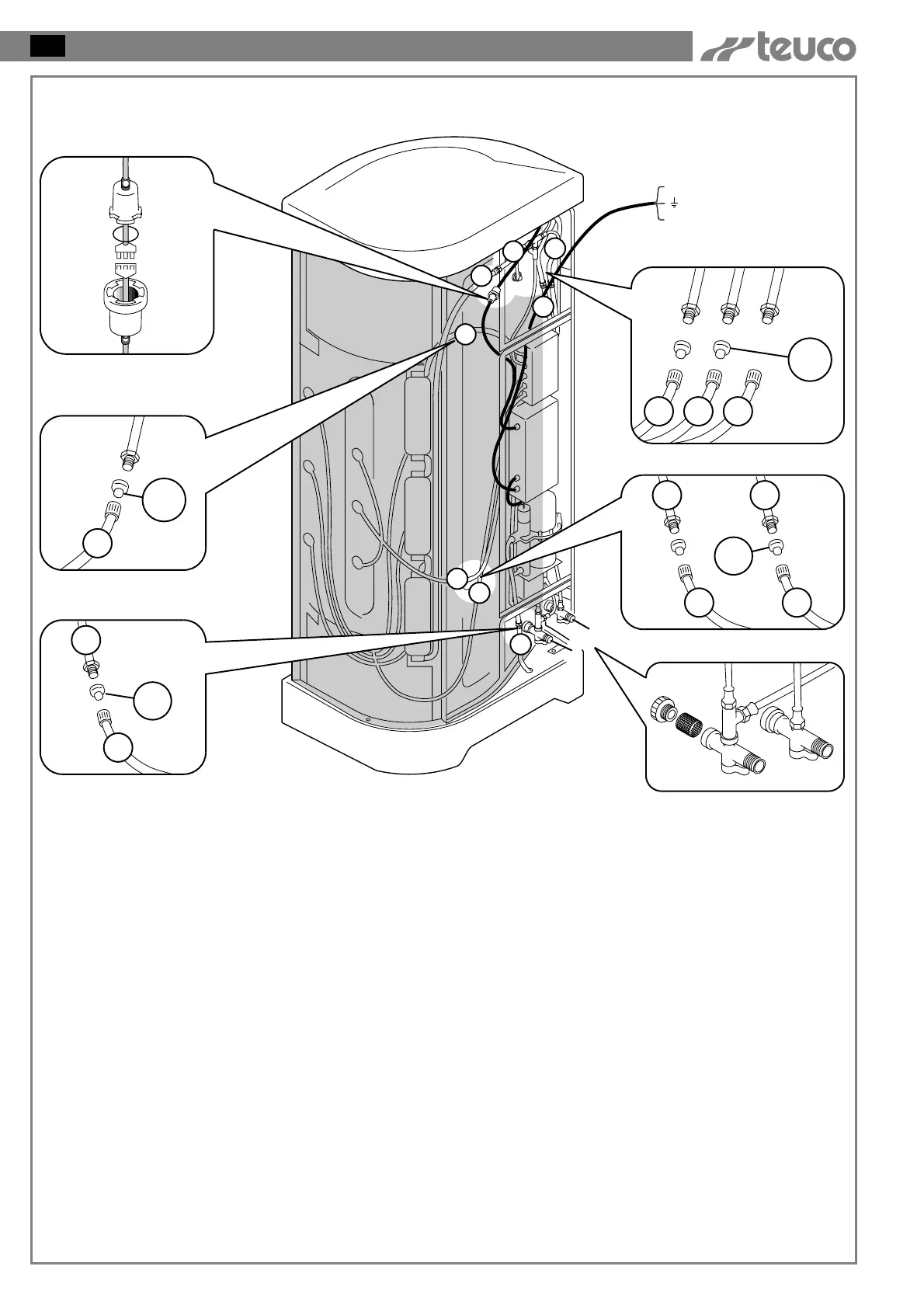

CONNECTIONS FOR VARIOUS MODELS
GB
A6- Connection for hose 3 (drainage).
N.B.: Hoses 1 and 2 for the
decalcification system must always be
filled with water. Therefore, this
system must not be emptied during
installation.
CA-Electrical connection for the
IPX4 sauna (box with PG13.5
cable clamp ).
C
F
3
CA
P
N
A3
2
5
4
1
8
10
A4
D
4
A5
A6
D
3
3
A2
D
10
10
8
8
D
521
A1
9
Art. 122R (EASY)- Easy Multifunction Shower Box with 2 Climates Steam Sauna
Once the plugs (D) have been
removed, they should not be used
again.
C - Hot water connection.
Use a 90 cm flexible stainless
steel hose.
F - Cold water connection.
Use a 90 cm flexible stainless
steel hose.
A1- Connection for hoses 1 and 2 for
the sauna unit and for hose 5 for
the shower head with nebulizer.
A2-Connection for hose 8 for the
vertical massage and for hose 10
for the back massage.
A3- Cleaning of the taps with filter.
A4-Connection between the
electrical cable coming from the
dome and cable coming from the
power unit.
A5- Connection for hose 4 (boiler).
Blue
Yellow-Green
Brown
