Teufel decoderstation 3 - Decoder Rear

9
Teufel · decoderstation 3
Optical 2
For connecting the decoder with a digital signal
source in optical format (Toslink). The decoder-
station 3 is supplied with a suitable optical cable.
Coaxial
For connecting the decoder with a digital signal
source in coaxial format (cinch).
Aux 1 · Aux 2 · Aux 3
You can connect the stereo cinch cable (left
/ right) to connect with the analogue outputs
of your stereo reproduction appliances (e.g. TV
set, CD player, video recorder etc.). You will need
an extra preamplier to connect and operate a
record player.
5.1-Channel Output
A decoded analogue multi-channel sound signal
is emitted via an analogue 5.1-output. Alterna-
tively you can also use the output for the left
and right front channels for reproduction in
stereo. A cinch cable is required per channel to
connect to an external appliance (e.g. a subwoof-
er with multi-channel input), i.e. a total of six
mono cinch cables or three stereo cinch cables.
FL: Sound output of left front channel
FR: Sound output of right front channel
SL: Sound output of left surround channel
SR: Sound output of right surround channel
C: Sound output of centre channel
SW: Subwoofer output
(The subwoofer output reproduces the frequen-
cy area below 130Hz).
AC input
For connecting the power pack supplied. Use the
screw fastening to prevent it from slipping out.

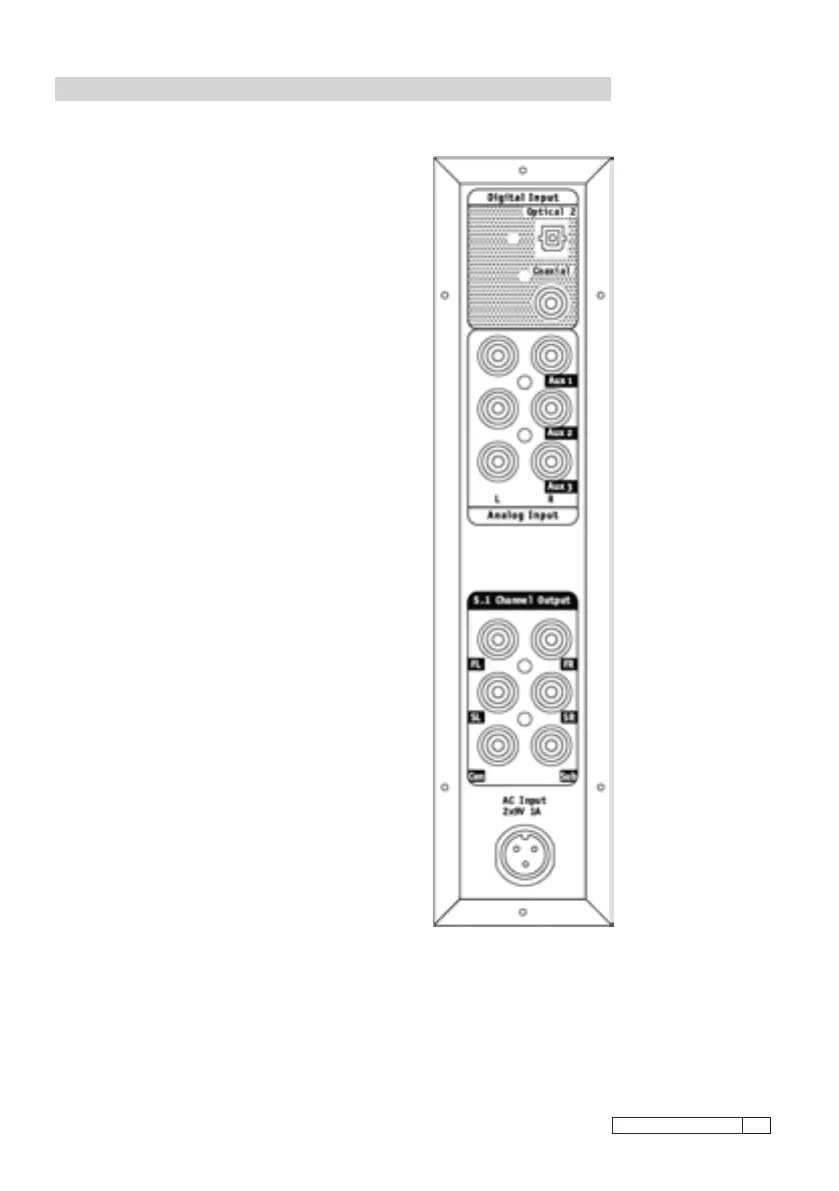

Function: Decoder rear
Specication of the
connections on the back
of the decoderstation 3
and their functions.
