Texas Instruments AM1808 - Page 196

LCD_AC_ENB_CS
LCD_PCLK
2
3
1
W_SU
(0 to 31)
W_STROBE
(1 to 63)
W_HOLD
(1 to 15)
CS_DELAY
R_SU
(0 to 31)
R_STROBE
(1 to 63)
R_HOLD
(1 to 15)
CS_DELAY
LCD_MCLK
4
Write Data
5 14
16
17
15
Data[7:0]
Not Used
8 9
10 11
12
13
12
13
RS
R/W
E0
E1
LCD_D[15:0]
LCD_VSYNC
LCD_HSYNC
Read Status
AM1808
SPRS653E –FEBRUARY 2010–REVISED MARCH 2014 www.ti.com
6.24.1 LCD Interface Display Driver (LIDD Mode)
Table 6-108. Timing Requirements for LCD LIDD Mode
1.3V, 1.2V,
1.0V
1.1V
NO. UNIT
MIN MAX MIN MAX
16 t
su(LCD_D)
Setup time, LCD_D[15:0] valid before LCD_MCLK high 7 8 ns
17 t
h(LCD_D)
Hold time, LCD_D[15:0] valid after LCD_MCLK high 0 0 ns
Table 6-109. Switching Characteristics Over Recommended Operating Conditions for LCD LIDD Mode
1.3V, 1.2V,
1.0V
1.1V
NO. PARAMETER UNIT
MIN MAX MIN MAX
4 t
d(LCD_D_V)
Delay time, LCD_MCLK high to LCD_D[15:0] valid (write) 0 7 0 9 ns
5 t
d(LCD_D_I)
Delay time, LCD_MCLK high to LCD_D[15:0] invalid (write) 0 7 0 9 ns
6 t
d(LCD_E_A
) Delay time, LCD_MCLK high to LCD_AC_ENB_CS low 0 7 0 9 ns
7 t
d(LCD_E_I)
Delay time, LCD_MCLK high to LCD_AC_ENB_CS high 0 7 0 9 ns
8 t
d(LCD_A_A)
Delay time, LCD_MCLK high to LCD_VSYNC low 0 7 0 9 ns
9 t
d(LCD_A_I)
Delay time, LCD_MCLK high to LCD_VSYNC high 0 7 0 9 ns
10 t
d(LCD_W_A)
Delay time, LCD_MCLK high to LCD_HSYNC low 0 7 0 9 ns
11 t
d(LCD_W_I)
Delay time, LCD_MCLK high to LCD_HSYNC high 0 7 0 9 ns
12 t
d(LCD_STRB_A)
Delay time, LCD_MCLK high to LCD_PCLK active 0 7 0 9 ns
13 t
d(LCD_STRB_I)
Delay time, LCD_MCLK high to LCD_PCLK inactive 0 7 0 9 ns
14 t
d(LCD_D_Z)
Delay time, LCD_MCLK high to LCD_D[15:0] in 3-state 0 7 0 9 ns
15 t
d(Z_LCD_D)
Delay time, LCD_MCLK high to LCD_D[15:0] (valid from 3-state) 0 7 0 9 ns

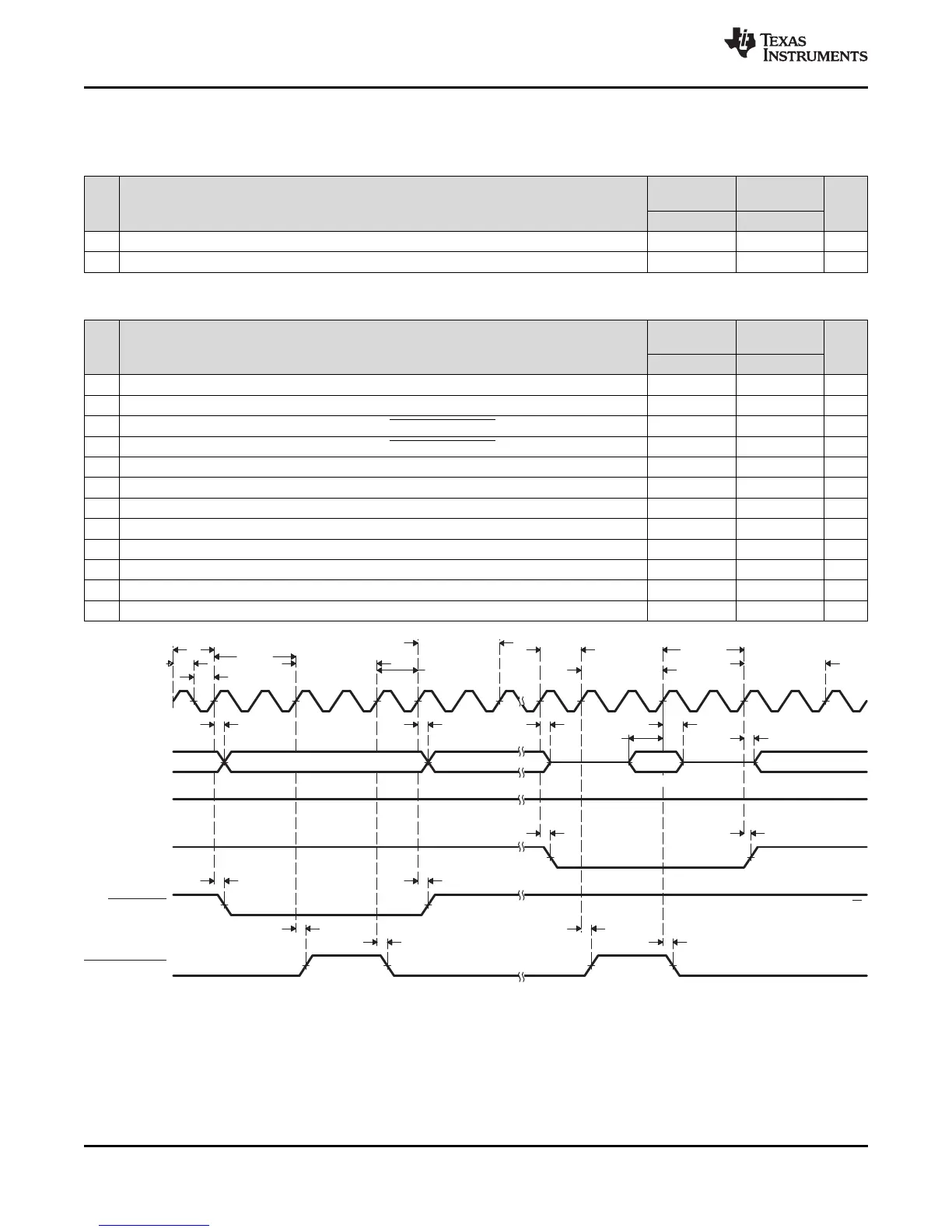

Figure 6-52. Character Display HD44780 Write
