AWR1642 Evaluation Module (AWR1642BOOST) Single-Chip mmWave
Sensing Solution
2.3.2 60-Pin HD Connector
The 60-pin HD connector provides the high speed LVDS data, control signals (SPI, UART, I
2
C, NRST,
NERR, SOPs) and JTAG debug signals. The connector can be connected to the MMWAVE-DEVPACK
board to further get to the standard TSW1400 EVM. Figure 6 shows the HD connector, and Table 3
provides the connector information.

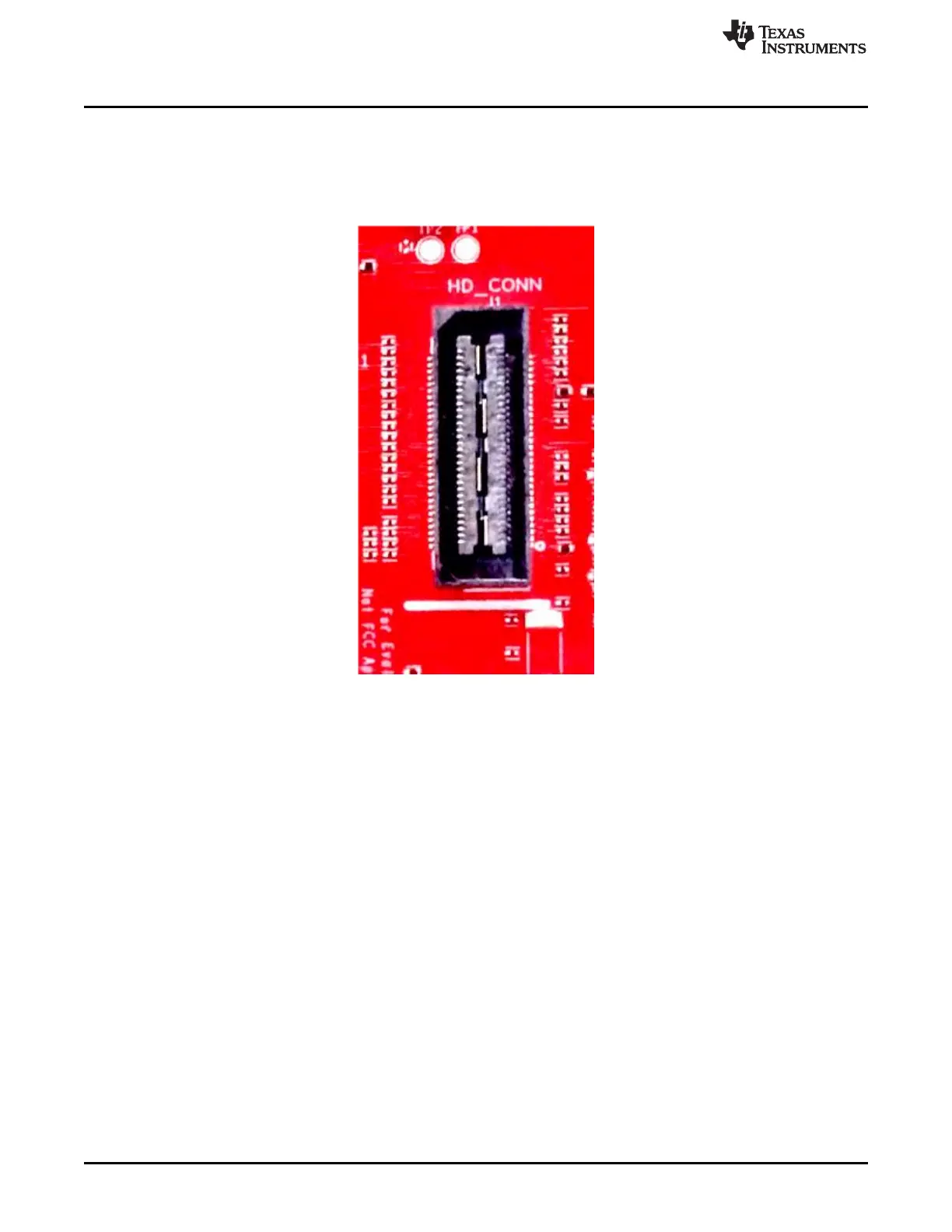

Figure 6. HD Connector
