PCM1808 Evaluation Module
6 Schematic and Bill of Materials
This section contains the EVM schematic and bill of materials.
6.1 Schematic
Figure 5 illustrates the EVM schematic.

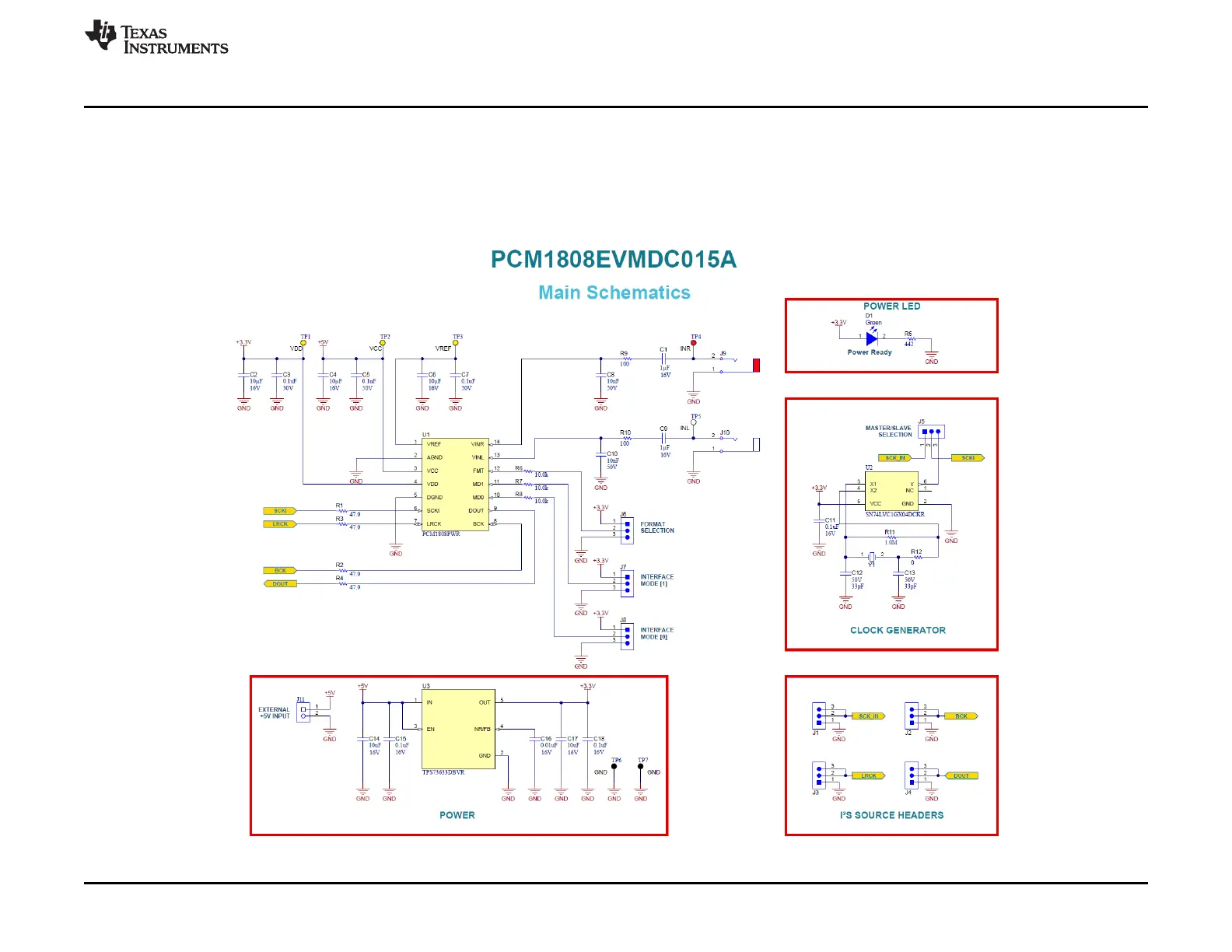

Figure 5. PCM1808EVM Schematic
