www.ti.com
Performance Data and Typical Characteristic Curves

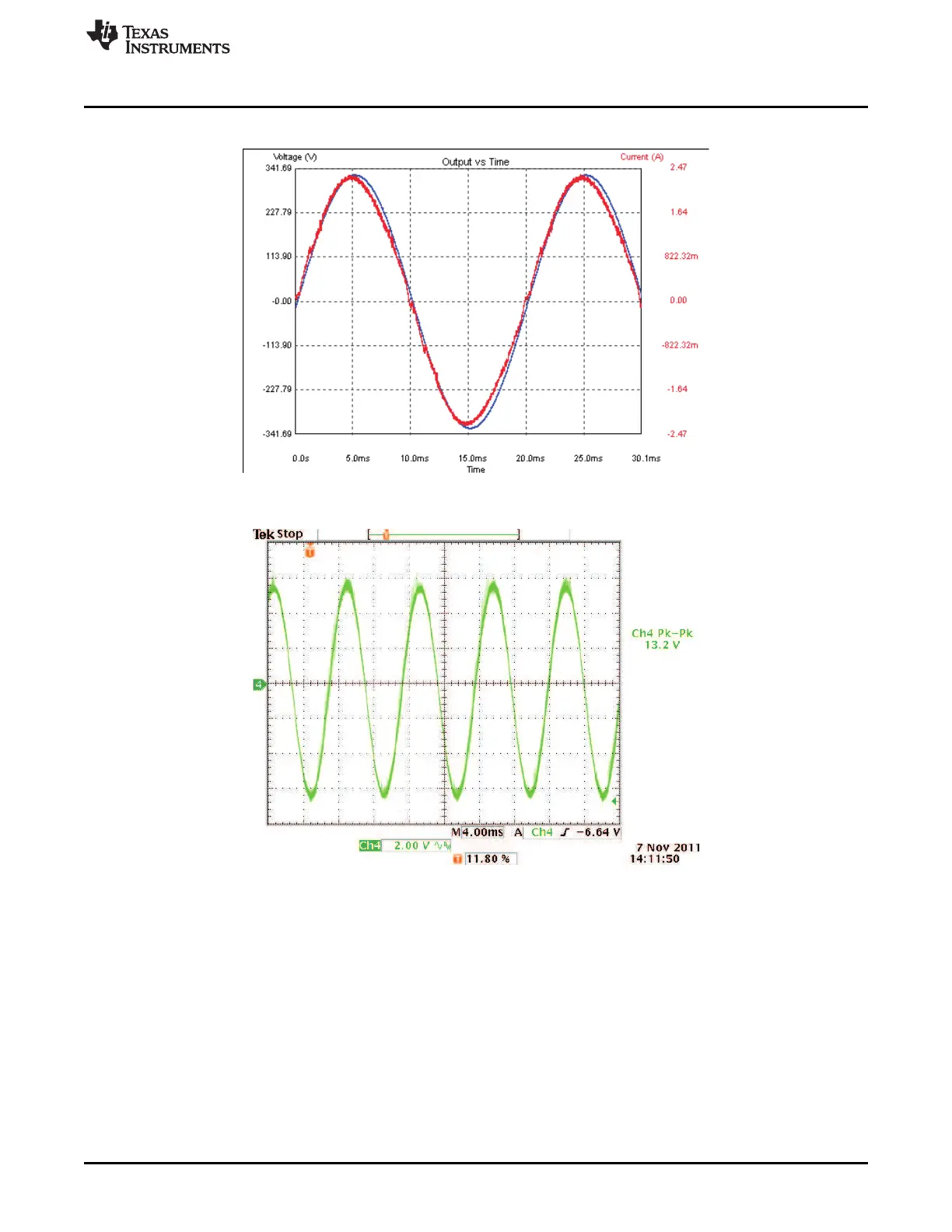

9.5 Output Voltage Ripple
Figure 11. Output Voltage Ripple 115 V
AC
and Full Load
Figure 12. Output Voltage Ripple 230 V
AC
and Full Load
15
SLUU885B–March 2012–Revised July 2012 Digitally Controlled Single-Phase PFC Pre-Regulator
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
