INS627-8 25/44

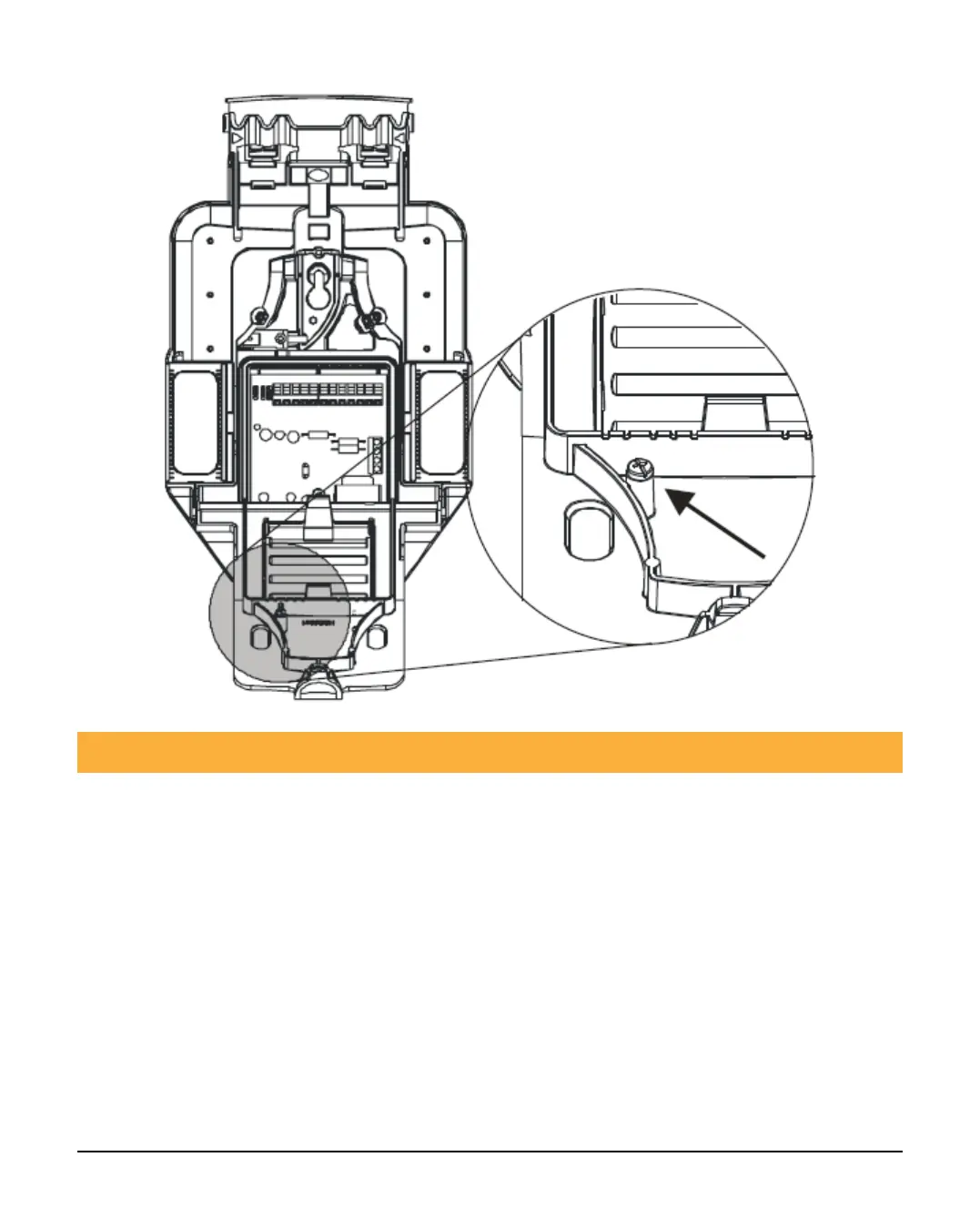

1.16 Wiring the Unit
Connect the unit to the control panel as follows:
A (12V) Permanent Positive Supply
B (BELL) Negative Applied Output to Activate Siren
C (TAMP) Negative Removed on Tamper Input
D (0V) Permanent Negative Supply
S (STRB) Negative Applied Output to Activate Strobe
T (Test) Test input for enabling remote test via Maintex or Wintex*
