SECTION 1 CESSNA
GENERAL MODEL 172R

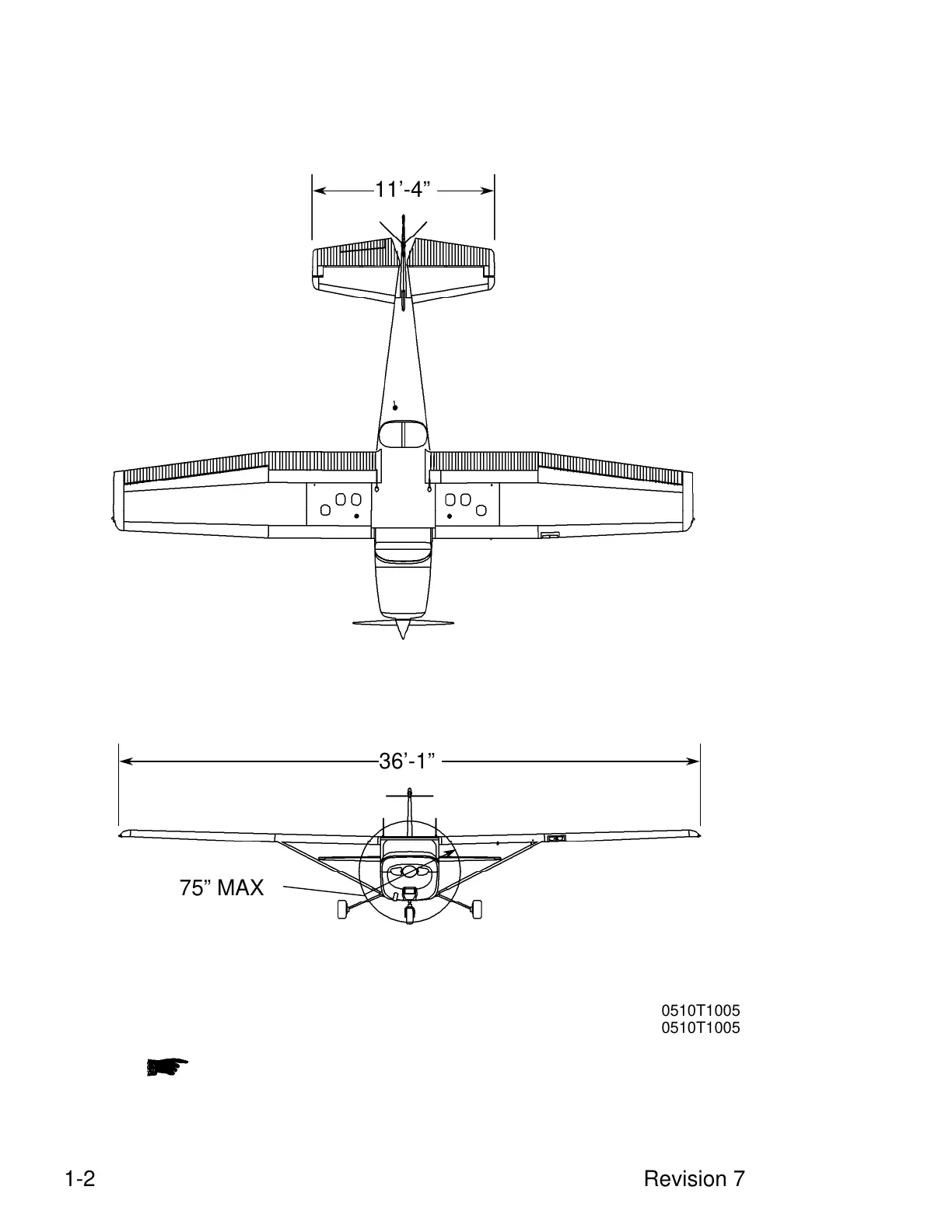

Figure 1-1. Three View - Normal Ground
Attitude (Sheet 1 of 2)
               

             


             


             

               
75” MAX
              

            


            


            


            


            

              
0510T1005
0510T1005
36’-1”
11’-4”
