Page K-1
10015775 Service Parts Manual

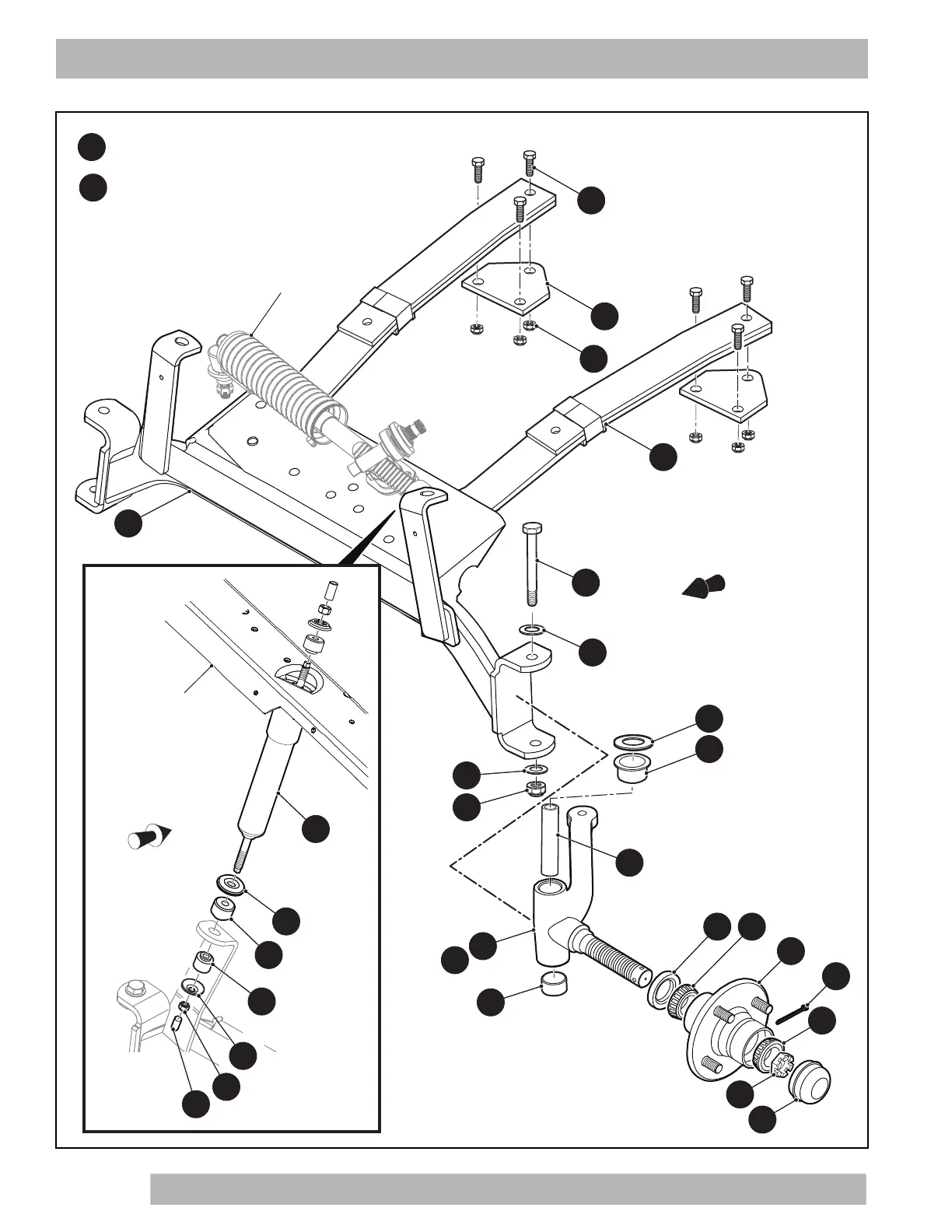

FRONT SUSPENSION AND STEERING
Spindle and Hub Assembly, 4 Lug (Passenger Side)
includes items 4 - 13
Spindle and Hub Assembly (Driver Side)
includes items 5 - 13, 17
3
16
Front of Vehicle
27
27
29
26
26
28
30
Part of Frame
Front of Vehicle
Steering Box
Assembly
25
2
24
23
1
21
19
20
19
5
14
4
6
7 8
12
8
11
13
9
17
22
