Textron EZ-GO Express L6 - Fuel System

Page L-1
10015775 Service Parts Manual

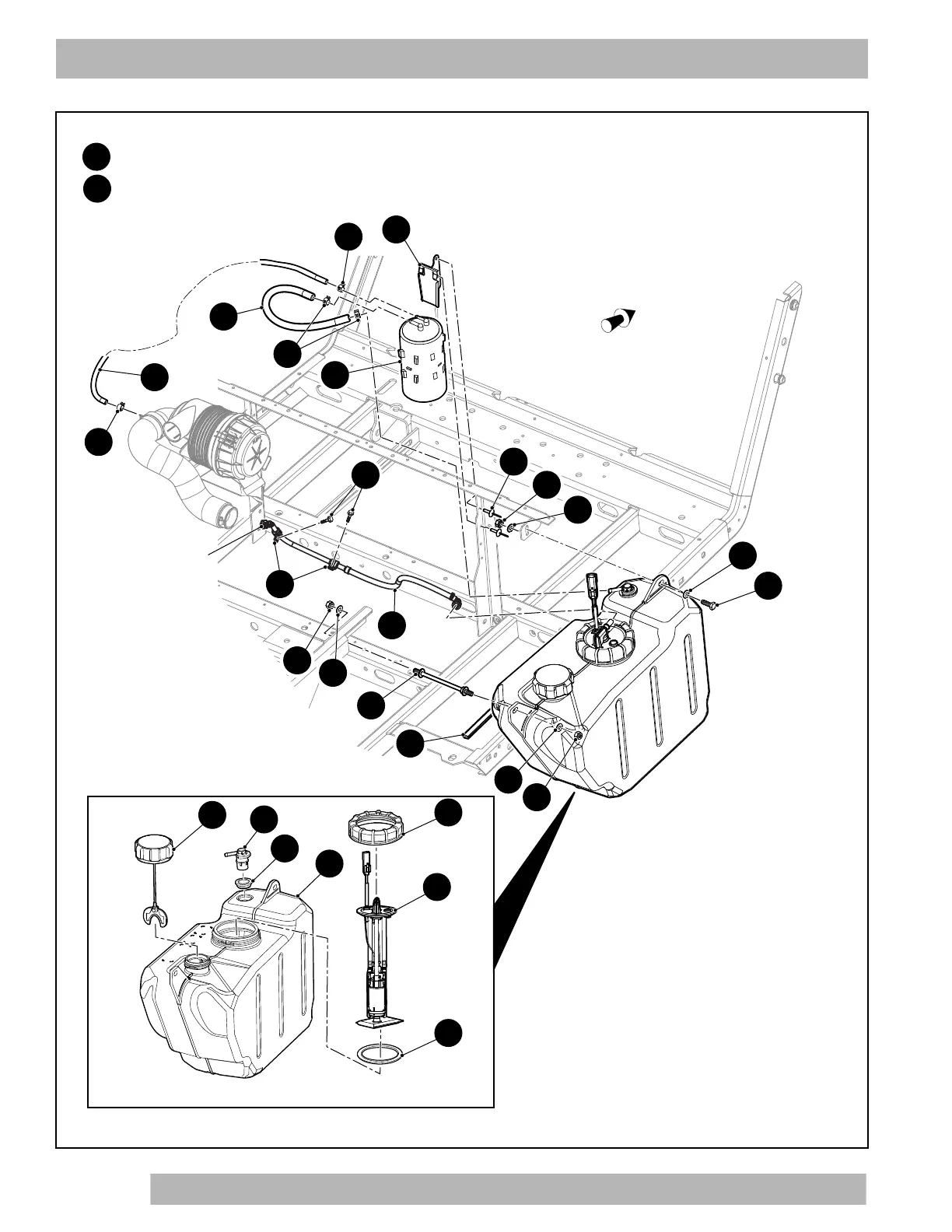

FUEL SYSTEM
Front of Vehicle
To Engine
1
Fuel Tank Assembly includes items 2 - 8
21
Carbon Canister Assembly includes items 22 - 26
2
8
5
6
7
3
9
10
14
12
18
16
20
24
25
23
17
18
19
15
17
17
18
18
22
4
26
24
