DM-200A • DM-210A • DM-510A
7
13.
Bar graph element
14. – Polarity indicator for bar graph
15. LoZ Low input impedance is active.
16. Low battery
17. – Polarity indicator
18. 8.8.8.8 Numeric display
19. ∆ Relative zero function is enabled.
20. AC measurement is selected.
21. DC measurement is selected.
22. Automatic ranging is enabled.
23. Continuity
24. Hold function is enabled.
25. Crest capture function is enabled.
26. MAX Maximum is displayed or
being recorded.
MIN Minimum is displayed or
being recorded.
27. M Mega (10
6
)
28. Ω Ohm
29. k Kilo (10
3
)
30. Hz Hertz (frequency in
cycles per second)
31. n Nano (10
-9
)
32. F Farad
33. µ Micro (10
-6
)
34. m Milli (10
-3
)
35. V Volt
36. A Ampere
37. Bar graph scale
38. } Overload (bar graph display)

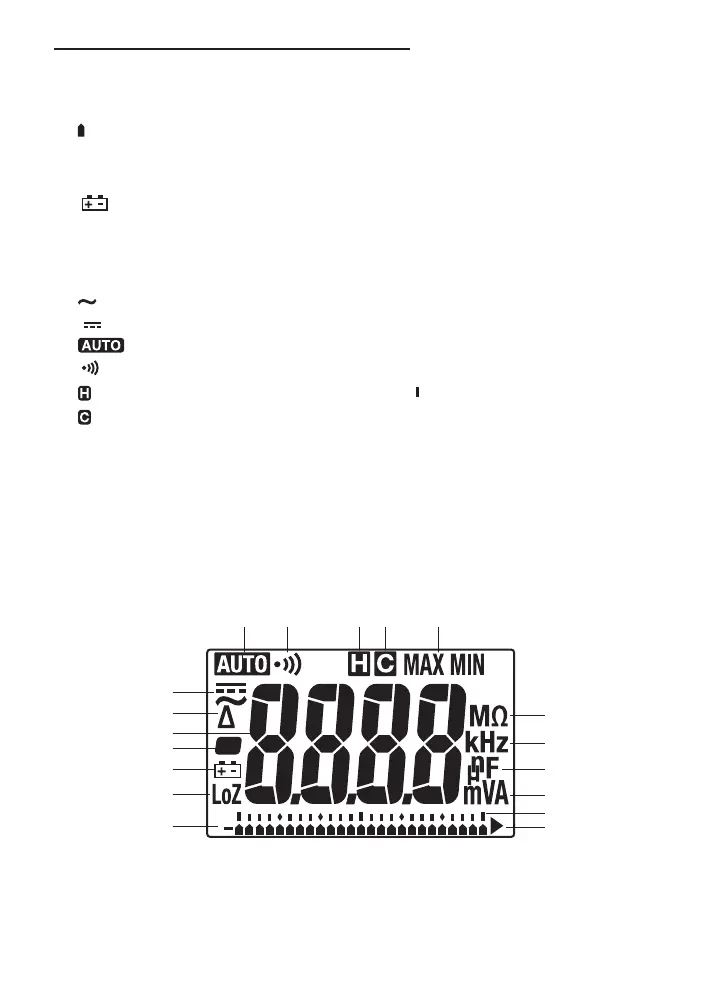

Display Icons
27-28
29-30
31-32
33-36
38
37
19
20-21
16
15
13-14
17
18
22 23 24 25 26
