GB-18
JACOBSEN G PLEX II Series: ZV
MAINTENANCE AND PARTS MANUAL
GB
IMPORTANT
WE RECOMMEND THAT THE FILTER ELEMENT
BE REPLACED BEFORE ENGINE
PERFORMANCE IS AFFECTED. THIS MAY
OCCUR AT 250 HOURS OF SERVICE UNDER
VERY DUSTY CONDITIONS OR AT 500 HOURS
UNDER NORMAL OPERATING CONDITIONS.
WE DO NOT RECOMMEND CLEANING THE
FILTER ELEMENT BECAUSE OF THE
POSSIBILITY OF DAMAGING IT.
CHECKING THE ELEMENT
To check for damage, pin holes, etc. shine a light
source into the end of the element. If light CANNOT
be seen through the paper, a new element should
be installed. Likewise, if pinholes of bright light
appear in the paper, the element should be
replaced.
INSTALLING ELEMENT
1. Clean the dust from inside the filter
housing with a damp cloth. Make sure that
dust does not enter the engine air intake.
2. Check the soft gasket material at both
ends of the element to be sure it is not
damaged.
3. Insert the open end of the element into the
housing and press it onto the air intake
pipe at the back of the housing. Make sure
the filter element fits over the pipe snugly
and is pushed all the way on to prevent
any dust from getting past the filter.
4. Install the air cleaner cover over the
element with the dust collector pointing
DOWN (dust collector empties
automatically when properly installed).
Secure the cover with the two wire bails
(See Fig. 34).
1
2
3
3

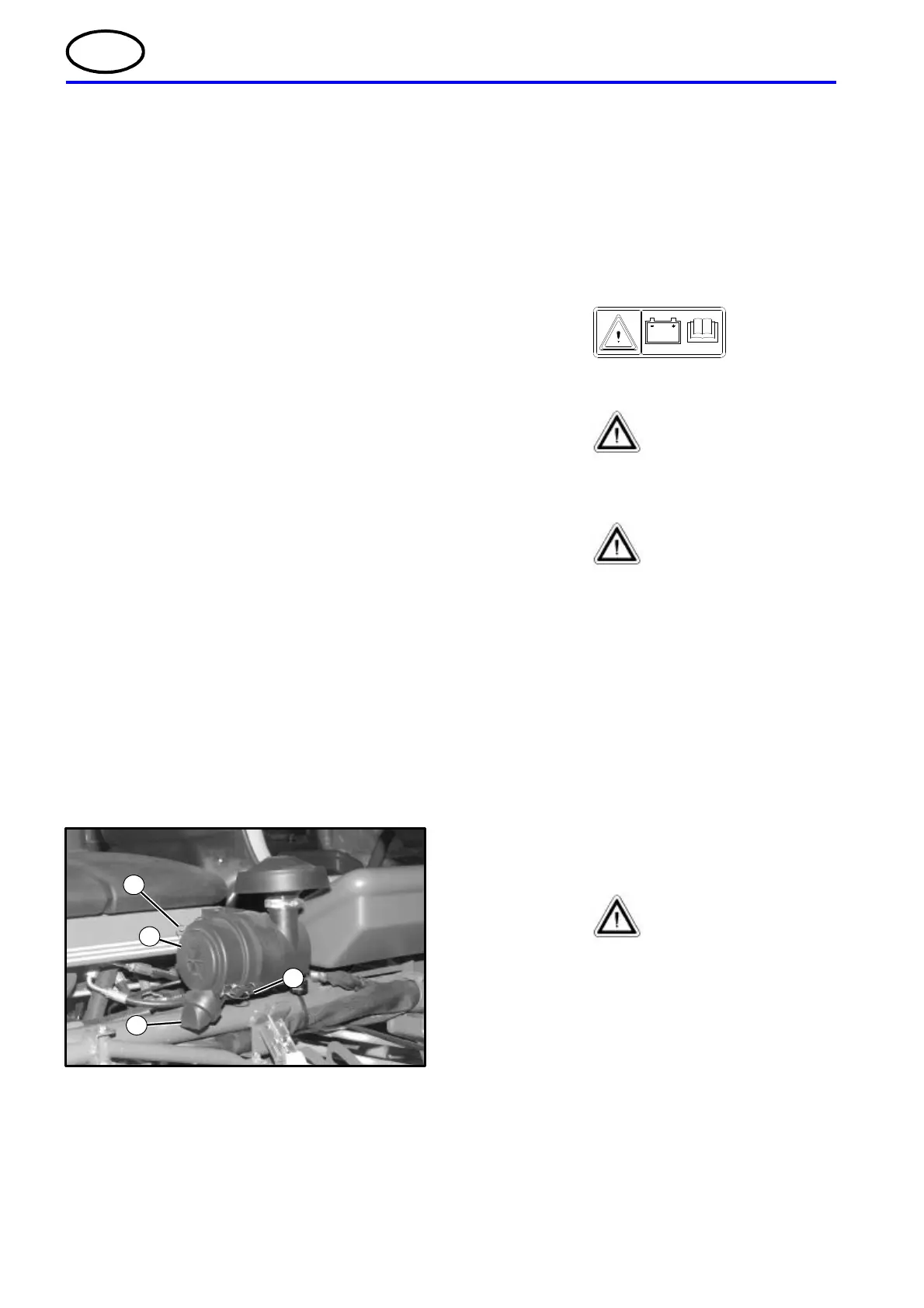

Figure 34
1. Cover
2. Dust Collector
3. Wire Bails
FUSES
The fuse block is located inside of the control panel.
Fuses on diesel units:
1. Engine fuel shut off circuit – 30 amp
2. Safety switches – 20 amp
3. Seat switch circuit – 20 amp
4. Headlight and Buzzer for Turf Protection
– 20 amp
BATTERY
840862
The factory installed battery is “Low Maintenance.”
Add liquid only as required.
WARNING
• UNTRAINED/UNAUTHORIZED persons
should NEVER attempt to service or
recharge the battery in this unit.
WARNING
• Battery electrolyte is an acidic solution and
should be handled with care. If electrolyte
is splashed on any part of the body,
immediately flush the exposed area with
liberal amounts of water and obtain
medical aid immediately.
NOTICE
• Keep top of battery clean and free of
corrosion by washing with a solution of
baking soda and water OR ammonia and
water. Rinse with clean water. Batteries
with heavy corrosion should be removed
and cleaned with solution.
• Battery cables should be disconnected
before using a “Fast Charger.”
JUMP STARTING
WARNING
• DO NOT allow flames or sparks near a
battery when connecting for jump starting
or charging.
• Hydrogen gas is produced during the
charging process and can be explosive.
Provide adequate ventilation to prevent
possible explosion.
Both booster battery and discharged battery should
be treated carefully when using jumper cables.
Follow these steps exactly, take care not to cause
sparks.
1. Set the parking brake and turn off any
electrical loads.
2. Attach one end of one jumper cable to the
positive terminal of the booster battery and
To Next Page
