Parts-32
JACOBSEN G PLEX II Series: ZV
MAINTENANCE AND
PARTS MANUAL

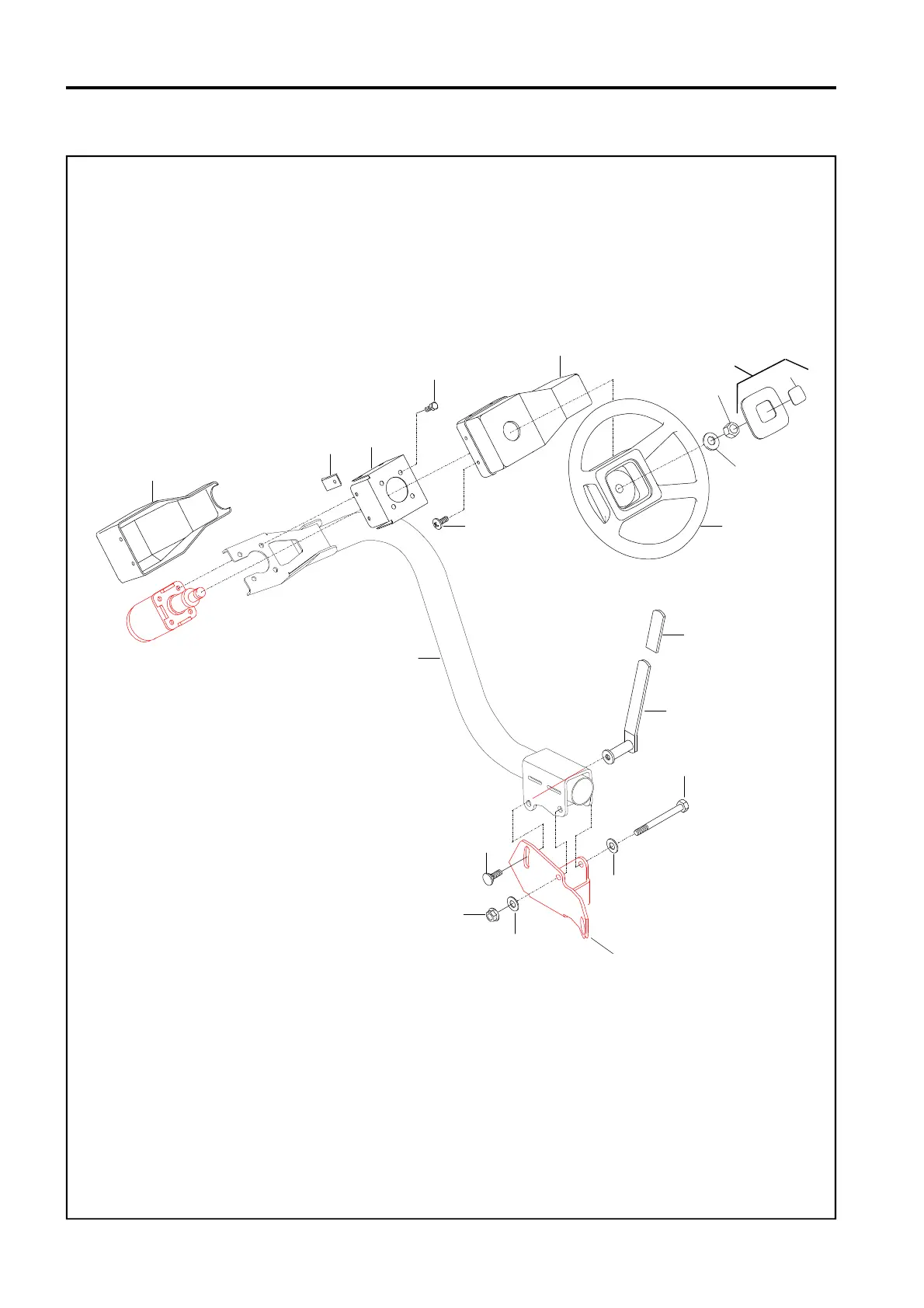

13
CONTROL ARM
1
1
3
4
5
6
7
10
8
9
11
12
13
14
15
16
17
2
CONTROL ARM
18
Reference
Frame
56
58
Table of Contents
Table of Contents
4
Chassis and Covers
27
Power Assy Diesel
29
Radiator (Diesel)
31
Air Cleaner (Diesel)
33
Hydraulic Tank Fittings
37
Fuel System
39
Oil Cooler Mounting
41
Head Lift and Pump Control Linkage
43
Hydraulic Pump and Valves
47
Hydraulic Lift Circuit
49
Hydraulic Reel Circuit
51
Hydraulic Wheel Drive Circuit
53
Hydraulic Power Steering
55
Control Arm
57
Lift Assembly - Front Cutting Heads
59
Lift Assembly - Rear Cutting Head
61
Mow / Raise Pedal and Speed Control Pedal
65
Mow Speed Control
67
Brake Pedal
69
Seat
71
Decals
73
Control Panel and Electrical Components (Us)
75
Electrical Components (Us)
79
Control Panel and Electrical Components (Uk)
81
Electrical Components (Uk)
83
Wheels and Rear Hub
85
Counter Weight and Motor Mounting
87
Reel Assembly - 1
89
Reel Assembly - 2
89
Rear Roller
93
Cutting Head
97
Accesory - Rotary Rear Brush 892327
101
Accesory - Front Roll Scraper 892329
103
Accesory
107
Accesory
108
Groomer Accesory
109
Verticutter Accesory
113
Accesory - Rear Roller Scraper
117
