JACOBSEN G PLEX II Series: ZV

MAINTENANCE AND PARTS MANUAL

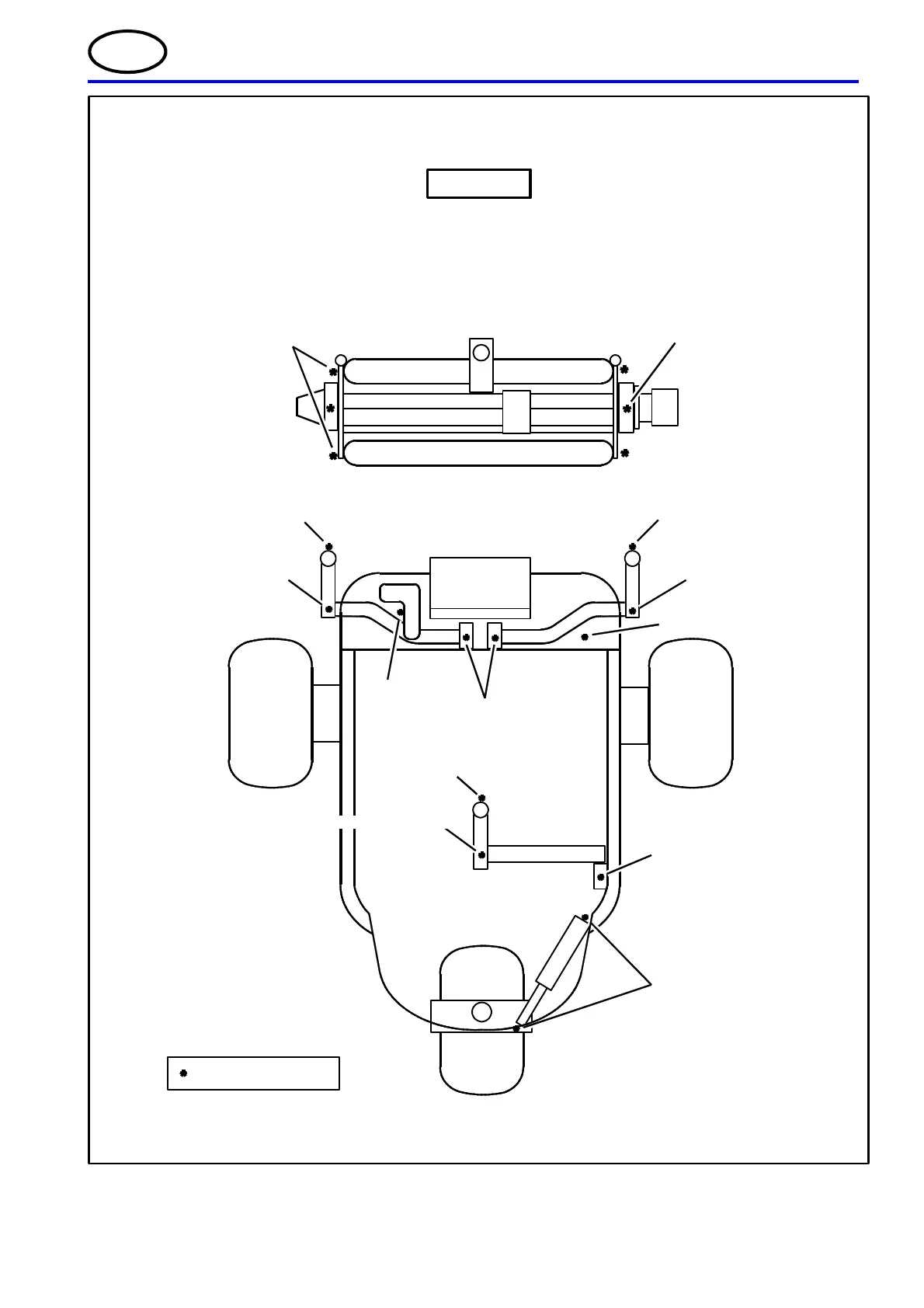

LUBE CHART

NOTICE

Lubricate sparingly with a lithium based lubricant. Excess

lubrication may drop from unit and cause turf damage.

Rollers

(both ends)

Reel Bearings

(both ends)

Cutting Head Pivot

Lift Arm Pivots

Lift Arm Pivot

Steering Cylinder

Cutting Head Pivot

Cutting Head Mount

Mow/

Lift

Pedal

Pivot

Mow/Speed Control Pivot

Lubrication Points
