TEXTRON
LYCOMING
OPERATOR'S
MANUAL
SECTION
7
0-540
& 10-540
SERIES
FUEL INLET STRAINER
FUEL PRESSURE
CONNECTION
MIXTURE
CONTROL
LEVER
THROTTLE
LEVER
-
BOWL DRAIN PLUG

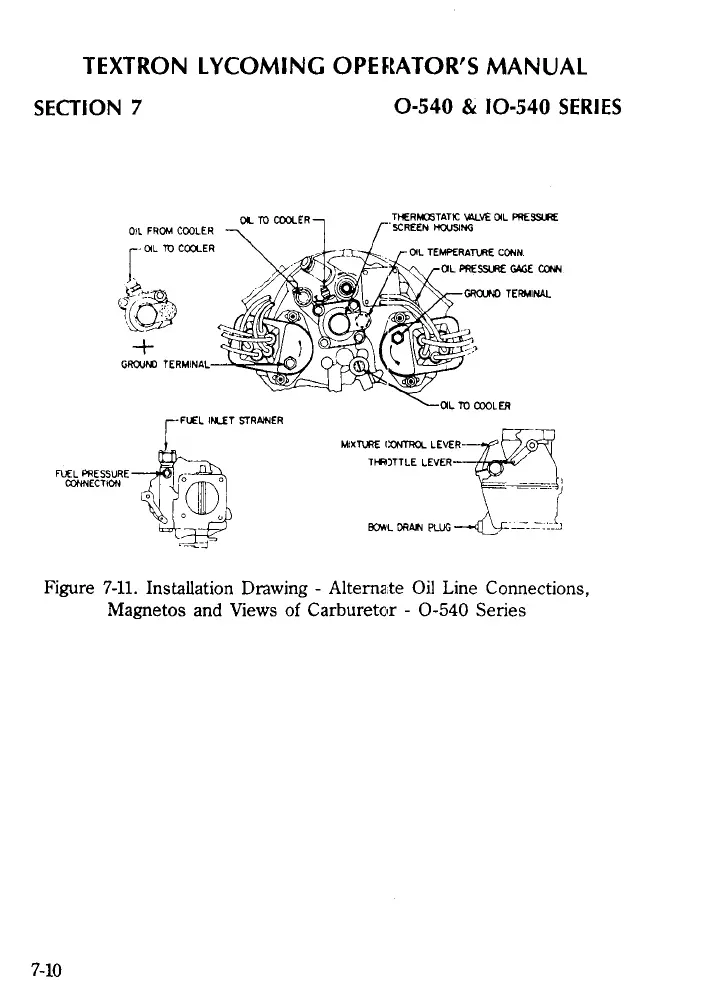

Figure 7-11.
Installation
Drawing - Alternate
Oil Line
Connections,
Magnetos
and Views of Carburetor
- 0-540 Series
7-10
