TEXTRON
LYCOMING
OPERATOR'S
MANUAL
SECTION 3 0-540 & 10-540 SERIES
CURVE 12742-A
PART
THROTTLE
FUEL CONSUMPTION
LYCOMING 10-540-A-B-E-G-P SERIES
COMPRESSION
RATIO
8.70:1
SPARK TIMING 20 BTC
FUEL INJECTOR BENDIX RS-IO
MIXTURE
CONTROL - MANUAL
TO BEST ECONOMY OR
BEST
POWER AS INDICATED
FUEL
GRADE,MINIMUM
100/100LL
22
21
20
19
18
17
16
15
14
13
12
11
10
PERCENT
RATED
POWER 85
NOTE
FUEL CONSUMPTION
FOR RATED
POWER
IS 24.6 U.S GAL/HR
45
100 120 140 160 200 220 240 260 280 300
ACTUAL
BRAKE
HORSEPOWER

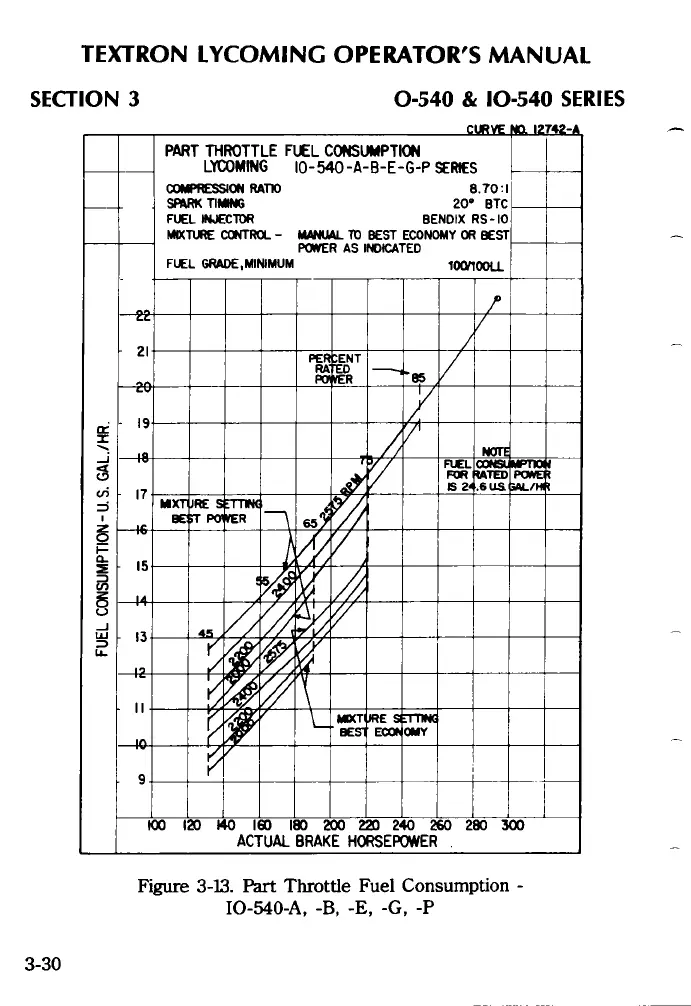

Figure 3-13. Part
Throttle Fuel Consumption
-
IO-540-A, -B, -E, -G, -P
3-30
