TEXTRON LYCOMING OPERATOR'S MANUAL
SECTION 5
0-540 & 10-540
SERIES

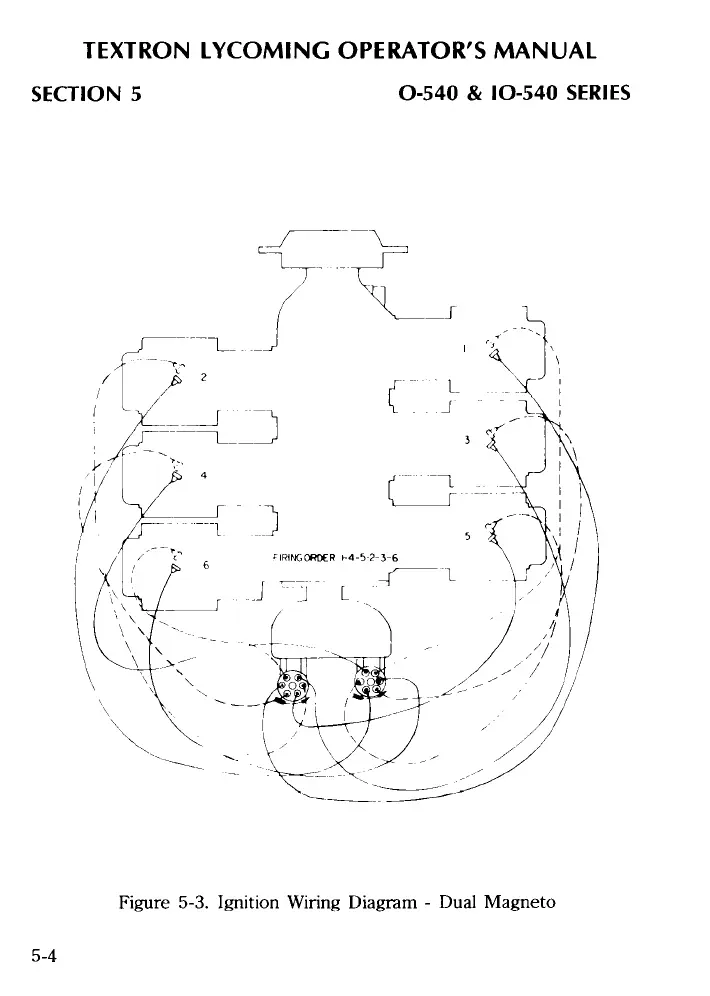

Figure 5-3. Ignition
Wiring Diagram - Dual
Magneto
5-4
