1. Introduction
This new wireless weather station consists on a base station with indoor sensors
for room temperature, humidity and atmospheric pressure and several outdoor
sensors for measuring outdoor temperature, humidity, wind velocity and quantity
of rainfall.
So you get useful information about climate and weather in and around your
house. This is fun and makes you curious to know more.
Please read this instruction manual thoroughly to fully understand the correct
operation of your weather station and benefit from its unique features.
1.1 Features
• Wireless transmission of outdoor temperature, humidity, quantity of rainfall and
wind velocity from the exterior sensors to the display station (868 MHz)
• Particularly secure data transmission by connecting each transmitter with cable,
long-distance range up to 100 m (free field)
• Indoor temperature and humidity
• Weather forecast with symbols and tendency of atmospheric pressure
• Absolute and relative atmospheric pressure
• Bar graph indication of atmospheric pressure for the last 24 hours
• 24 hours history
• Windchill factor and dewpoint
• Programmable alarm functions for certain weather conditions, like temperature
alarm, storm warning
• Maximum and minimum values with time and date of recording
• Radio controlled clock with alarm and date
• Time zone ±12 hours, manual time setting possible
• Backlight (when using buttons)
• For wall mounting or table standing
2. Inventory of contents
Content
Display Station:
• Batteries 3 x 1,5 V AA
Sensor:
• Thermo-Hygro-Sensor
• Batteries 2 x 1,5 V AA
• Rain protection cover
• Wind sensor
• Rain sensor
• 2 connecting cables to Thermo-Hygro-Sensor
• Mast
• Mounting material
Manual
STRATOS – Wireless weather station
18
2.1 Base station
Front view
Back view
2.2 Thermo-hygro sensor
The thermo-hygro sensor measures the outdoor temperature
and humidity. In addition it is the main data communication
unit: The wind and rain sensors are connected to the thermo-
hygro sensor for operating power and to communicate to the
base station. Weather data sent from the thermo-hygro sensor
is transmitted through wireless link. The radio controlled time
receiver is built inside the sensor.
STRATOS – Wireless weather station
19

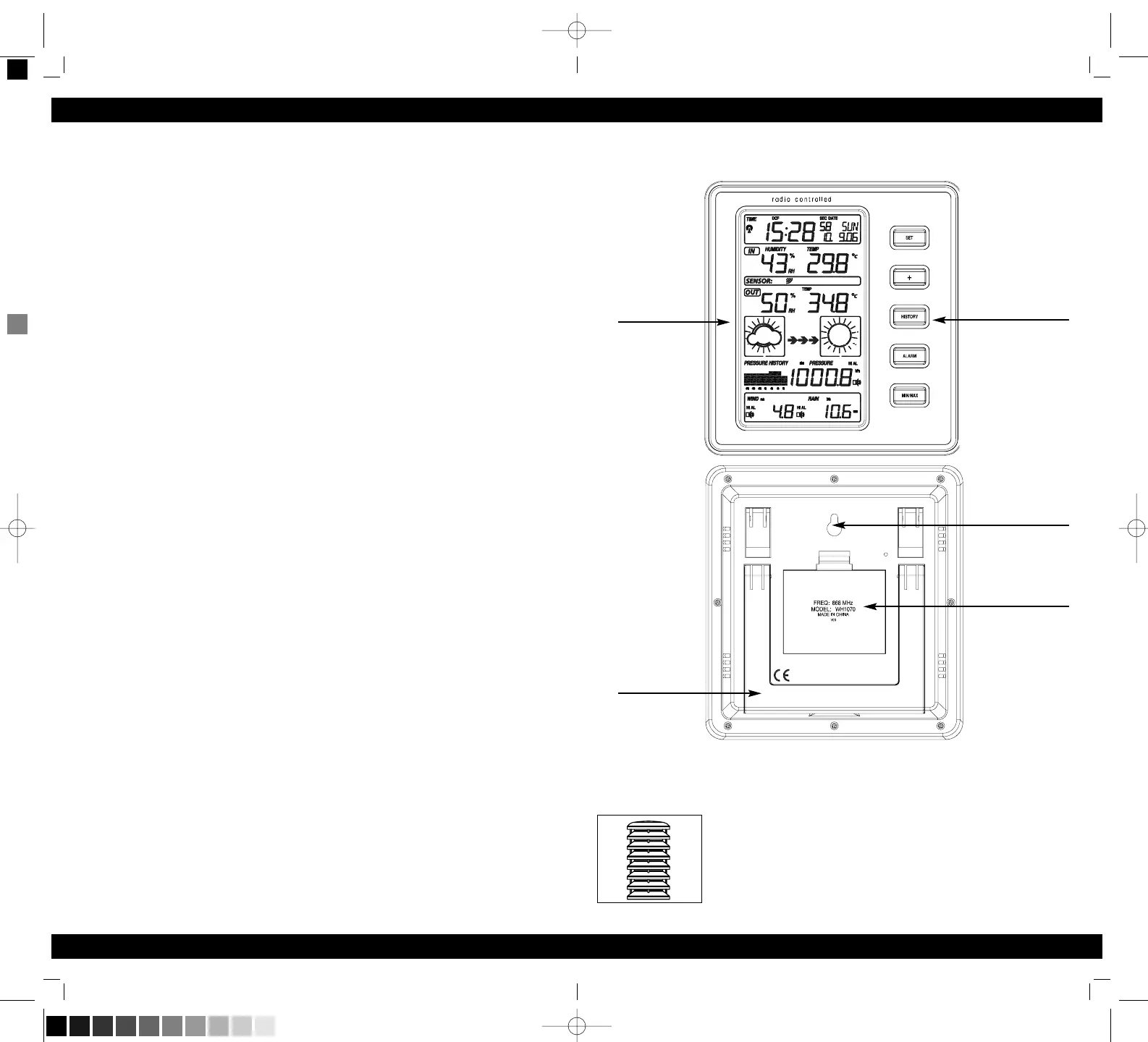

LCD
Stand
Buttons
Wall Mount Hole
Battery
Compartment
