How to Remove the Electrical control
box

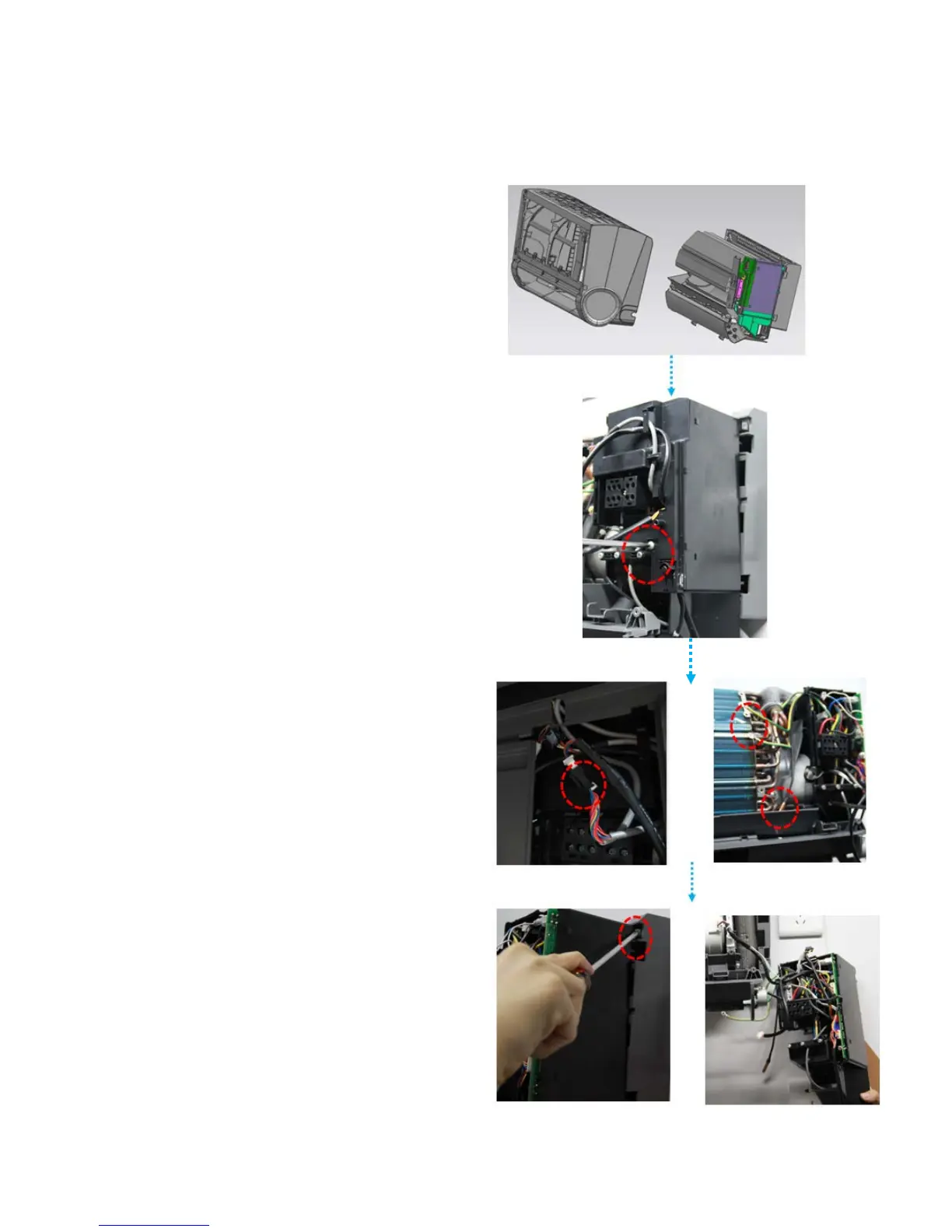

STEP1:
Separate the frame part and the base plate
part；
STEP2:
Remove the Screw on the cover of the
electrical control box.
STEP3:
Disconnect the wires of the motor and the
V-shape light,
then pull out the coil temp and
loose the earth wire.
STEP4:
Press the snap-fit with the screw-driver, and
then remove the electrical control box.
