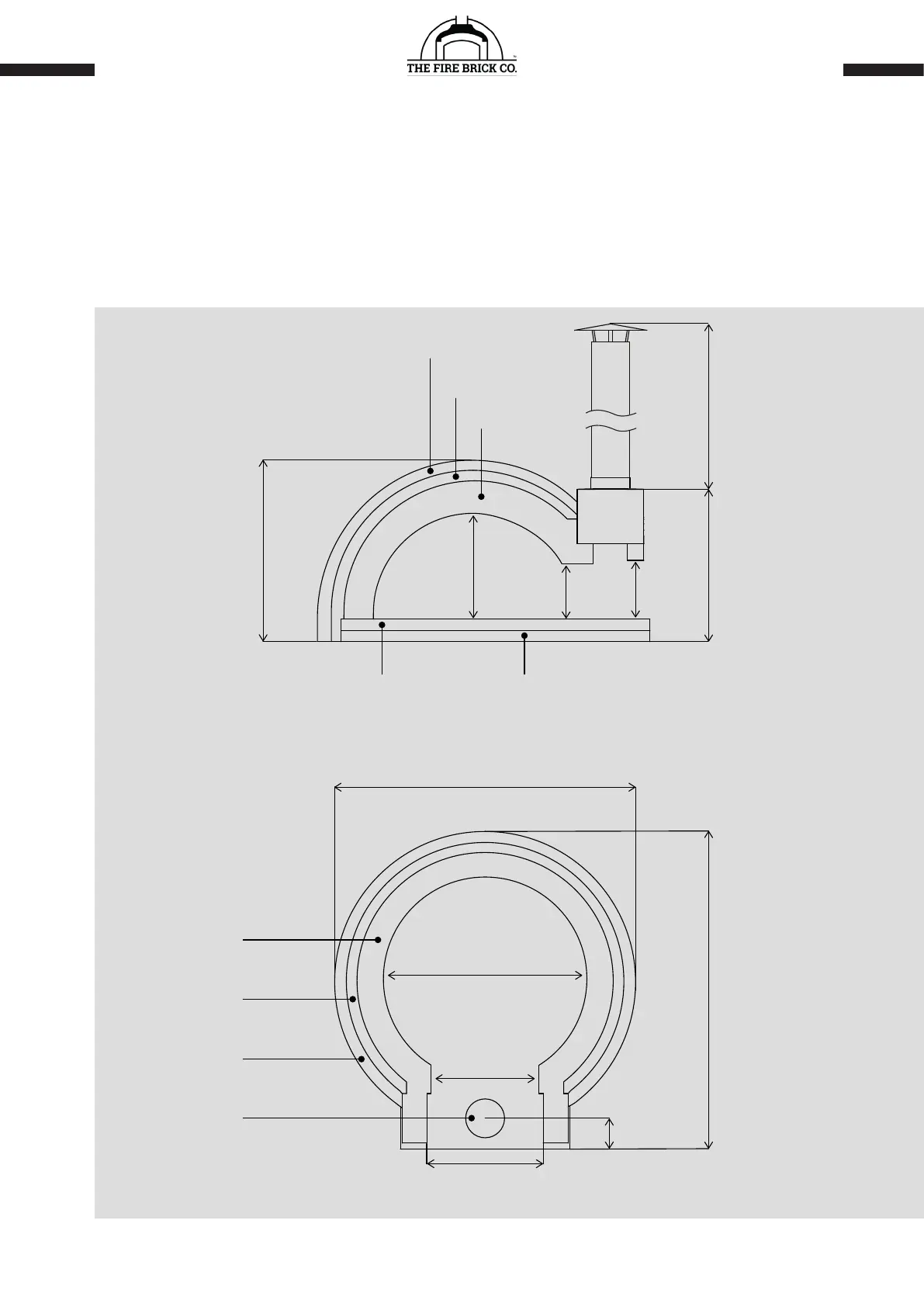

The Fire Brick D95 - Layout Drawing

13
D95 Layout Drawing
115 mm
Fire Brick Dome Wall
50 mm
Ceramic Fibre Insulation
50 mm
Perlite Render Insulation
7 inch
Stainless Steel Flue
950 mm
Internal Diameter
500 mm
540 mm
~ 150mm
Center of Flue
1380 mm
Overall Width
1475 mm
Overall Depth
50 mm
Fire Brick Tile Floor
PreCast Flue
Gallery
50 mm
Calcium Silicate Board
50 mm
Ceramic Fibre Insulation
50 mm
Perlite Render Insulation
115 mm
Fire Brick Dome Wall
1050 mm
Flue Height
695 mm
Oven Height
~ 790 mm
External Dome Height
475 mm
Internal
Dome Height
335 mm 345 mm
Layout Drawing
