The Handy THMT26 - Assembly; Line Trimmer and Brushcutter Assembly

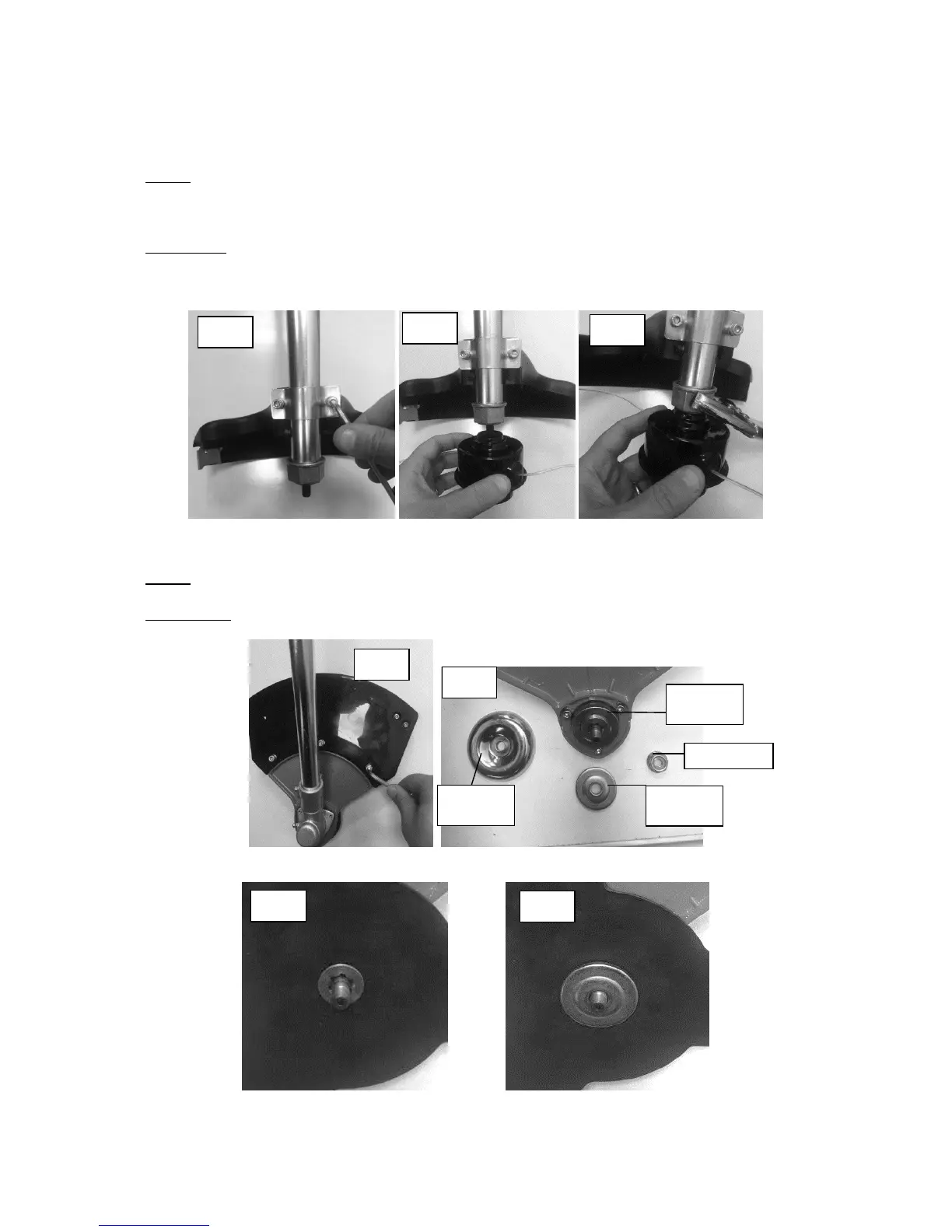

ASSEMBLY
LINE TRIMMER ATTACHMENT
GUARD
Place the guard onto the bent shaft of the Line Trimmer Attachment. The bracket is placed on the top of the
shaft and the guard sits underneath. They are secured with two 4mm Allen Key Bolts. Tighten until secure.
(Fig 1)
NYLON HEAD
The Nylon Head is secured to the shaft, by rotating clockwise. Do so until you reach the end of the thread
(Fig 2). Secure the large nut with a suitable Spanner or Mole Grip and hand tighten until secure. (Fig 3)
BRUSHCUTTER ATTACHMENT
GUARD
Place the plastic guard onto the small metal guard & secure with three 5mm Allen Key bolts. (Fig 4).
METAL BLADE
Remove the Blade Nut, Cup & Clamp Washers. The Stepped Washer must remain (Fig 5).
Now place the blade onto the Stepped Washer, ensuring the step of the washer is placed into the hole of the
blade (Fig 6). Sit the Clamp Washer onto the blade (Fig 7).
Fig 1
Fig 2
Fig 3
Fig 4
Fig 6
Fig 7
CUP
WASHER
CLAMP
WASHER
STEPPED
WASHER
BLADE NUT
Fig 5
