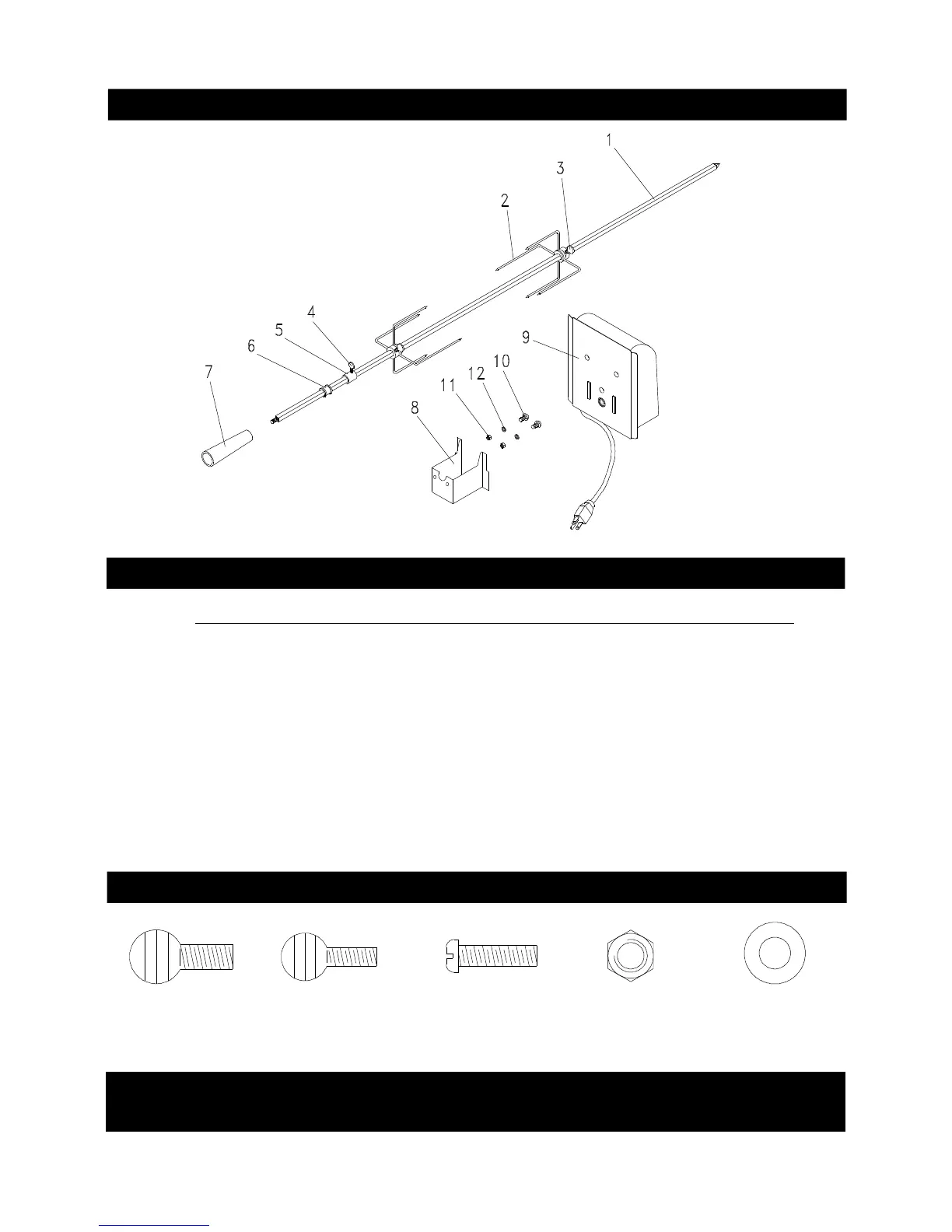

Y0250052 Rotisserie Assembly Parts Diagram
Hardware for Rotisserie
Y0250052 Rotisserie Assembly Parts List
REF#
PART#
DESCRIPTION
QTY
1
2
3
4
5
6
7
8
9
10
11
12
Rot. Spit
Rot. Holding Fork
Rot. Thumbscrew 1/4"x1/2"
Rot. Thumbscrew #10x1/2"
Rot. Collar
Rot. Bushing
Rot. Handle
Rot. Motor Bracket
Rot. Motor/AC
Rot. Phillips Head Screw #10-24x3/4" UNC
Rot. Hex Nut #10-24 UNC
Rot. Plain Washer 3/16"
P05508054A
P05508077A
S196G04081
S196G10081
P05508032A
P05508033A
P05508076E
P03308002A
P07101017B
S112G10124
S362G10124
S411G03084
1
2
2
1
1
1
1
1
1
2
2
2
Rot. Plain Washer 3/16"
Qty. 2
Ref. # S411G03084
Rot. Hex Nut #10-24 UNC
Qty. 2
Ref. #S362G10124
Rot. Thumbscrew 1/4"x1/2"
Qty. 2
Ref. #S196G04081
Rot. Thumbscrew #10x1/2"
Qty. 1
Ref. #S196G10081
Rot. Phillips Head Screw
#10-24x3/4" UNC
Qty. 2
Ref. #S112G10124
