The Source SOURCE04BLP - Assembly Instructions: Gas Connections; Connecting Side Burner Hose and Regulator Bracket

19

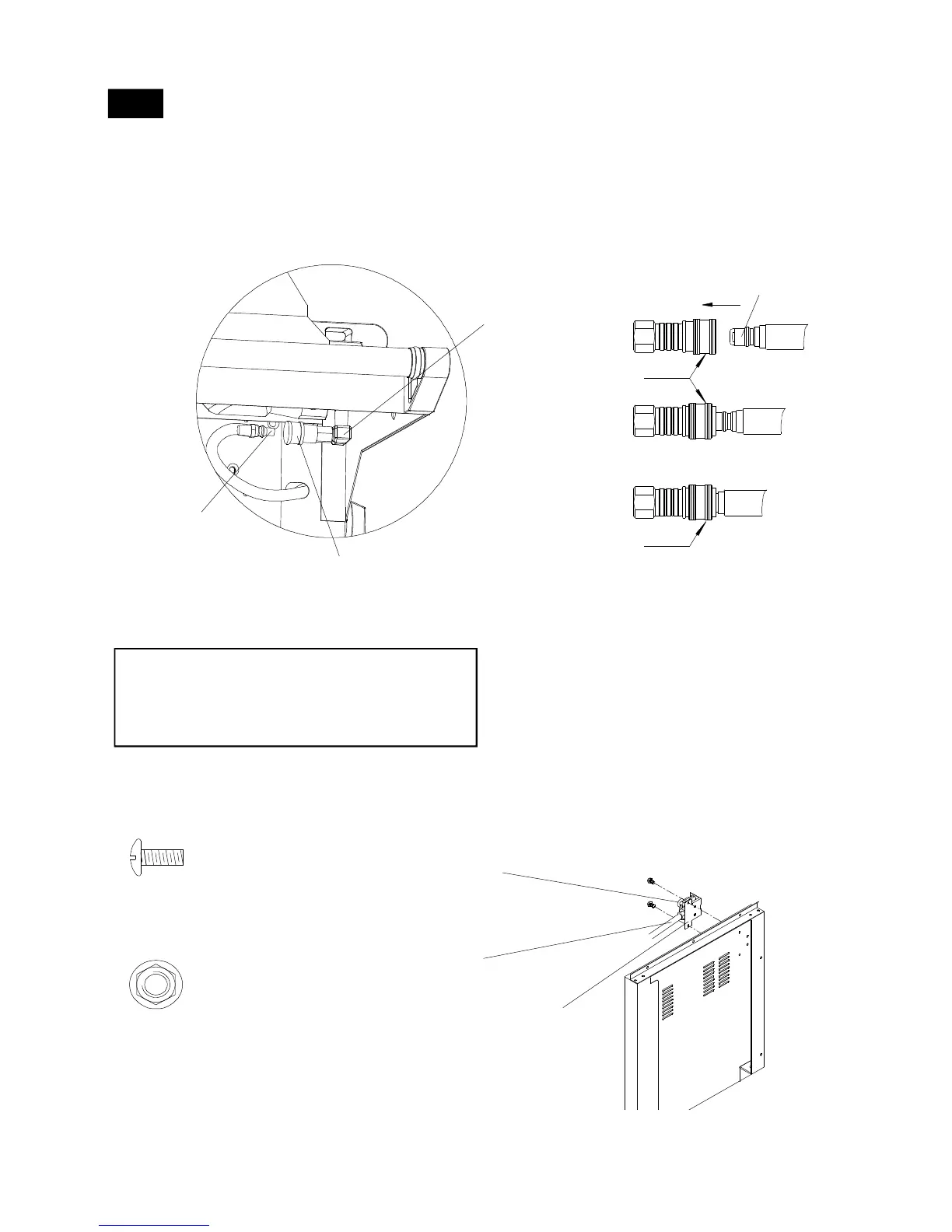

Install The Side Burner Connection Hose
1. Install the Side Burner Connection Hose into Socket as shown in Figure 1.
2. To connect, push back Sleeve of the Socket. See Figure 1a. Insert Plug then release Sleeve. See Figure 1b.
Push Plug until sleeve snaps forward locking the Plug into the Socket. See Figure 1c.
7
(Natural Gas only)
SOCKET
PLUG
SLEEVE
SLEEVE
1a
1b
1c
For Natural Gas Models attach the Regulator
Bracket to Left Cart Side Panel using two 3/16"x
1/2" Phillips Head Screws and two 3/16" Flange Nuts
tightly. See Figure 2 below.
Figure 1
Figure 2
Phillips Head Screw 3/16"x1/2"
Qty. 2
Ref. # S112G03081
EXTENSION HOSE
REGULATOR ASSEMBLY / NG
REGULATOR BRACKET
Flange Nut 3/16"
Qty. 2
Ref. # S313G03051
SIDE BURNER
CONNECTION HOSE
SIDE BURNER
GAS VALVE
SOCKET
