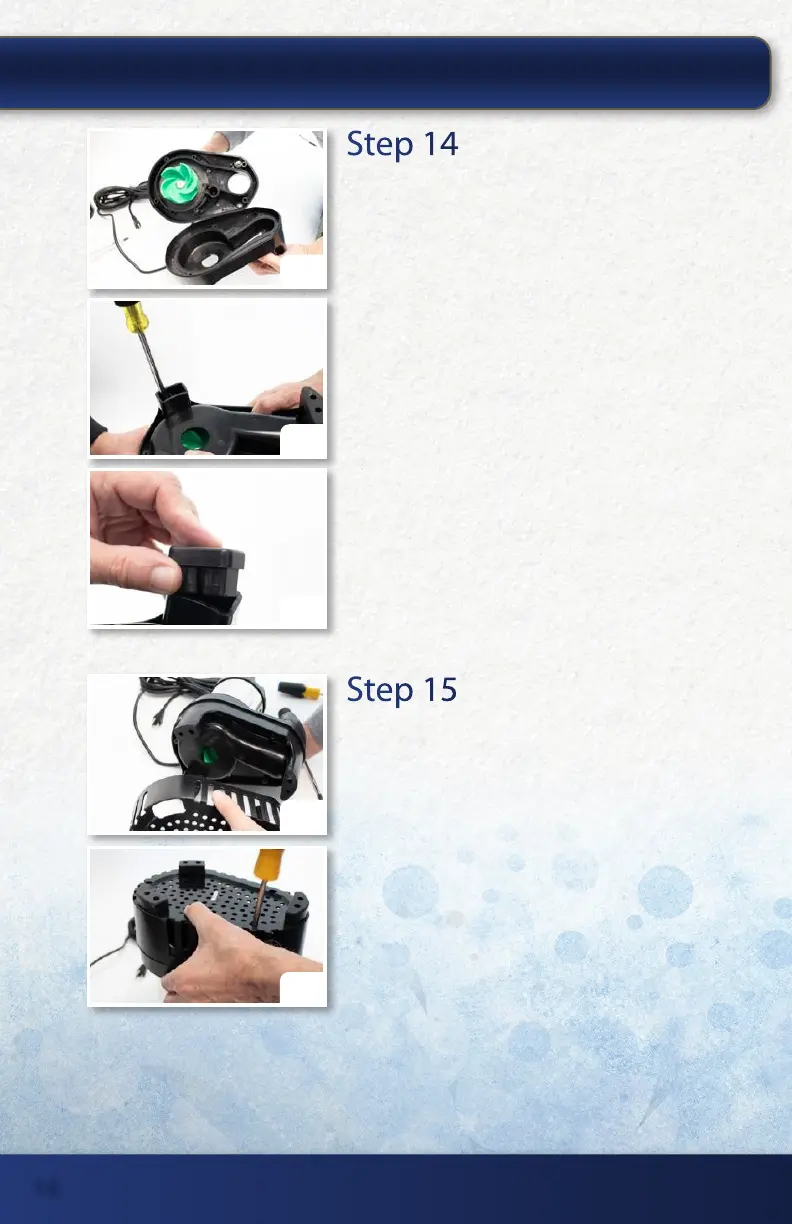

Step 14
Secure Inner Base
Align the inner pump base and the bottom of the
pump (14a). Using a #3 Phillips screwdriver, insert and
tighten the fth inner pump base screw under where
you removed the rubber footing in Step 3 on Page 7
(14b). Secure the rubber footing over the screw hole
(14c). Insert and tighten the four remaining pump
base screws.
Step 15
Reinstall Pump Base/Intake Screen
Align the pump base and intake screen (15a). Using
a #2 Phillips screwdriver, insert and tighten the three
screws for the pump base/intake screen (15b).
14a
14b
14c
15a
15b
thepondguy.com | 866-POND-HELP (766-3435)
14
EXTENDED MAINTENANCE RAPIDFLO PUMP:
