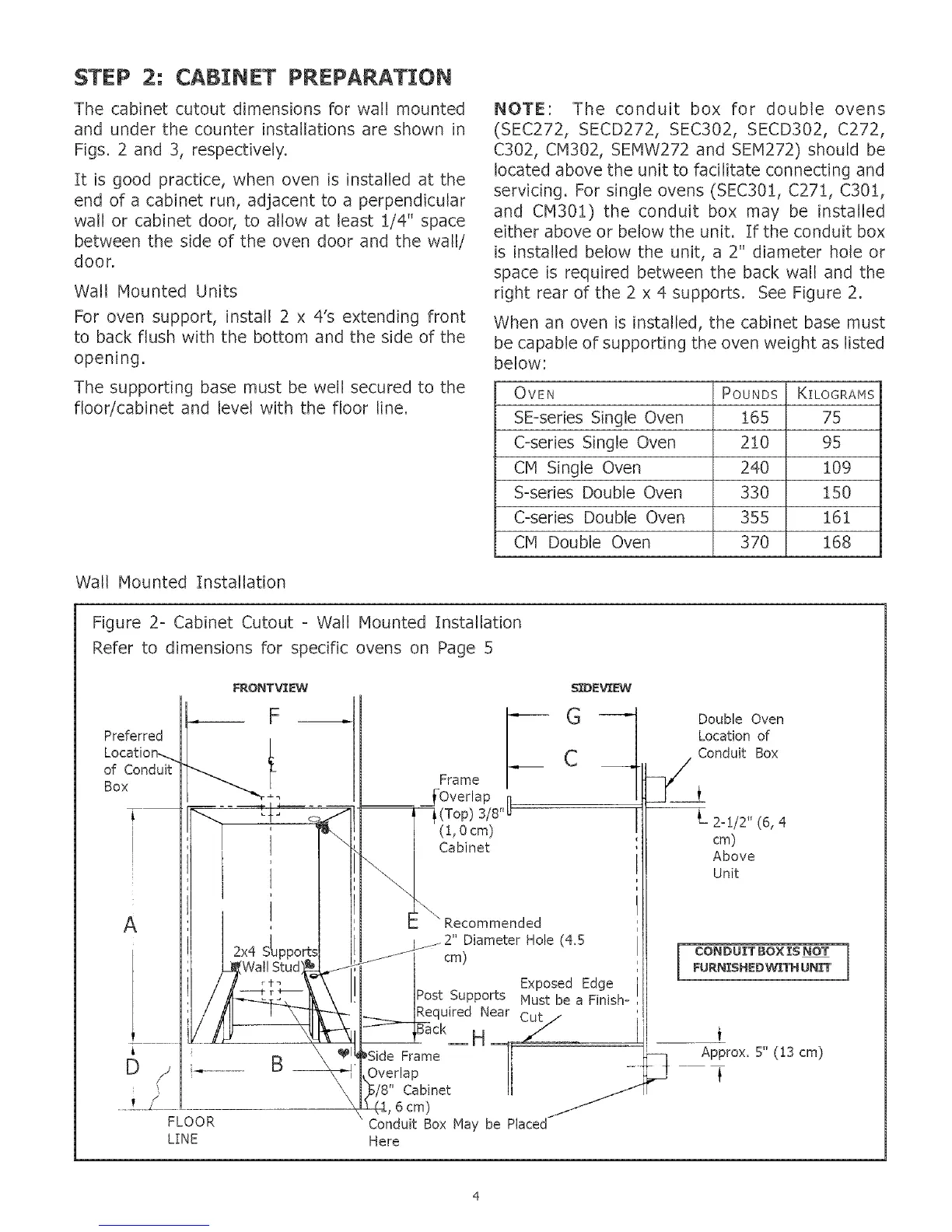

STEP 2: CABINET PREPARATION
The cabinet cutout dimensions for wall mounted
and under the counter installations are shown in
Figs, 2 and 3, respectively,
It is good practice, when oven is installed at the
end of a cabinet run, adjacent to a perpendicular
wall or cabinet door, to allow at least 1/4" space
between the side of the oven door and the wall/
door,
Wall Mounted Units
For oven support, install 2 x 4's extending front
to back flush with the bottom and the side of the
opening.
The supporting base must be well secured to the
floor/cabinet and level with the floor line.
NOTE: The conduit box for double ovens
(SEC272, SECD272, SEC302, SECD302, C272,
C302, CM302, SEMW272 and SEM272) should be
located above the unit to facilitate connecting and
servicing. For single ovens (SEC30!, C27!, C30!,
and CM301) the conduit box may be installed
either above or below the unit. If the conduit box
is installed below the unit, a 2" diameter hole or
space is required between the back wall and the
right rear of the 2 x 4 supports. See Figure 2.
When an oven is installed, the cabinet base must
be capable of supporting the oven weight as listed
below:
OVEN POUNDS KILOGRAPIS
SE-series Single Oven 165 75
C-series Single Oven 2!0 95
CN Single Oven 240 !09
S-series Double Oven 330 !50
C-series Double Oven 355 16!
CM Double Oven 370 168
Wall Mounted Installation
Figure 2- Cabinet Cutout - Wall Mounted Installation
Refer to dimensions for specific ovens on Page 5
Preferred
Location-._
of Conduit
Box
A
D /
/
/
.......!__f_
2x4
FLOOR
LINE
S_DEWL_4
Frame
[Overlap [l
(Top) 3/8" u
(1, Ocm)
Cabinet
G
C
_2" Diameter Hole (4.5
cm)
Exposed Edge
_ost Supports Must be a Finish°
Required Near Cut /"
3ack m
_Side Frame II _
Overlap Ii - _-_
Cabinet II j _f
Conduit Box May be Placed
Here
Double Oven
Location of
Conduit Box
Y,
1- 2ol/2" (6, 4
cm)
Above
Unit
CONDUIT BOX IS NOT
FURNISHEDWITH UNIT
Approx. 5" (13 cm)
To Next Page
