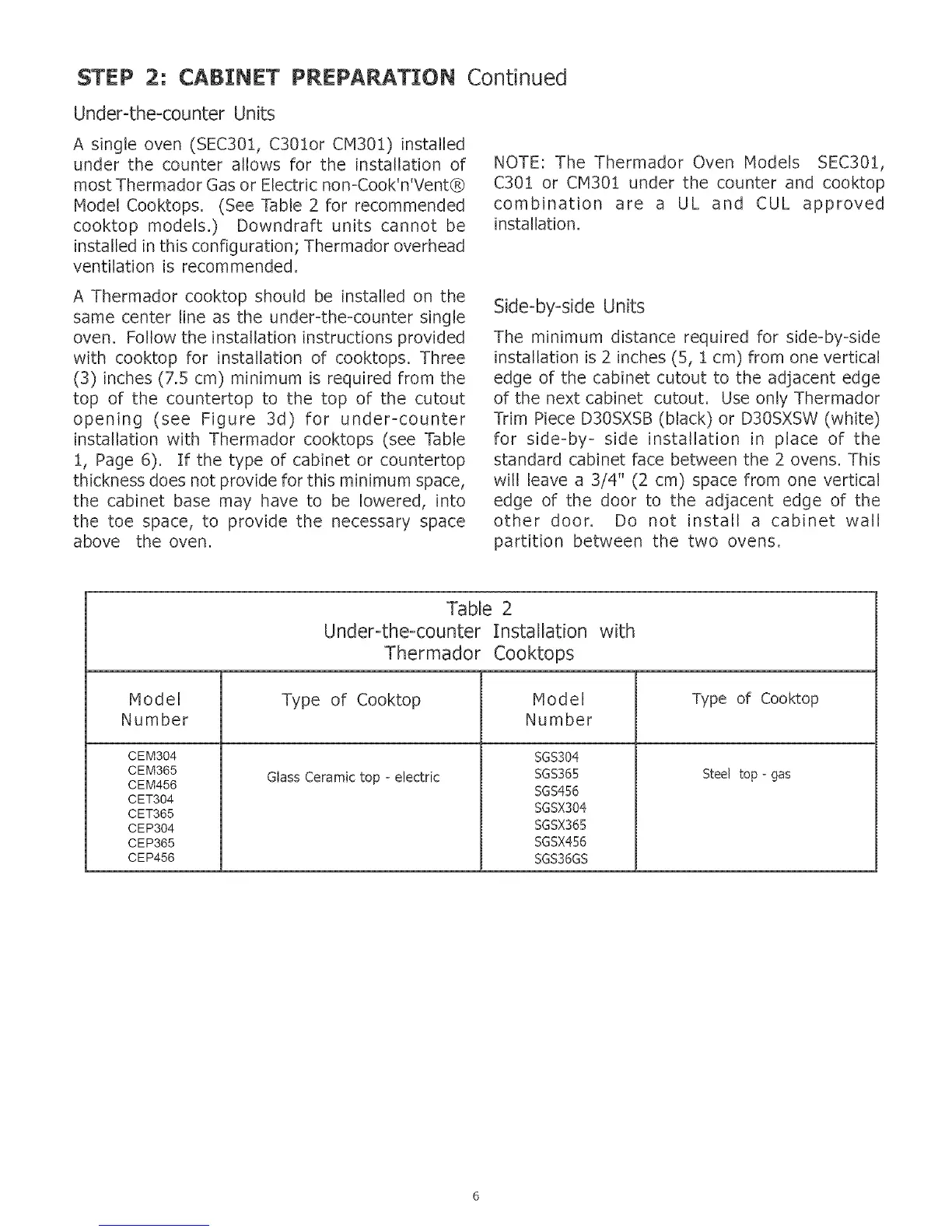

STEP 2: CABINET PREPARATION Continued
Under-the-counter Units
A single oven (SEC301, C301or CM301) installed
under the counter allows for the installation of
most Thermador Gas or Electric non=Cook'n'Vent®
Model Cooktops. (See Table 2 for recommended
cooktop models.) Downdraft units cannot be
installed in this configuration; Thermador overhead
ventilation is recommended.
A Thermador cooktop should be installed on the
same center line as the under=the=counter single
oven. Follow the installation instructions provided
with cooktop for installation of cooktops. Three
(3) inches (7.5 cm) minimum is required from the
top of the countertop to the top of the cutout
opening (see Figure 3d) for under=counter
installation with Thermador cooktops (see Table
1, Page 6). If the type of cabinet or countertop
thickness does not provide for this minimum space,
the cabinet base may have to be lowered, into
the toe space, to provide the necessary space
above the oven.
NOTE: The Thermador Oven Models SEC301,
C30! or CM301 under the counter and cooktop
combination are a UL and CUL approved
installation.
Side°by°side Units
The minimum distance required for side=by=side
installation is 2 inches (5, ! cm) from one vertical
edge of the cabinet cutout to the adjacent edge
of the next cabinet cutout. Use only Thermador
Trim Piece D30SXSB (black) or D30SXSW (white)
for side=by= side installation in place of the
standard cabinet face between the 2 ovens. This
will leave a 3/4" (2 cm) space from one vertical
edge of the door to the adjacent edge of the
other door. Do not install a cabinet wall
partition between the two ovens.
Model
Number
CEM304
CEM365
CEM456
CET304
CET365
CEP304
CEP365
CEP456
Table 2
Under-the-counter Installation with
Thermador Cooktops
Type of Cooktop
Glass Ceramic top - electric
Model
Number
SGS304
SGS365
SGS456
SGSX304
SGSX365
SGSX456
SGS36GS
Type of Cooktop
Steel top - gas
To Next Page
