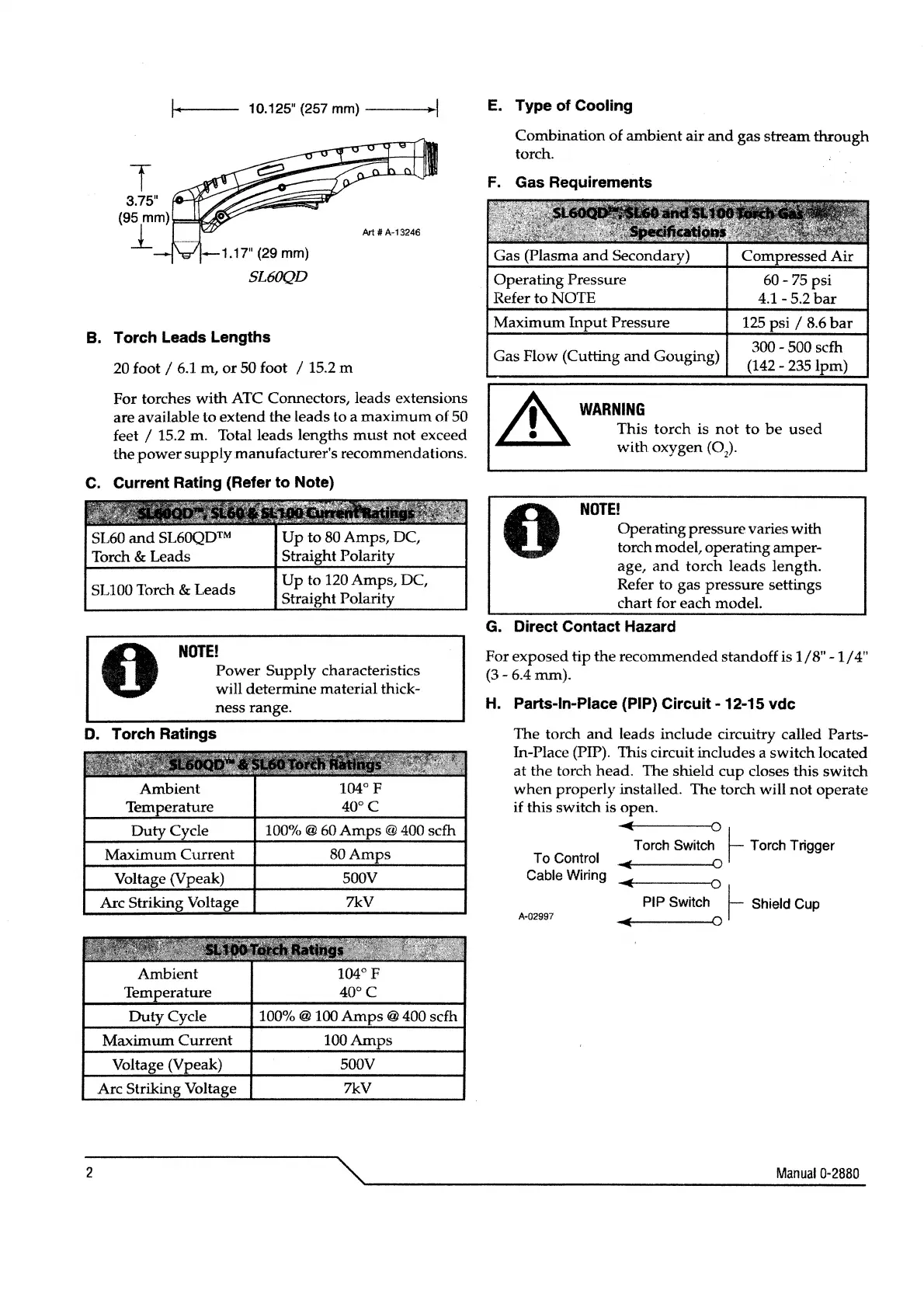

Thermal Dynamics 1Torch SL60 User Manual

1-4-1•--- 10.125" (257 mm) ---~~>I
T
1.17" (29 mm)
SL60QD
B. Torch Leads Lengths
Art# A-13246
20 foot I 6.1 m, or 50 foot I 15.2 m
For torches
with ATC Connectors, leads extensions
are avail.able to extend the Ieads lo a
maximum of 50
feet
I 15.2 m. Total Ieads lengths must not exceed
the power supply manufacturer's recommendations.
C. Current Rating (Refer to Note)
SLlOO Torch & Leads
NOTE!
0
Power Supply characteristics
will
determine material thick-
ness range.
D. Torch Ratings
100%@ 60
Maximum Current
7kV
E. Type of Cooling
Combination of ambient air
and gas stream through
torch.
F. Gas Requirements
60-75 psi
4.1-5.2 bar
125 I 8.6 bar
Gas Flow (Cutting and Gouging)
~ WARNING
~ This torch is not to be used
with oxygen (0
2
).
0
NOTE!
Operatingpressure varies with
torch model, operating amper-
age,
and torch leads length.
Refer to gas pressure settings
chart for each model.
G. Direct Contact Hazard
For exposed
tip the recommended standoff is 1/8" -11 4"
(3-6.4mm).
H. Parts-ln-Piace (PIP) Circuit -12-15 vdc
The torch
and Ieads include circuitry called Parts-
ln-Piace (PIP). This circuit includes a switch located
at the torch head. The shield cup closes this switch
when properly installed. The torch will not operate
if this switch is open.
1111( 0
Torch Switch I Torch Trigger
To Control
111(
0
I
Cable Wiring .... ttti(E-----.
PIP Switch
0
I Shield Cup
A-02997 111( 0 I
2 '\.. Manual 0-2880
'------------------------------
