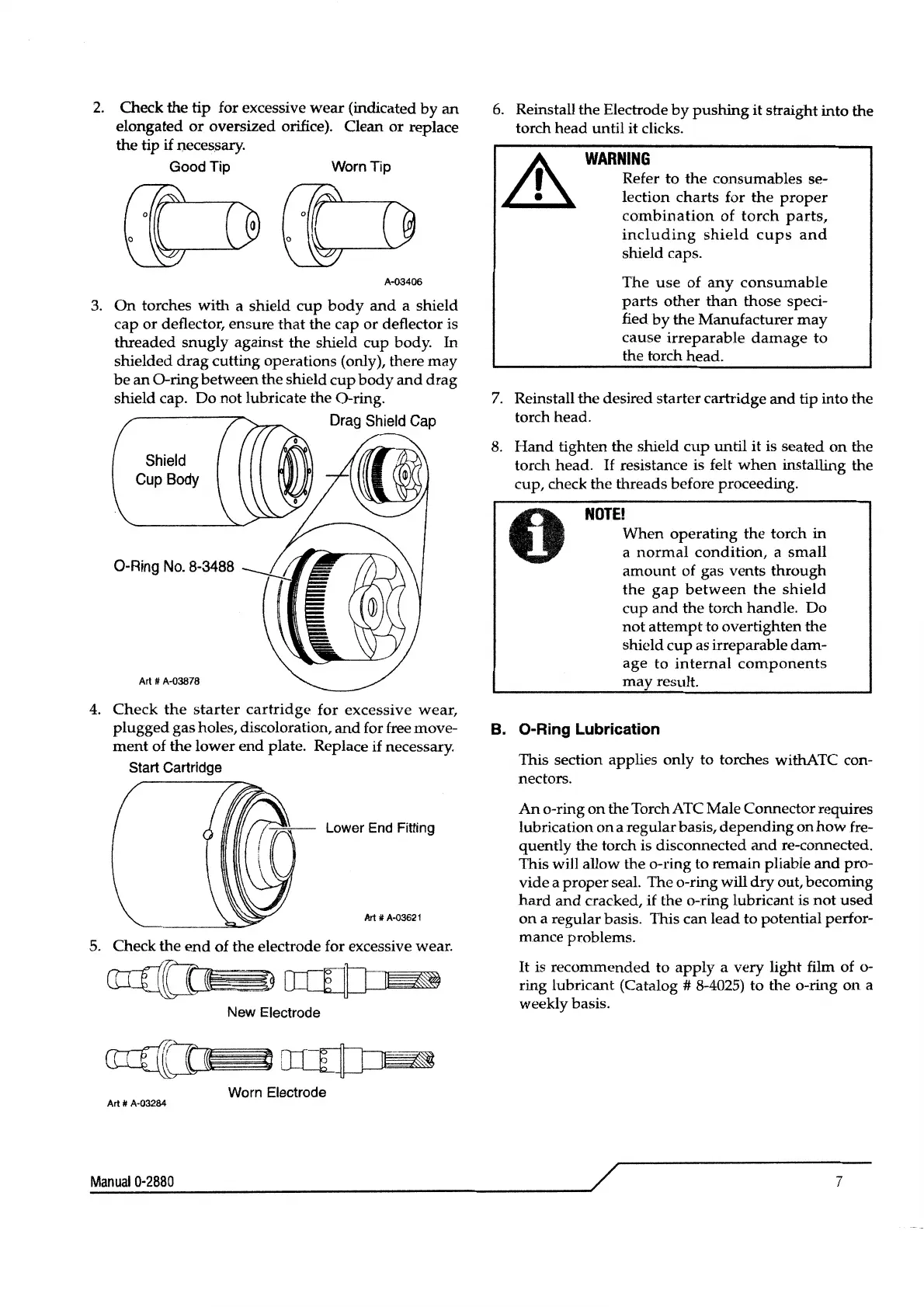

2. Check the tip for excessive wear (indicated by an
elongated or oversized orifice). Clean or replace
the tip if necessary.
Good Tip Worn Tip
A-Q3406
3. On torches with a shield cup body and a shield
cap or deflector, ensure that the cap or deflector is
threaded snugly against the shield cup body. In
shielded drag cutting operations (only), there may
be an 0-ring between the shield cup body and drag
shield cap. Do not lubricate the 0-ring.
Shield
Cup Body
0-Ring No. 8-3488
Art # A-Q3878
Drag Shield Cap
4. Check the starter cartridge for excessive wear,
plugged gas holes, discoloration, and for free move-
ment of the lower end plate. Replace if necessary.
Start Cartridge
Lower End Fitting
Art il A-Q3621
5. Check the end of the electrode for excessive wear.
rrr-rl~ n-J~Ih-~
~~U-
New Electrode
Worn Electrode
Art# A-03284
6. ReinstaU the Eiectrode by pushing it straight into the
torch head until it clicks.
WARNING
Refer to the consumables se-
lection charts for the proper
combination of torch parts,
including shield cups and
shield caps.
The use of any consumable
parts other than those speci-
fied by the Manufacturer may
cause irreparable darnage to
the torch head.
7. Reinstall the desired starter cartridge and tip into the
torch head.
8. I-land tighten the shield cup until it is seated on the
torch head. If resistance is felt when installing the
cup, check the threads before proceeding.
NOTE!
When operating the torch in
a normal condition, a small
amount of gas vents through
the gap between the shield
cup and the torch handle. Do
not attempt to overtighten the
shield cup as irreparable darn-
age to intemal components
may result.
8. 0-Ring Lubrication
This section applies only to torches withATC con-
nectors.
An o-ring on the Torch ATC Male Connector requires
lubrication on a regular basis, depending on how fre-
quently the torch is disconnectcd and re-connected.
This will allow the o-ring to remain pliable and pro-
vide a proper seal. The o-ring will dry out, bccoming
hard and cracked, if the o-ring lubricant is not used
on a regular basis. This can lead to potential perfor-
mance problems.
It is recommended to apply a very light film of o-
ring lubricant (Catalog # 8-4025) to the o-ring on a
weekly basis.
Manual 0-2880 /
~~~--------------------~
7
