NOTE!
Art #A-03791_AB
DO
NOT
use
other
lubricants
or
greasc,
thcy
may
not
be
designed
to
operate
within
high
temperatures
or
may
contain
"unknown
elements"
that
may
react
with
the
at-
mosphere. This reaction can
leave
contaminants
inside the
torch. Either of these condi-
tions
can
lead
to
inconsistent
performance
or
poor
parts
life.
0-Ring
#R-OS?S

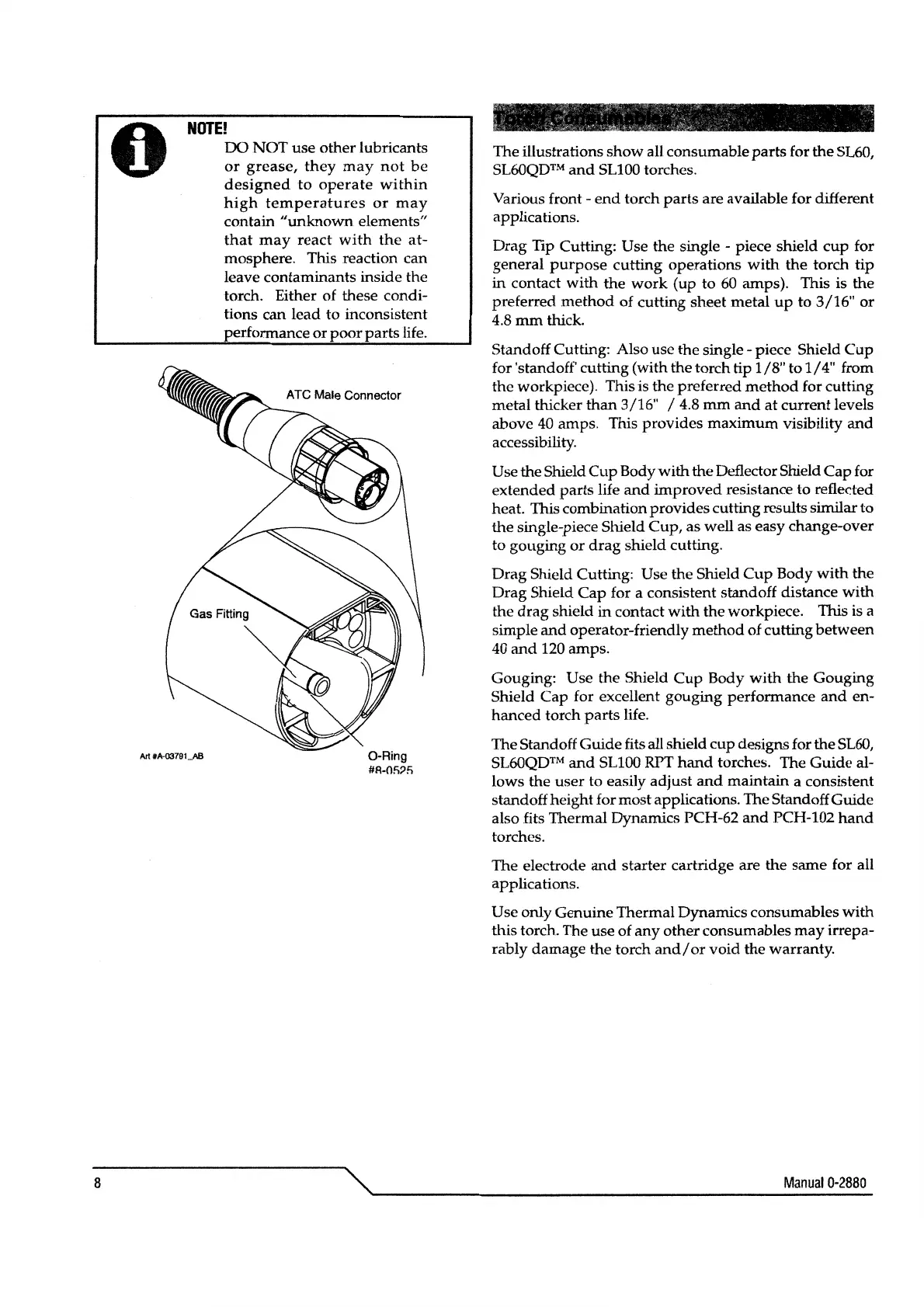

The
illustrations
show
all
consumable
parts
for
the
SL60,
SL60QD™
and
SLlOO
torches.
Various front
-end
torch
parts
are available for different
applications.
Drag
Tip Cutting: Use
the
single-
piece shield
cup
for
general
purpose
cutting
operations
with
the
torch
tip
in
contact
with
the
work
(up
to 60 amps). This is the
preferred
method
of
cutting
sheet
metal
up
to
3/16"
or
4.8
mm
thick.
Standoff Cutting: Also
usc
the
single-
piece Shield
Cup
for 'standoff'
cutting
(with
thetorch
tip
1/8"
to
1/4"
from
the
workpicce). This is
the
preferred
method
for
cutting
metal
thicker
than
3/16"
I 4.8
mm
and
at
current
levels
above 40 amps. This
provides
maximum
visibility
and
accessibility.
Use
the
Shield
Cup
Bodywith
the
Deflector Shield
Cap
for
extended
parts
life
and
improved
resistance to reflected
heat. This combination provides cutting results similar to
the
single-piece Sh:ield
Cup,
as
well as
easy
change-over
to
gouging
or
drag
shield cutting.
Drag
Shield Cutting: Use
the
Shield
Cup
Body
with
the
Drag
Shield
Cap
for a consistent standoff distance
with
the
drag
shield
in
contact
with
the
workpiece. This is a
simple
and
operator-friendly
method
of
cutting
between
40
and
120 amps.
Gouging:
Use
the Shield
Cup
Body
with
the
Gauging
Shield
Cap
for excellent
gouging
performance
and
en-
hanced
torch
parts
life_
The Standoff
Guide
fits all shield
cup
designs for the SL60,
SL60QD™
and
SLlOO
RPT
hand
torches. The
Guide
al-
lows
the
user
to easily
adjust
and
maintain
a consistent
standoff height for
most
applications. The Standoff
Guidc
also fits
Thermal
Dynamics PCH-62
and
PCH-102
hand
torches.
The
electrode
and
starter
cartridge are
the
same
for all
applications.
Use
only
Genuine
Thermal
Dynamics consumables
with
this torch. The use of
any
other
consumables
may
irrepa-
rably
darnage
the
torch
and/
or
void
the
warranty.
'-
Manual
0-2880
'-~----------------------------
