1
Chapter 1. Product Introduction

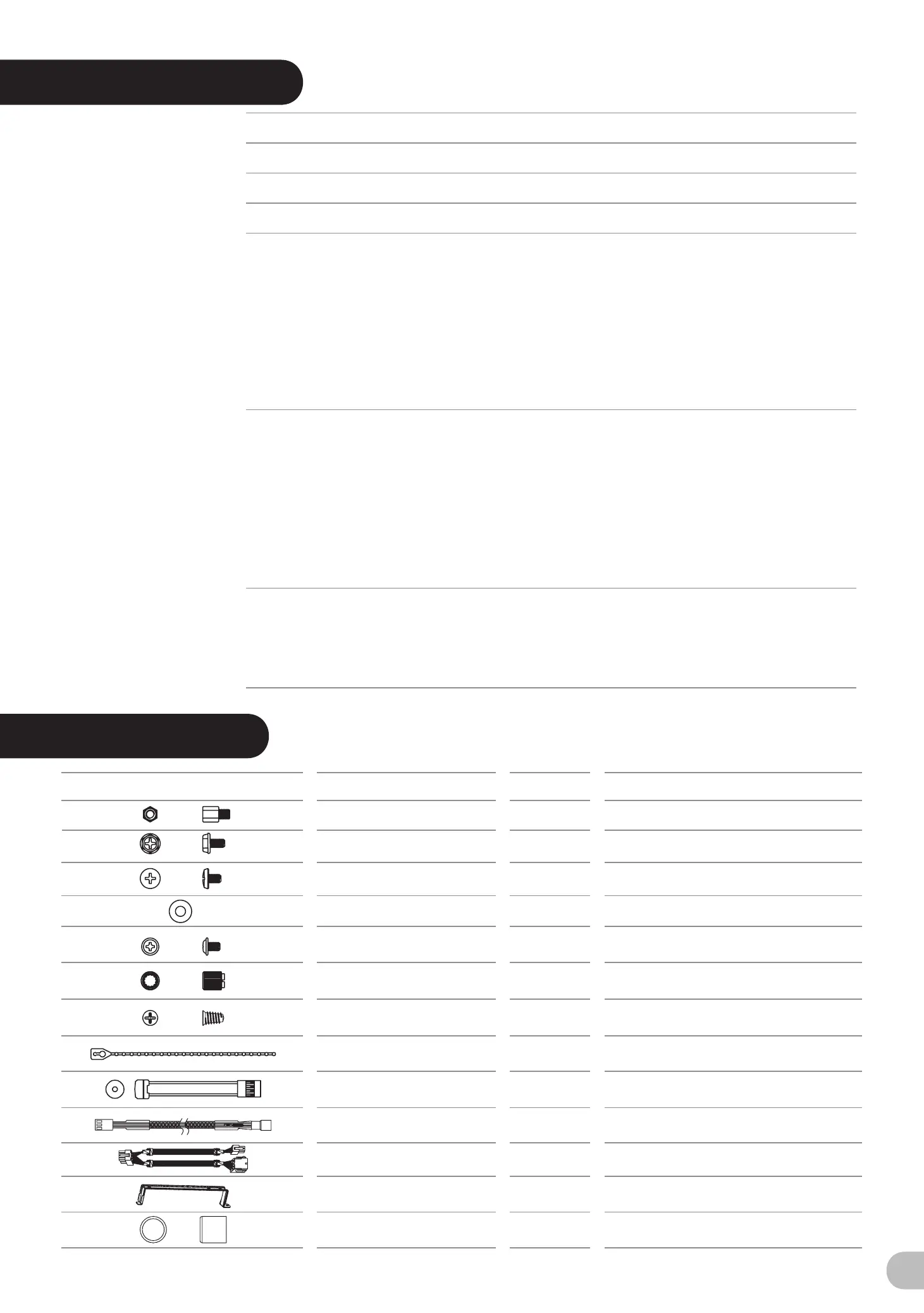

Specification
Accessory
Warning and Notice
1.0
1.1
1.2
01
01
02
Contents
Chapter 2. Installation Guide
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
Side Panels Disassembly
Power Supply Unit (PSU) Installation
Motherboard Installation
5.25" Device Installation
3.5" & 2.5" HDD Installation
PCI Card Installation
Keyboard & Mouse Security Lock Usage
Air Cooling Installation
Liquid Cooling Installation
Filter Installation
04
05
06
07
08
10
11
12
13
15
Chapter3 Leads Installation Guide
Case LED connection
USB 3.0 connection
Audio connection
3.0
3.1
3.2
16
16
16
Specification
Accessory
Screw Ø5 x 12mm
4
4
4
Case Fan
Fan
Fan
PSU
Figure
Parts Name
Cable Tie
Buzzer
Low Noise Cable
8-pin Extension Cable
Fan Bracket
Power Rubber
Screw＃6-32 x 6mm
Screw＃6-32 x 5mm
Stand-off＃6-32 x 6mm
Rubber
Nut Setter
Q'ty
2
4
12
12
1
5
1
1
2
Used for
Cable Management
3.5”HDD
Power
Motherboard Alarm
Power Connector Extension Cable
Motherboard
3.5”HDD
Stand-off
Screw M3 x 5mm
22
Motherboard, 2.5”HDD
Full Tower
Radiator Support
SPCC
Front :
1 x 480mm, 1 x 420mm
Top :
1 x 360mm, 1 x 280mm
Rear :
1 x 120mm, 1 x 140mm
Bottom :
1 x 120mm, 1 x 140mm
Left / Right Side:
1 x 360mm, 1 x 280mm
Side Panel
Transparent Window
Case Type
Dimension (H*W*D) 677 x 250 x 511 mm (26.7 x 9.8 x 20.1 inch)
Material
Fan Support
Clearance
CPU cooler height limitation: 180mm
VGA length limitation: 278mm(with HDD rack)
420mm(without HDD rack)
PSU length limitation: 180mm (With Bottom Fan)
220mm (Without Bottom Fan)
Front :
3 x 120mm, 3 x 140mm, 2 x 200mm
Top :
3 x 120mm, 3 x 140mm, 2 x 200mm
Rear :
1 x 120mm, 1 x 140mm
Bottom :
2 x 120mm, 2 x 140mm
Left / Right Side:
3 x 120mm, 2 x 140mm
