ENGLISH
»

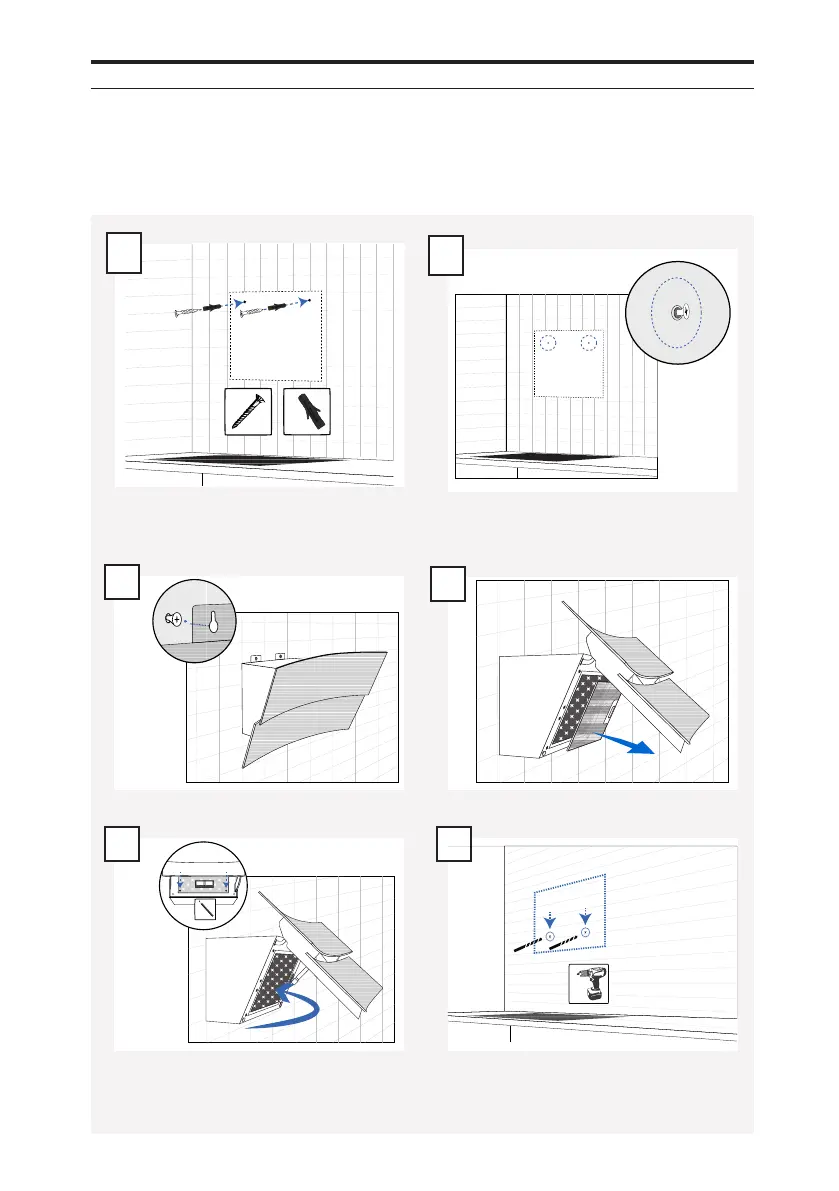

INSTALLATION
Hang the hood on the screws.
Open the glass door and remove the filter.
Mark the position of the two lock-holes
on the wall and then remove the hood
from the wall once again.
Pre-drill the holes and insert the
rawlplugs.
5
6
7 8
Ensure that the rawlplugs and screws are
suitable for the wall material in question
and insert them into the pre-drilled holes.
NOTE: The screws must not be screwed
in further than the hood can be installed.
4
x2
x2
3
x2
x2
