OPERATION OF THE DEVICE

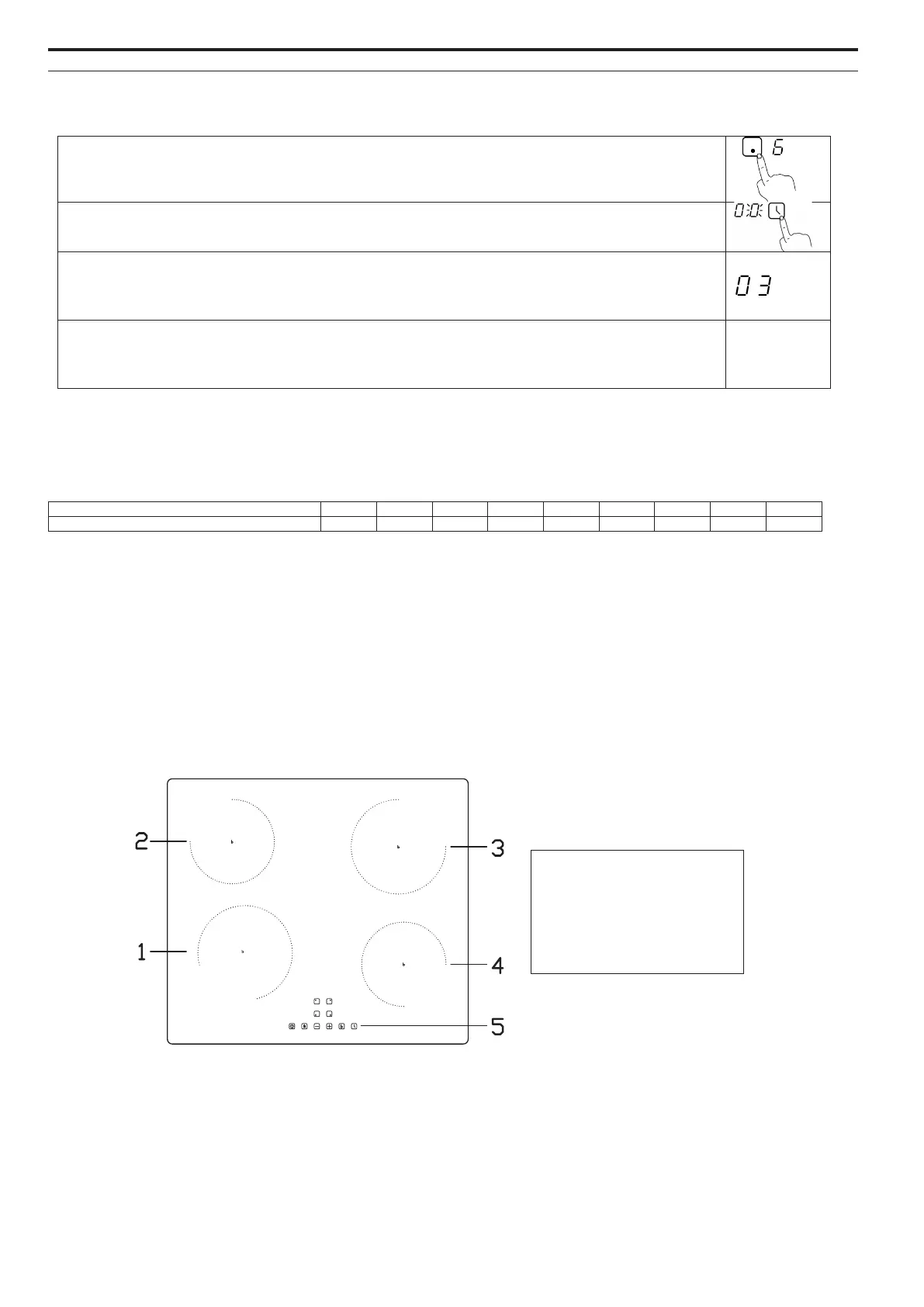

Press the hotplate selector for the hotplate for which the timer is desired.
“0” is now shown in the display.
Set the desired time in minutes using + and -. The two digits must be entered
individually. When the first digit is selected, the timer is pressed again and the second
digit can now be selected.
The timers can be canceled at any time by following the procedure for hob timers from
scratch and setting the time to “0”.
After the time is up, switch o the hob.
Timer function
Automatic switch o of the hob
The hob is equipped with automatic switching o of the hobs, in the event that a hob is not switched o after use. The following table
indicates how long each hotplate is active before it switches o automatically:
When the pot/pan is removed from the cooking zone, it switches o automatically after 1 min.
Overview of power level per cooking zone
The table below shows the maximum eect on each of the zones.
Power level 1 2 3 4 5 6 7 8 9
Default working time (hour) 8 8 8 4 4 4 2 2 2
