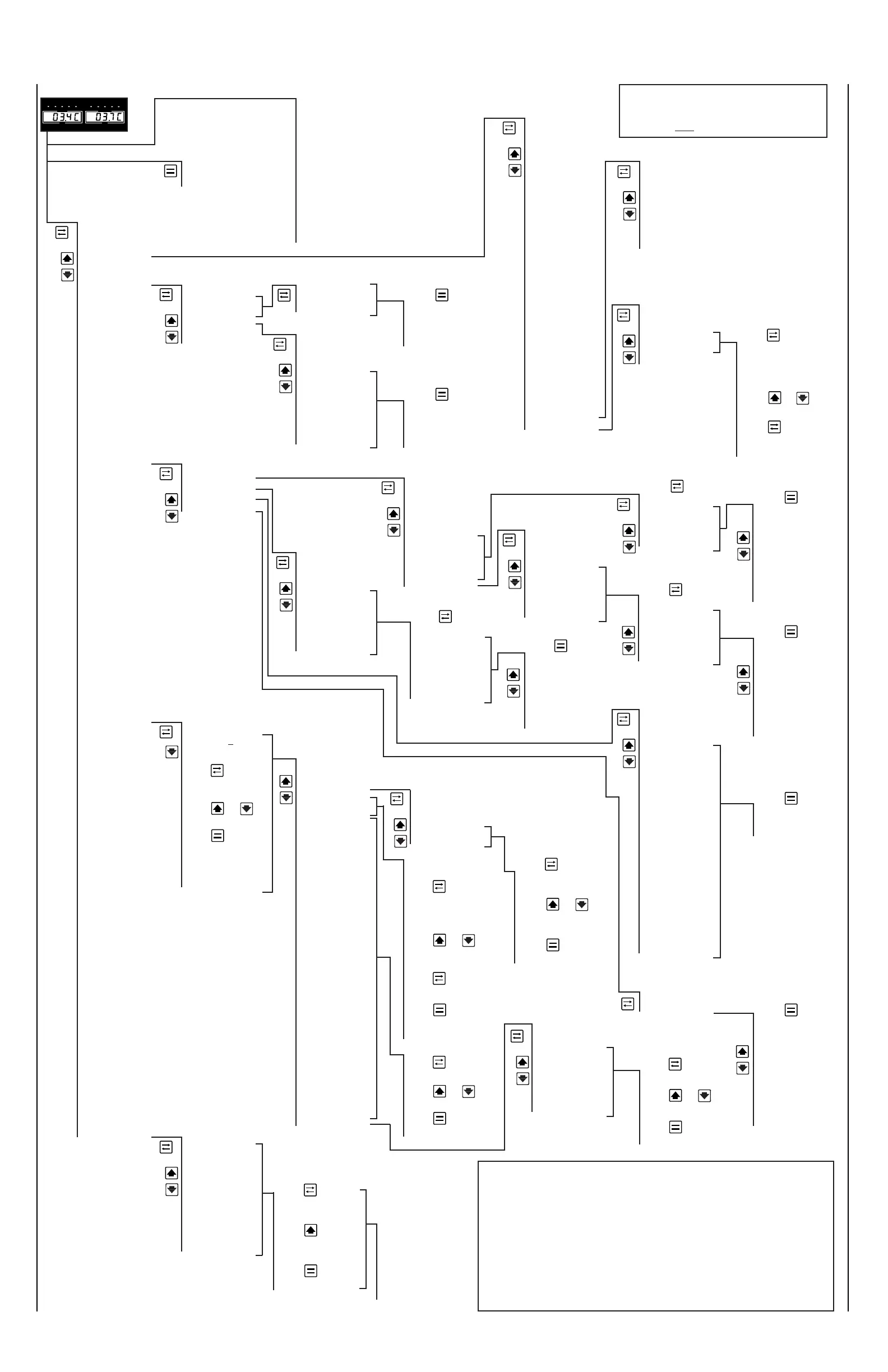

Electrical, Refrigeration and µP-D Menu Flow Diagrams
µµ
P-D Menu Flow Diagram 9-41
CSR-20 & CSR-40, September 1999
Active Option and Pause Mode Displays
— ECON ON
— ECONT XXXX
1
— HUM ON
— DEHUM ON
— BULB ON
— PHASE CHECK
— SENSR CHECK
— SENSR XXX
2
— PAUSE ALMXX
3
Display shows Pause Alarm and options
that are ON in Program menu for 1 second
every 10 seconds. Phase and Sensor
check screens show until test is complete.
Standard Display
Main Menu
— MENU < - - - >
— MENU VIEW
— MENU PTRIP
— MENU TEST
— MENU GUARD
— MENU PRGRM
View Menu
— VIEW < - - - >
— RET XXXXX
— SUP XXXXX
— TD XXXXX
— ECOIL XXXXX
— CCOIL XXXXX
— AMBT XXXXX
— USDA1
4
XXXXX
— USDA2
4
XXXXX
— USDA3
4
XXXXX
— PULP1
5
XXXXX
— PCHUMXXXXX
— PCVAL
6
XXXXX
— VOLTS XXXXX
— HERTZ XXXXX
— AMP1 XXXXX
— AMP2 XXXXX
— AMP3 XXXXX
— AUXV XXXXX
— CLKV XXXXX
— YEAR XXXXX
— MONTHXXXXX
— DAY XXXXX
— TIME XXXXX
— CHS1 XXXXX
— CHRM1XXXXX
— VIEW GRADE
— VIEW LOG
Grade Submenu
— GRADE< - - - >
— RETG XX
— SUPG XX
— ECTG XX
— CCTG XX
— AMTG XX
— SPR5G
5
XX
Log Submenu
— LOG < - - - >
— LOG TEMP
— LOG PTI
Press to enter
Scroll Back display.
Display shows:
SEARC HINGX and
then recent log entry.
Press or to
display log entries.
Press to display
next TEMP or PTI
result.
Program Menu
— PRGRM < - - - >
— USDA OFF
— USDA1 OFF
— USDA2 OFF
— USDA3 OFF
— PULP OFF
— HUMSN OFF
— ECON OFF
— HUMID OFF
— BULB OFF
— PWRED 0
Press to enter
Load display. Left
display FLASHES.
Press to select
ON (or PWRED
value) in right display.
Press to load
option.
• Set calibration for
USDA1, USDA2,
USDA3 and PULP.
• Set HUMSP for
HUMID.
• Set BDFTT and
BEFAN for BULB.
Software
— VERSN XX.XX
— CFG U YYYY
— CFG C ZZ
Test Menu
— TEST < - - - >
— TEST ELECT
— TEST REFRG
— TEST CNTRL
— TEST GEN
Generator Test
— UNIT OFFON
Press to
start refrigeration
unit. Display
shows:
— UNIT ONOFF
— HERTZ XX
— VOLTS XXXX
— AMP1 XXX
— AMP2 XXX
— AMP3 XXX
— UNIT < - - - >
Controller Test
Submenu
— CNTRL < - - - >
— AUTO OFFON
— EFL OFFON
— EFH OFFON
— CFH OFFON
— CPH OFFON
— PS1 OFFON
— PS2 OFFON
— HTR OFFON
— MC 50 OFFON
— MC100 OFFON
— LIV OFFON
— BVS OFFON
— LLS OFFON
— SLS OFFON
— DEHUMOFFON
— RCOMPOFFON
— RDEF OFFON
— RIR OFFON
— RSP OFFON
Press to start
test. Display shows:
— (TEST) ONOFF
— RET XXXXX
— SUP XXXXX
— TD XXXXX
— ECOIL XXXXX
— (TEST) < - - - >
Refrigeration
Test Submenu
— REFRG < - - - >
— REFRG FCHI
— REFRG MC50
— REFRG MC100
— REFRG NULL
— REFRG HEAT
— REFRGDFRST
Press to enter
load test display:
— FCHI OFFON
— MC50 OFFON
— MC100 OFFON
— NULL OFFON
— HEAT OFFON
— DFRSTOFFON
Press to
start test. Display
shows:
— (TEST) ONOFF
Electrical Test
Submenu
— ELECT < - - - >
— VOLTS XXXX
— HERTZ XX
— AMPS HEATR
— AMPS EFL
— AMPS EFH
— AMPS CFH
— AMPS UNIT
Footnotes:
1
ECON ON time shows ONLY if Economy Mode is ON and unit is in Null on Frozen
Load (setpoint -10.0 C [14 F] or Below).
2
SENSR CHECK time shows ONLY when controller performs a sensor check test.
3
PAUSE screen indicates controller has stopped unit operation due to a shutdown
alarm. Controller restarts unit if alarm condition is corrected.
4
Screen shows ONLY if spare sensor is ON in program menu. If USDA option is ON,
ONLY View Menu shows USDA1, USDA2 and USDA3.
5
PULP optional display.
6
PCVAL displays on modulation valve systems. PCCAP displays on KVQ valve systems.
7
Access code is 0007.
8
C/
o
F units shown on the controller display can also be changed by pressing and holding
the
o
C/
o
F key, and then pressing ENTER key.
9
When a unit configuration is entered, a customer configuration MUST also be entered.
Pretrip Menu
— PTRIP < - - - >
— PTRIP ETEST
— PTRIP FTEST
— PTRIP STEST
— ENTER ETEST
or
— ENTER FTEST
Single Test
Submenu
— STEST < - - - >
— ENTER DISPL
— ENTER AMPS
— ENTERSENSR
— ENTER HEAT
— ENTER DFRST
— ENTER COOL
— ENTERECOOL
Press to start
a single pretrip
test. Display
shows test time
remaining.
Press to start
an Extended or
Full Pretrip test.
Display shows test
time remaining.
Press to
start test. Display
shows:
— (TEST) ONOFF
— AMPS1 XXX
— AMPS2 XXX
— AMPS3 XXX
— VOLTS XXXX
— HERTZ XX
— (TEST) < - - - >
Press to enter
load test display:
— HEATROFFON
— EFL OFFON
— EFH OFFON
— CFH OFFON
Press to
start test. Display
shows:
— (TEST) ONOFF
— AMPS1 XXX
— AMPS2 XXX
— AMPS3 XXX
— VOLTS XXXX
— HERTZ XX
— (TEST) < - - - >
Press to enter
load test display:
— FCHI OFFON
— MC50 OFFON
— MC100 OFFON
— HEAT OFFON
— DFRSTOFFON
Unit Amps
Submenu
— UNIT < - - - >
— UNIT FCHI
— UNIT MC50
— UNIT MC100
— UNIT HEAT
— UNIT DFRST
Grade Submenu
— GRADE< - - - >
— RETG XX
— SUPG XX
— ECTG XX
— CCTG XX
— AMTG XX
— SPR5G XX
Press to enter
load grade display.
Press or to
select new grade.
Press to load
new grade.
Guard Submenu
— GMENU < - - - >
— MENU CNFIG
— CIDXX (scroll)
— USNXX (scroll)
— YEAR XXXX
— MONTH XX
— DAY XX
— HOUR XX
— MIN XX
— CHRM1XXXXX
— ONHRMXXXXX
— H1TYP XX
— UHMT1 XX
— UHRM1XXXXX
— H2TYP XX
— UHMT2 XX
— UHRM2XXXXX
— H3TYP XX
— UHMT3 XX
— UHRM3XXXXX
— H4TYP XX
— UHMT4 XXXXX
— UHRM4 XX
— ECMAXXXXXX
— ECMIN XXXXX
— ECONTXXXXX
— DMTCH XX
— DMTFZ XX
— ALOGS XXX
— GLOGS XXX
— C/F
8
X
— MENU GRADE
Guard Menu
— GUARD < - - - >
— GUARD 0 0 0 0
Enter access code
7
.
Press to scroll
cursor to next digit to
right.
Press or to
select number.
Press to enter
access code.
Display shows
GUARD LOAD, then
GMENU <- - - >.
Configuration
Submenu
— CNFIG < - - - >
— CFG U YYYY
9
— CFG C ZZ
Press to enter
load configuration
display.
Press or
to select configura-
tion number.
Press to load
selection.
Scrolling display
shows current ID.
Press to enter
load value display.
Right display flashes
digit to be changed.
Press or to
select new letter (A to
Z) or number (0 to 9).
Press to select
another digit to change.
Press when all
digits are set correctly
to load new ID.
Press to enter
load value display.
Press or to
select new value.
Press to load
new value.
NOTE: The screens that display on the con-
troller are determined by the Unit Configura-
tion and Customer Configuration settings. All
screens are NOT present on all units.
