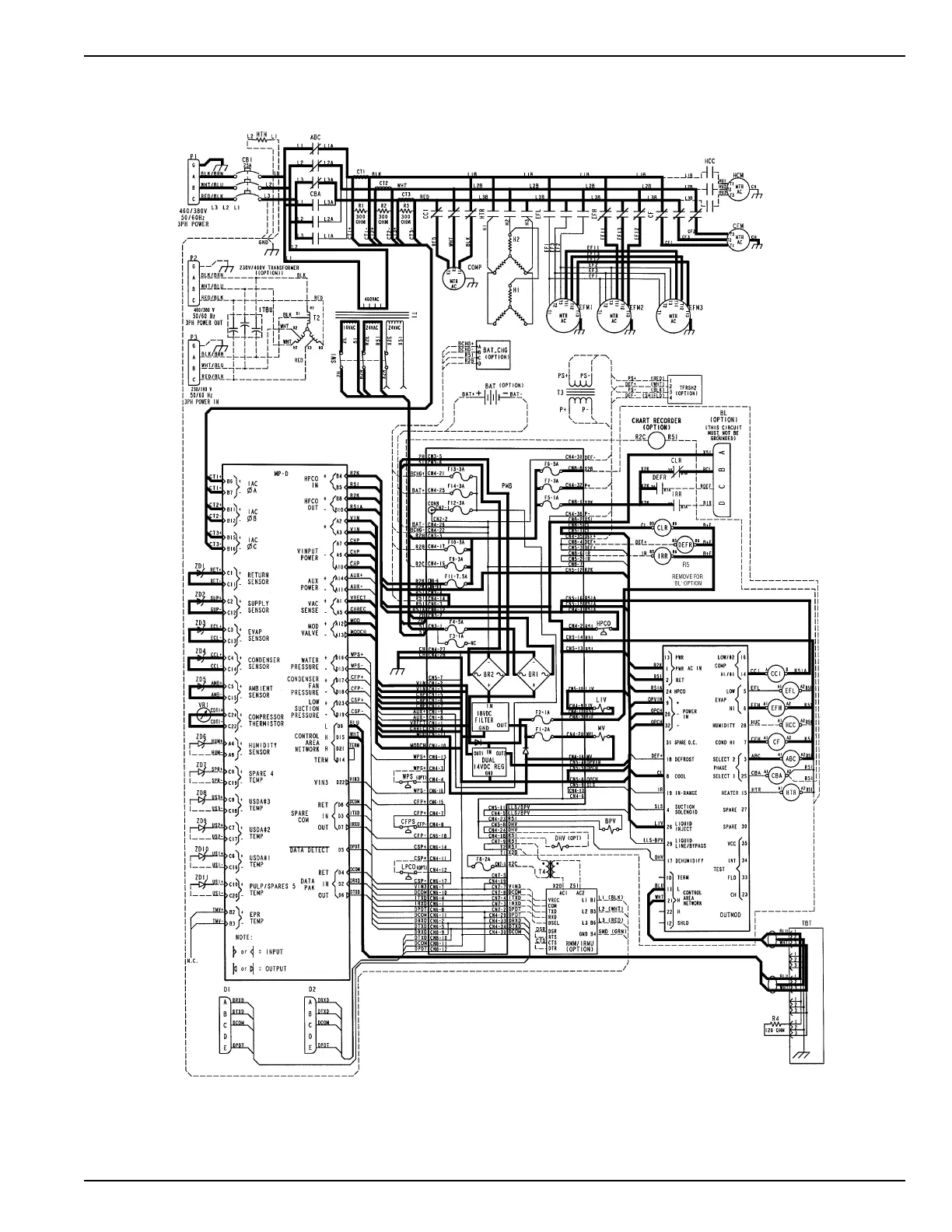

Electrical, Refrigeration and µP-D Menu Flow Diagrams Schematic Circuit Tracings 9-17
1
Typical model shown with three evaporator fans.
2
A complex algorithm will typically turn the condenser fan ON when the compressor discharge temperature is above
50 C (122 F) and increasing, or when the condenser temperature is above 35 C (95 F).
Modulation Mode
1
— Chill Load (Setpoint at -9.9 C [14.1 F] or Above); Condenser Fan ON
2
; Economy Mode
OFF; Temperature Out-of-range
